Magnitude |
2.6 |
| Date & Time (UTC) | 2015-11-15 14:29:28.1 |
| Date & Time (Local) | 1394/8/24 17:59:28.1 |

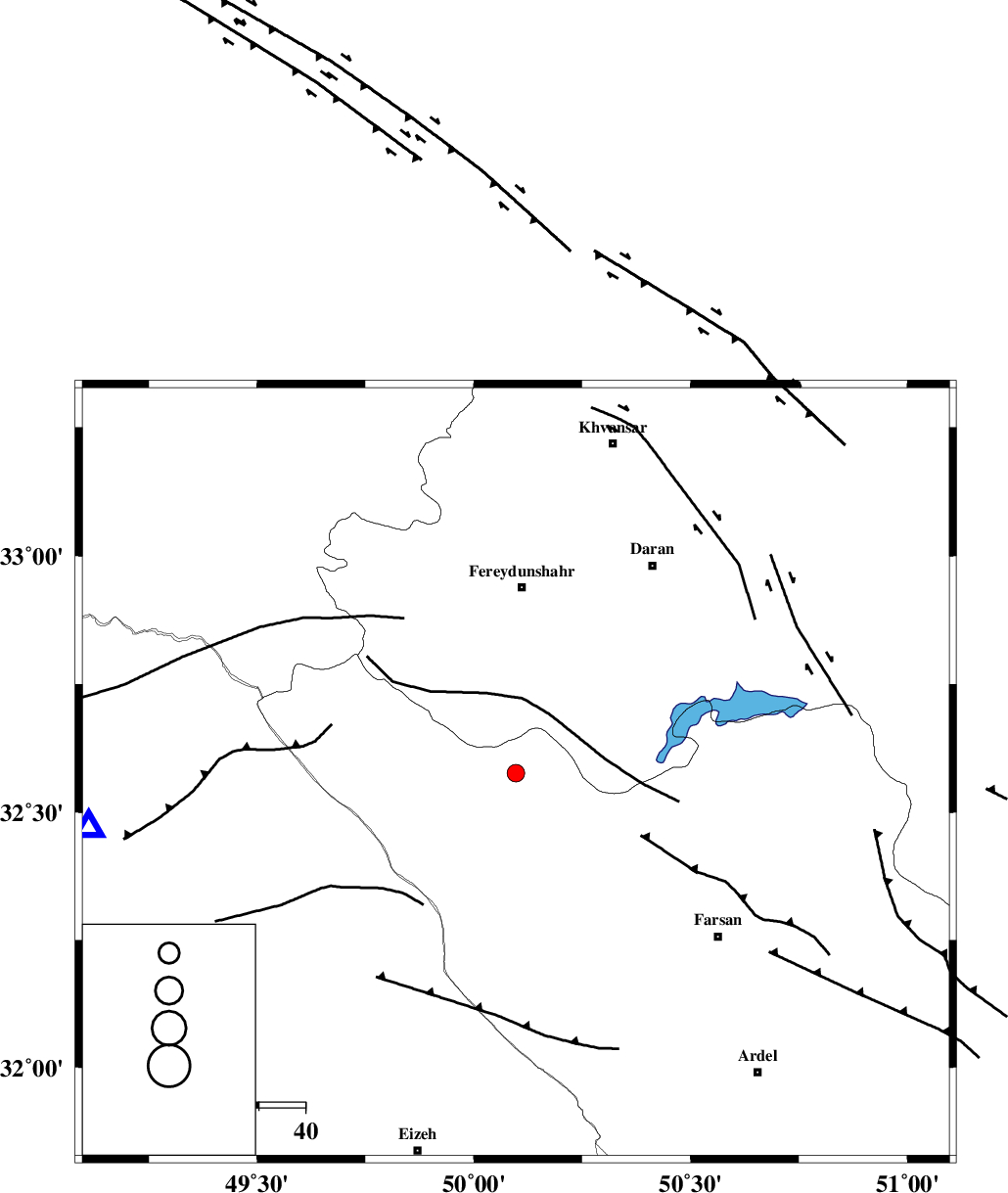

| Location | Lat:32.577 Lon: 50.097 |
| Region | Chaharmahal Bakhtiari Province, 13 km North of Chelgard |
Nearest Cities |
|
| 13 km North of Chelgard, Chaharmahal Bakhtiari Province | |
| 18 km North West of Kukanak, Esfahan Province | |
| 21 km South West of Ghale? sorkh, Esfahan Province | |
| 26 km South East of Durak, Chaharmahal Bakhtiari Province | |
| 31 km West of Faramushjan, Esfahan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 11 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 21 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 102369 | IIEES | ASAO | N | 71.2 | 0.54 | 2015-11-15 14:30:35 | 2015-11-16 09:48:00 | n |
| 102370 | IIEES | ASAO | E | 59.3 | 0.49 | 2015-11-15 14:30:38 | 2015-11-16 09:48:00 | n |
| 102371 | IIEES | GHVR | E | 43.1 | 0.51 | 2015-11-15 14:30:39 | 2015-11-16 09:48:00 | n |
| 102372 | IIEES | GHVR | N | 44.9 | 0.41 | 2015-11-15 14:30:41 | 2015-11-16 09:48:00 | n |
| 102373 | IIEES | NASN | E | 25.1 | 0.44 | 2015-11-15 14:30:44 | 2015-11-16 09:48:00 | n |
| 102374 | IIEES | NASN | N | 25.4 | 0.44 | 2015-11-15 14:30:47 | 2015-11-16 09:48:00 | n |
| 102375 | IIEES | YZKH | N | 7.2 | 0.79 | 2015-11-15 14:31:39 | 2015-11-16 09:48:00 | n |
| 102376 | IIEES | YZKH | E | 8.8 | 0.47 | 2015-11-15 14:31:41 | 2015-11-16 09:48:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ASAO | Z | Pn | E | 2015-11-15 14:30:02 | -0.14 | y | 219 | 358 | |
| IIEES | ASAO | E | Sg | E | 2015-11-15 14:30:30 | 0.06 | y | 219 | 358 | |
| IIEES | GHVR | Z | Pn | E | 2015-11-15 14:30:05 | 0.09 | y | 237 | 26 | |
| IIEES | GHVR | E | Sg | E | 2015-11-15 14:30:35 | -0.03 | y | 237 | 26 | |
| IIEES | NASN | Z | Pn | E | 2015-11-15 14:30:07 | -0.01 | y | 255 | 84 | |
| IIEES | NASN | E | Sg | E | 2015-11-15 14:30:40 | -0.02 | y | 255 | 84 | |
| IIEES | YZKH | Z | Pn | E | 2015-11-15 14:30:28 | 0.07 | y | 423 | 92 |
