Magnitude |
2.8 |
| Date & Time (UTC) | 2016-01-05 18:05:49.8 |
| Date & Time (Local) | 1394/10/15 21:35:49.8 |

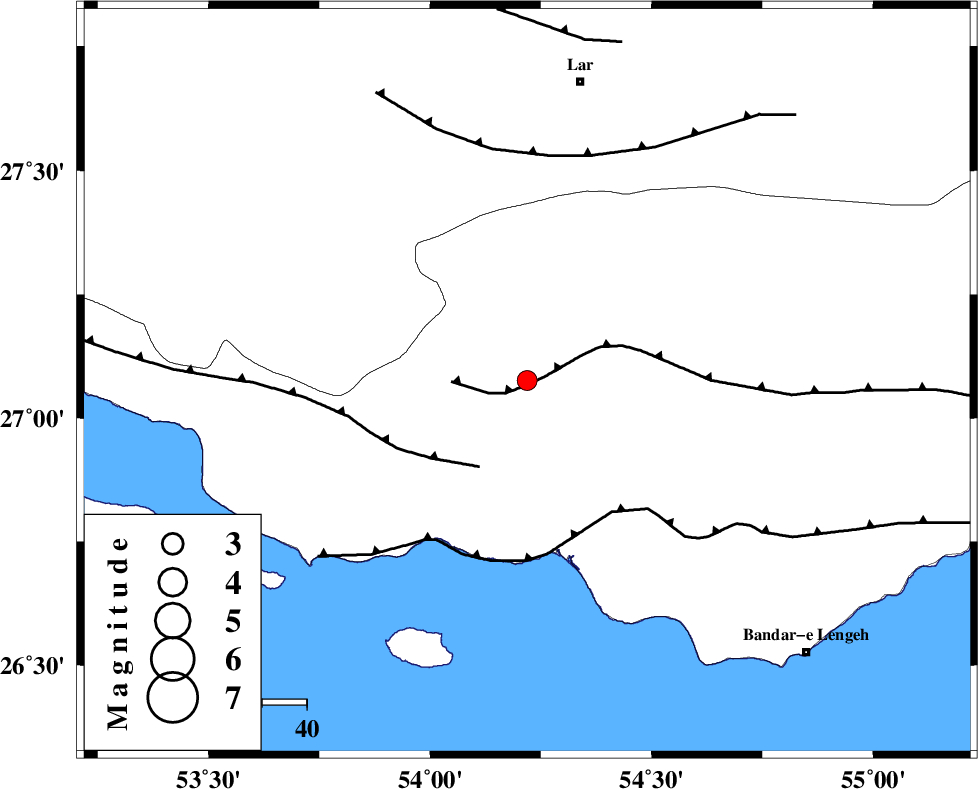

| Location | Lat:27.076 Lon: 54.219 |
| Region | Hormozgan Province, 20 km South-West of Bastak |
Nearest Cities |
|
| 9 km North of Jenah, Hormozgan Province | |
| 20 km South West of Bastak, Hormozgan Province | |
| 49 km East of Ahl, Fars Province | |
| 50 km South East of Bagh, Fars Province | |
| 62 km South East of Ashkenan, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 2 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 22 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 35 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | 7.8 km |
| Error in Longitude | 5 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103618 | IIEES | GHIR | E | 153.4 | 0.48 | 2016-01-05 18:06:47 | 2016-01-06 08:04:00 | n |
| 103619 | IIEES | GHIR | N | 246.5 | 0.48 | 2016-01-05 18:06:47 | 2016-01-06 08:04:00 | n |
| 103620 | IIEES | KRBR | E | 15.7 | 0.45 | 2016-01-05 18:07:45 | 2016-01-06 08:04:00 | n |
| 103621 | IIEES | KRBR | N | 15.9 | 0.57 | 2016-01-05 18:07:56 | 2016-01-06 08:04:00 | n |
| 103622 | IIEES | YZKH | N | 1.8 | 0.49 | 2016-01-05 18:08:16 | 2016-01-06 08:04:00 | n |
| 103623 | IIEES | YZKH | E | 2.4 | 0.49 | 2016-01-05 18:08:42 | 2016-01-06 08:04:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2016-01-05 18:06:19 | 0 | y | 181 | 318 | |
| IIEES | GHIR | N | Sg | E | 2016-01-05 18:06:41 | 0 | y | 181 | 318 | |
| IIEES | KRBR | Z | Pn | E | 2016-01-05 18:06:47 | -0.24 | y | 407 | 37 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-05 18:07:10 | 0.08 | y | 590 | 3 | |
| IIEES | NASN | Z | Pn | E | 2016-01-05 18:07:18 | 0.03 | y | 649 | 348 | |
| IIEES | BSRN | Z | Pn | E | 2016-01-05 18:07:27 | 0.37 | y | 721 | 40 | |
| IIEES | KHMZ | Z | Pn | E | 2016-01-05 18:07:42 | 0.04 | y | 844 | 332 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-05 18:07:51 | -0.19 | y | 920 | 335 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-05 18:08:14 | 0.07 | y | 1104 | 325 |
