Magnitude |
3.5 |
| Date & Time (UTC) | 2016-01-07 22:27:52.8 |
| Date & Time (Local) | 1394/10/18 01:57:52.8 |
| Location | Lat:31.923 Lon: 50.253 |
| Region | Chaharmahal Bakhtiari Province, 39 km -West of Ardel |
Nearest Cities |
|
| 20 km North of Dehdez, Khoozestan Province | |
| 33 km South West of Rostamabad, Chaharmahal Bakhtiari Province | |
| 33 km North West of Dupelan, Chaharmahal Bakhtiari Province | |
| 34 km North West of Sarkhun, Chaharmahal Bakhtiari Province | |
| 37 km North East of Izeh, Khoozestan Province | |
| Depth | 17 km |
| Agency | |

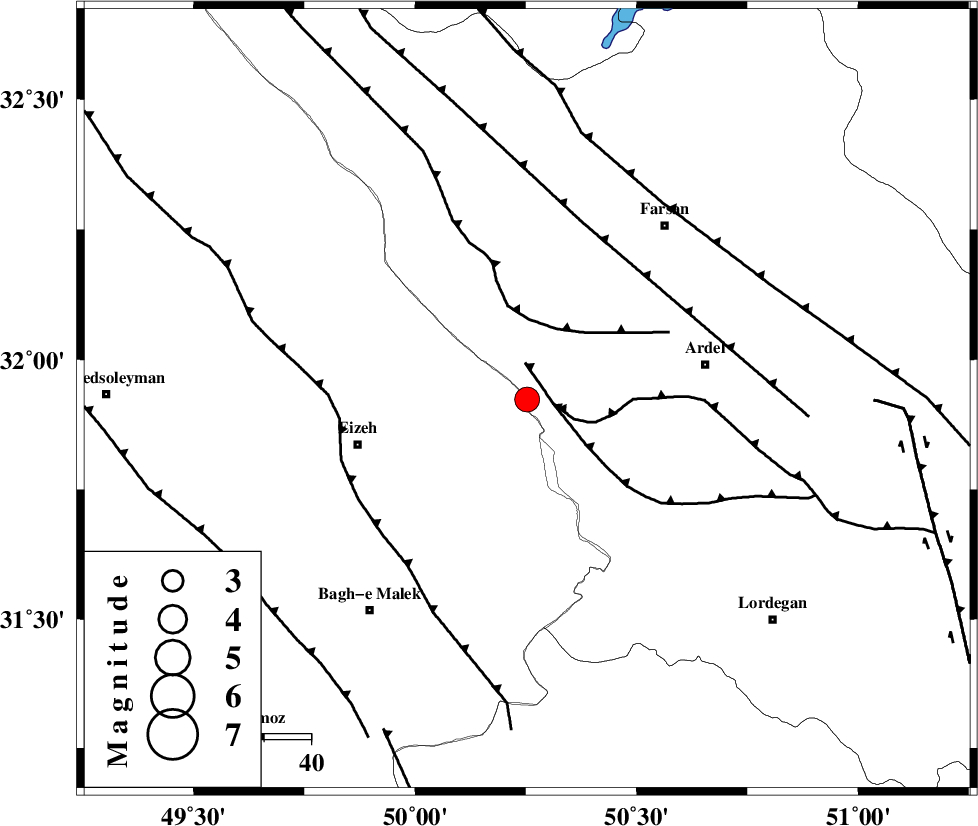

Faults within 150 km: |
|
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 6 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 6 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 16 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | 4 km |
| Error in Longitude | 7 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103640 | IIEES | ASAO | N | 145.2 | 0.65 | 2016-01-07 22:29:17 | 2016-01-09 08:28:00 | n |
| 103641 | IIEES | ASAO | E | 124.9 | 0.46 | 2016-01-07 22:29:27 | 2016-01-09 08:28:00 | n |
| 103642 | IIEES | GHVR | E | 171.5 | 0.63 | 2016-01-07 22:29:24 | 2016-01-09 08:28:00 | n |
| 103643 | IIEES | DAMV | N | 49.3 | 0.6 | 2016-01-07 22:30:04 | 2016-01-09 08:28:00 | n |
| 103644 | IIEES | DAMV | E | 51.6 | 0.55 | 2016-01-07 22:30:08 | 2016-01-09 08:28:00 | n |
| 103645 | IIEES | THKV | N | 36.4 | 0.42 | 2016-01-07 22:30:04 | 2016-01-09 08:28:00 | n |
| 103646 | IIEES | THKV | E | 42.9 | 0.57 | 2016-01-07 22:30:08 | 2016-01-09 08:28:00 | n |
| 103647 | IIEES | CHTH | E | 30.5 | 0.56 | 2016-01-07 22:30:07 | 2016-01-09 08:28:00 | n |
| 103648 | IIEES | GHIR | E | 41.6 | 0.46 | 2016-01-07 22:29:55 | 2016-01-09 08:28:00 | n |
| 103649 | IIEES | GHIR | N | 47.9 | 0.46 | 2016-01-07 22:30:03 | 2016-01-09 08:28:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-01-07 22:28:24 | -2.02 | n | 4 | 203 | 352 |
| IIEES | KHMZ | N | Sg | E | 2016-01-07 22:28:50 | 0 | y | 203 | 352 | |
| IIEES | NASN | Z | Pn | E | 2016-01-07 22:28:32 | 0.08 | y | 259 | 67 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-07 22:28:37 | 0.35 | y | 292 | 356 | |
| IIEES | GHVR | Z | Pn | E | 2016-01-07 22:28:37 | -0.25 | y | 298 | 18 | |
| IIEES | AHRM | Z | Pn | E | 2016-01-07 22:28:46 | 2.91 | n | 4 | 353 | 163 |
| IIEES | YZKH | Z | Pn | E | 2016-01-07 22:28:51 | 0.23 | y | 413 | 82 | |
| IIEES | DAMV | Z | Pn | E | 2016-01-07 22:28:55 | 0.13 | y | 441 | 21 | |
| IIEES | THKV | Z | Pn | E | 2016-01-07 22:28:56 | 0.26 | y | 447 | 7 | |
| IIEES | CHTH | Z | Pn | E | 2016-01-07 22:28:55 | -0.62 | y | 449 | 10 | |
| IIEES | GHIR | Z | Pn | E | 2016-01-07 22:29:00 | -0.08 | y | 482 | 146 | |
| IIEES | ZNJK | Z | Pn | E | 2016-01-07 22:29:07 | -1.08 | n | 4 | 546 | 345 |
| IIEES | KRBR | Z | Pn | E | 2016-01-07 22:29:22 | -0.15 | y | 658 | 107 | |
| IIEES | TABS | Z | Pn | E | 2016-01-07 22:29:23 | -0.16 | y | 671 | 72 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-07 22:29:26 | -0.16 | y | 699 | 48 | |
| IIEES | MRVT | Z | Pn | E | 2016-01-07 22:29:46 | 2.97 | n | 4 | 831 | 38 |
| IIEES | BSRN | Z | Pn | E | 2016-01-07 22:29:44 | 0.29 | y | 839 | 87 |
