Magnitude |
2.7 |
| Date & Time (UTC) | 2016-01-10 06:12:08.3 |
| Date & Time (Local) | 1394/10/20 09:42:08.3 |
| Location | Lat:32.759 Lon: 49.851 |
| Region | Esfahan Province, 31 km South-West of Fereydunshahr |
Nearest Cities |
|
| 7 km North of Durak, Chaharmahal Bakhtiari Province | |
| 10 km of Masir, Esfahan Province | |
| 24 km South West of Sibak, Esfahan Province | |
| 31 km South West of Fereydunshahr, Esfahan Province | |
| 35 km North West of Ghale? sorkh, Esfahan Province | |
| Depth | 14 km |
| Agency | |

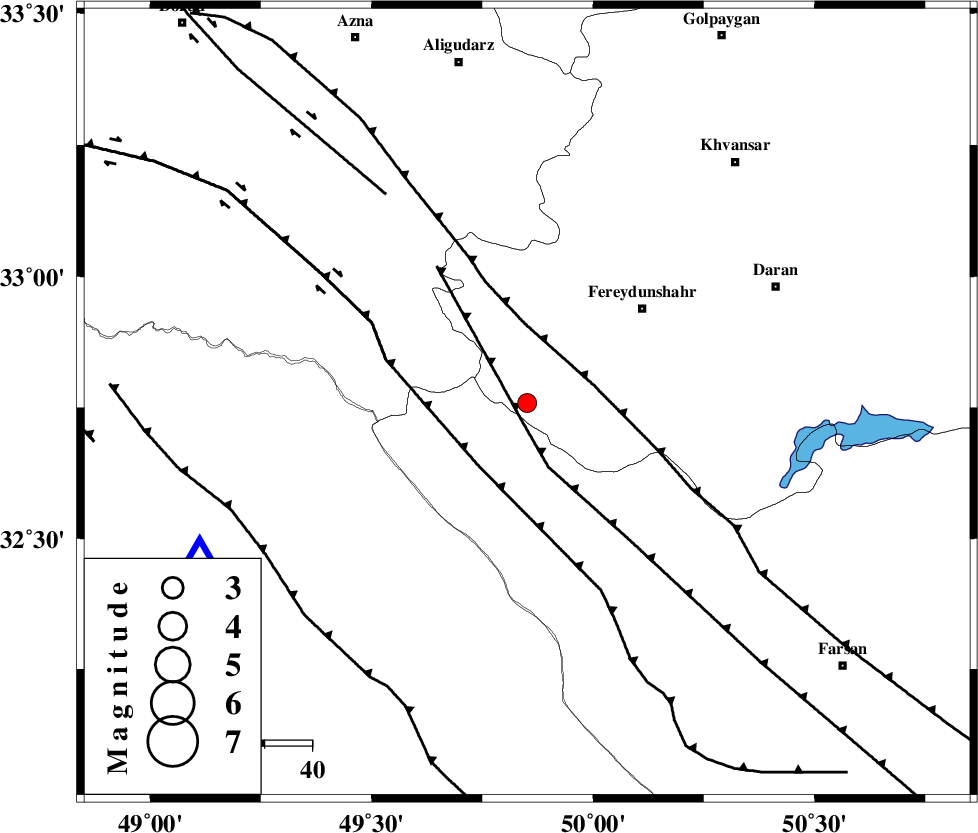

Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 5 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 15 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 17 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | 7.3 km |
| Error in Longitude | 7 km |
| Error in Depth | 11.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103682 | IIEES | KHMZ | N | 97 | 0.59 | 2016-01-10 06:12:52 | 2016-01-10 07:40:00 | n |
| 103683 | IIEES | ASAO | E | 71.7 | 0.62 | 2016-01-10 06:13:16 | 2016-01-10 07:40:00 | n |
| 103684 | IIEES | ASAO | N | 72.8 | 0.53 | 2016-01-10 06:13:26 | 2016-01-10 07:40:00 | n |
| 103685 | IIEES | GHVR | N | 37.3 | 0.42 | 2016-01-10 06:13:22 | 2016-01-10 07:40:00 | n |
| 103686 | IIEES | GHVR | E | 84.7 | 0.68 | 2016-01-10 06:13:27 | 2016-01-10 07:40:00 | n |
| 103687 | IIEES | NASN | E | 45.2 | 0.5 | 2016-01-10 06:13:31 | 2016-01-10 07:40:00 | n |
| 103688 | IIEES | NASN | N | 26.7 | 0.37 | 2016-01-10 06:13:33 | 2016-01-10 07:40:00 | n |
| 103689 | IIEES | SNGE | N | 26.3 | 0.64 | 2016-01-10 06:14:21 | 2016-01-10 07:40:00 | n |
| 103690 | IIEES | THKV | E | 15.3 | 0.59 | 2016-01-10 06:13:59 | 2016-01-10 07:40:00 | n |
| 103691 | IIEES | THKV | N | 15.5 | 0.74 | 2016-01-10 06:14:09 | 2016-01-10 07:40:00 | n |
| 103692 | IIEES | CHTH | E | 10.3 | 0.45 | 2016-01-10 06:14:00 | 2016-01-10 07:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-01-10 06:12:25 | -0.89 | y | 109 | 5 | |
| IIEES | ASAO | Z | Pg | E | 2016-01-10 06:12:41 | 0.2 | y | 199 | 5 | |
| IIEES | GHVR | Z | Pn | E | 2016-01-10 06:12:47 | 2.97 | n | 4 | 231 | 34 |
| IIEES | NASN | Z | Pn | E | 2016-01-10 06:12:50 | 0.2 | y | 277 | 88 | |
| IIEES | NASN | N | Sg | E | 2016-01-10 06:13:26 | -0.04 | y | 277 | 88 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-10 06:13:11 | 12.52 | n | 4 | 347 | 319 |
| IIEES | THKV | Z | Pn | E | 2016-01-10 06:13:05 | 4.58 | n | 4 | 363 | 15 |
| IIEES | CHTH | Z | Pn | E | 2016-01-10 06:13:03 | 1.97 | n | 4 | 368 | 18 |
| IIEES | ZNJK | Z | Pn | E | 2016-01-10 06:13:12 | 0.75 | y | 447 | 346 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-10 06:13:11 | 0.07 | y | 447 | 94 | |
| IIEES | AHRM | Z | Pn | E | 2016-01-10 06:13:11 | -0.33 | y | 453 | 162 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-10 06:13:39 | 0.5 | y | 671 | 56 | |
| IIEES | TABS | Z | Pn | E | 2016-01-10 06:13:40 | -0.12 | y | 685 | 80 |
