Magnitude |
2.9 |
| Date & Time (UTC) | 2016-01-06 13:14:03.3 |
| Date & Time (Local) | 1394/10/16 16:44:03.3 |

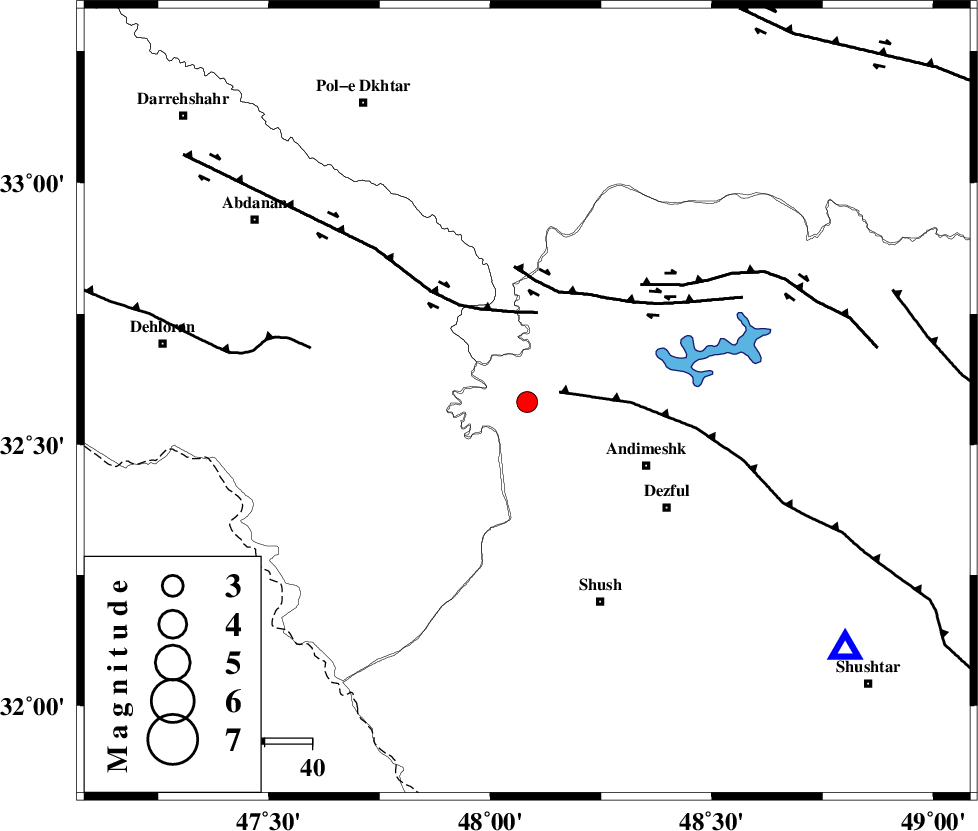

| Location | Lat:32.582 Lon: 48.083 |
| Region | Khoozestan Province, 29 km North-West of Andimeshk |
Nearest Cities |
|
| 19 km West of Hoseinieh, Khoozestan Province | |
| 24 km South West of Bidruyeh, Khoozestan Province | |
| 29 km North West of Andimeshk, Khoozestan Province | |
| 31 km South West of Sorkhakan, Khoozestan Province | |
| 37 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 24 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 5.1 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103719 | IIEES | KHMZ | N | 68.7 | 0.75 | 2016-01-06 13:15:17 | 2016-01-10 10:36:00 | n |
| 103720 | IIEES | ASAO | E | 57 | 0.56 | 2016-01-06 13:15:31 | 2016-01-10 10:36:00 | n |
| 103721 | IIEES | ASAO | N | 71.4 | 0.61 | 2016-01-06 13:15:33 | 2016-01-10 10:36:00 | n |
| 103722 | IIEES | GHVR | E | 23 | 0.51 | 2016-01-06 13:15:55 | 2016-01-10 10:36:00 | n |
| 103723 | IIEES | GHVR | N | 13.8 | 0.62 | 2016-01-06 13:15:57 | 2016-01-10 10:36:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-01-06 13:14:39 | -0.05 | y | 217 | 53 | |
| IIEES | KHMZ | N | Sg | E | 2016-01-06 13:15:05 | 0.09 | y | 217 | 53 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-06 13:14:46 | 0.37 | y | 283 | 39 | |
| IIEES | ASAO | E | Sg | E | 2016-01-06 13:15:23 | -0.12 | y | 283 | 39 | |
| IIEES | GHVR | Z | Pn | E | 2016-01-06 13:14:57 | 1.84 | n | 4 | 361 | 54 |
| IIEES | NASN | Z | Pn | E | 2016-01-06 13:15:06 | 0.33 | y | 444 | 86 | |
| IIEES | ZNJK | Z | Pn | E | 2016-01-06 13:15:07 | -0.1 | y | 457 | 7 | |
| IIEES | DAMV | Z | Pn | E | 2016-01-06 13:15:12 | -0.16 | y | 493 | 46 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-06 13:15:26 | -0.49 | y | 612 | 90 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-06 13:15:53 | -0.26 | y | 823 | 60 |
