Magnitude |
2.6 |
| Date & Time (UTC) | 2016-01-12 01:42:58.4 |
| Date & Time (Local) | 1394/10/22 05:12:58.4 |
| Location | Lat:31.51 Lon: 49.726 |
| Region | Khoozestan Province, 16 km -West of Bagh Malek |
Nearest Cities |
|
| 7 km North of Midavood-e sofla, Khoozestan Province | |
| 16 km West of Bagh Malek, Khoozestan Province | |
| 18 km East of Jaru, Khoozestan Province | |
| 20 km North East of Haftgol, Khoozestan Province | |
| 21 km South West of Ghaleh tal, Khoozestan Province | |
| Depth | 18 km |
| Agency | |

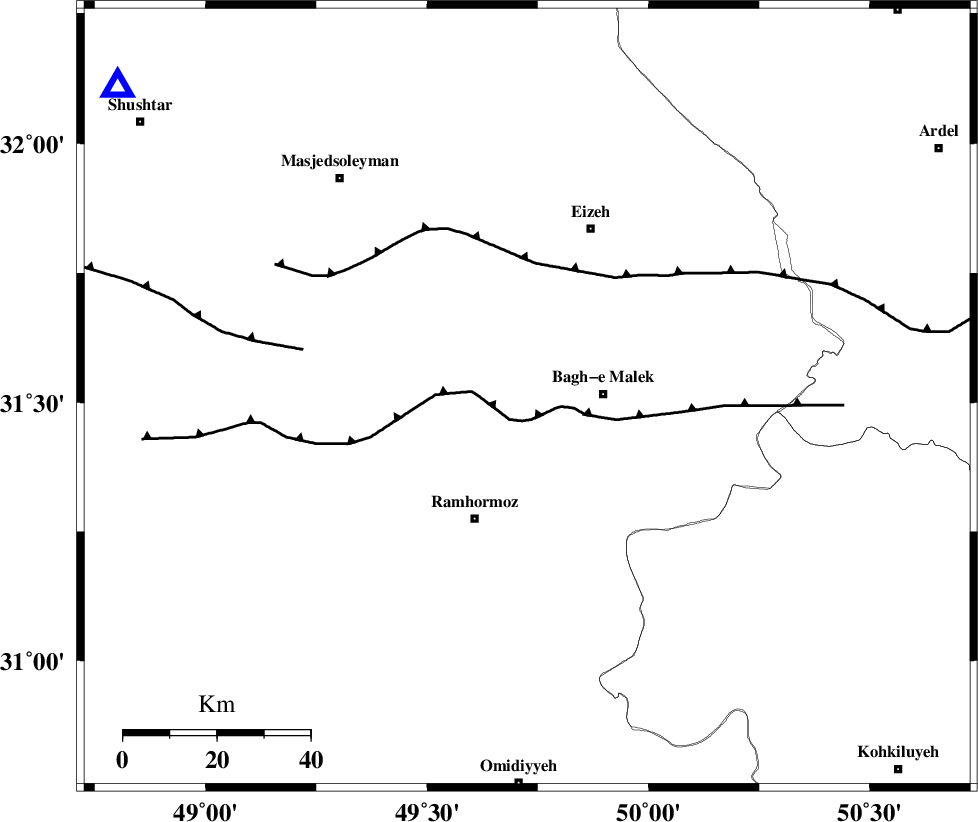

Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 5 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 25 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 31 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 9.2 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103736 | IIEES | KHMZ | N | 18.6 | 0.65 | 2016-01-12 01:44:18 | 2016-01-12 06:20:00 | n |
| 103737 | IIEES | AHRM | E | 26.2 | 0.45 | 2016-01-12 01:44:37 | 2016-01-12 06:20:00 | n |
| 103738 | IIEES | AHRM | N | 21.8 | 0.57 | 2016-01-12 01:44:37 | 2016-01-12 06:20:00 | n |
| 103739 | IIEES | ASAO | N | 9.7 | 0.69 | 2016-01-12 01:44:48 | 2016-01-12 06:20:00 | n |
| 103740 | IIEES | ASAO | E | 9 | 0.53 | 2016-01-12 01:44:51 | 2016-01-12 06:20:00 | n |
| 103741 | IIEES | GHVR | E | 11.2 | 0.52 | 2016-01-12 01:44:55 | 2016-01-12 06:20:00 | n |
| 103742 | IIEES | SNGE | N | 5 | 0.42 | 2016-01-12 01:45:36 | 2016-01-12 06:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-01-12 01:43:36 | -0.25 | y | 248 | 5 | |
| IIEES | AHRM | Z | Pn | E | 2016-01-12 01:43:46 | 0.11 | y | 330 | 152 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-12 01:43:48 | 0.2 | y | 338 | 5 | |
| IIEES | ASAO | E | Sg | E | 2016-01-12 01:44:33 | 0.12 | y | 338 | 5 | |
| IIEES | GHVR | Z | Pn | E | 2016-01-12 01:43:50 | -0.09 | y | 359 | 23 | |
| IIEES | GHVR | E | Sg | E | 2016-01-12 01:44:38 | -0.06 | y | 359 | 23 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-12 01:44:10 | 8.06 | n | 4 | 455 | 331 |
| IIEES | YZKH | Z | P | E | 2016-01-12 01:44:01 | -2.87 | n | 4 | 470 | 77 |
