Magnitude |
2.7 |
| Date & Time (UTC) | 2016-01-22 00:55:20.8 |
| Date & Time (Local) | 1394/11/2 04:25:20.8 |

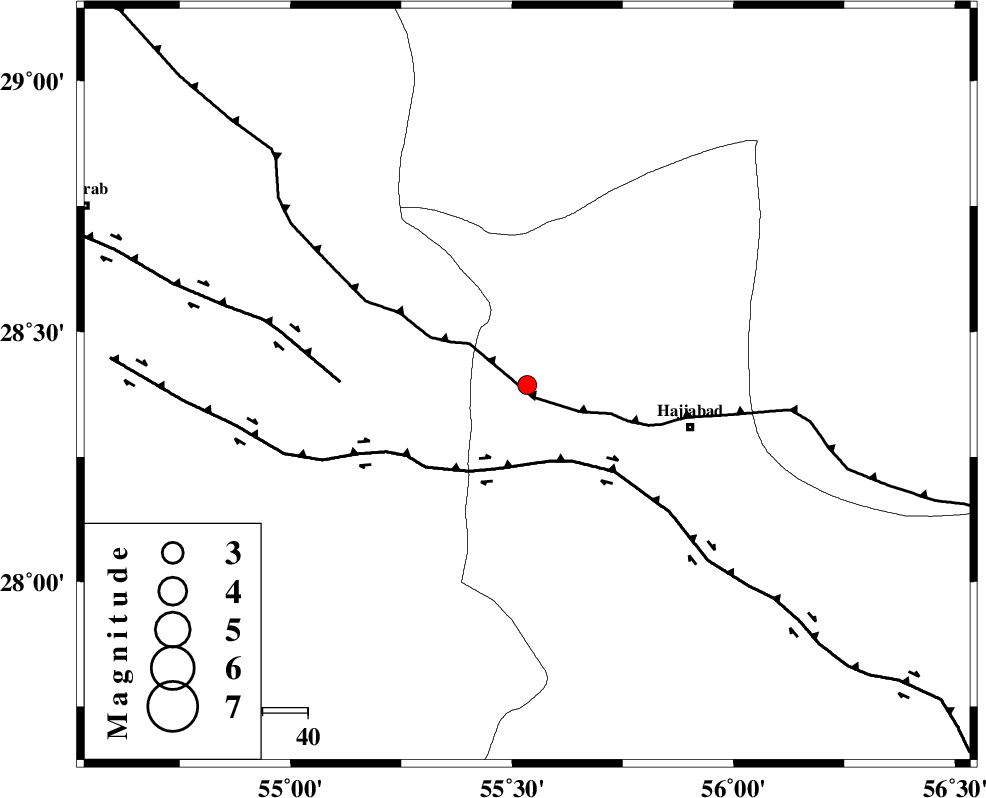

| Location | Lat:28.393 Lon: 55.534 |
| Region | Hormozgan Province, 37 km -West of Hajiabad |
Nearest Cities |
|
| 27 km South East of Tal bargah, Fars Province | |
| 34 km North East of Doborji, Fars Province | |
| 37 km North West of Hajiabad, Hormozgan Province | |
| 40 km North East of Fadami, Fars Province | |
| 45 km East of Rostaq, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 3 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 18 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 41 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | 4 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103877 | IIEES | KRBR | E | 71.6 | 0.53 | 2016-01-22 00:56:25 | 2016-01-23 09:09:00 | n |
| 103878 | IIEES | KRBR | N | 78.7 | 0.57 | 2016-01-22 00:56:31 | 2016-01-23 09:09:00 | n |
| 103879 | IIEES | GHIR | N | 30 | 0.52 | 2016-01-22 00:56:42 | 2016-01-23 09:09:00 | n |
| 103880 | IIEES | GHIR | E | 27 | 0.5 | 2016-01-22 00:56:57 | 2016-01-23 09:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2016-01-22 00:55:52 | -2.48 | n | 4 | 213 | 34 |
| IIEES | KRBR | N | Sg | E | 2016-01-22 00:56:21 | 0 | y | 213 | 34 | |
| IIEES | GHIR | Z | Pn | E | 2016-01-22 00:55:59 | 0.06 | y | 250 | 268 | |
| IIEES | AHRM | Z | Pn | E | 2016-01-22 00:56:20 | -0.06 | y | 418 | 278 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-22 00:56:24 | -0.05 | y | 452 | 349 | |
| IIEES | BSRN | Z | Pn | E | 2016-01-22 00:56:33 | 0.11 | y | 526 | 40 | |
| IIEES | ZHSF | Z | Pn | E | 2016-01-22 00:56:34 | -0.07 | y | 528 | 74 |
