Magnitude |
3.8 |
| Date & Time (UTC) | 2016-01-22 02:38:06.7 |
| Date & Time (Local) | 1394/11/2 06:08:06.7 |

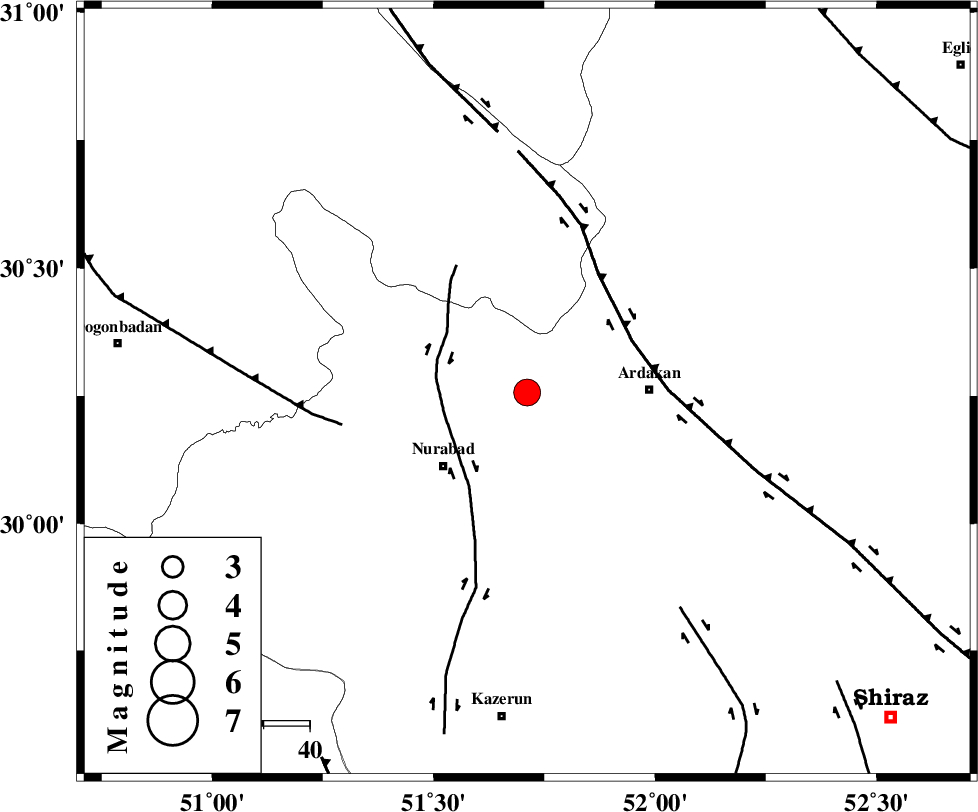

| Location | Lat:30.257 Lon: 51.711 |
| Region | Fars Province, 27 km -West of Ardakan |
Nearest Cities |
|
| 19 km North East of Masiri, Fars Province | |
| 24 km North East of Nurabad, Fars Province | |
| 25 km North East of Fahlian-e olia, Fars Province | |
| 26 km North East of Gachgaran, Fars Province | |
| 26 km South West of Kamhar, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 19 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 25 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 41 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | 3 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103881 | IIEES | AHRM | N | 1662 | 0.42 | 2016-01-22 02:38:56 | 2016-01-23 09:09:00 | n |
| 103882 | IIEES | AHRM | E | 1237.9 | 0.42 | 2016-01-22 02:38:56 | 2016-01-23 09:09:00 | n |
| 103883 | IIEES | GHIR | N | 786.9 | 0.42 | 2016-01-22 02:39:22 | 2016-01-23 09:09:00 | n |
| 103884 | IIEES | GHIR | E | 411.4 | 0.66 | 2016-01-22 02:39:27 | 2016-01-23 09:09:00 | n |
| 103885 | IIEES | KRBR | E | 46 | 0.71 | 2016-01-22 02:40:39 | 2016-01-23 09:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2016-01-22 02:38:33 | 0.04 | y | 159 | 195 | |
| IIEES | GHIR | Z | Pn | E | 2016-01-22 02:38:43 | -2 | n | 4 | 251 | 150 |
| IIEES | GHIR | N | Sg | E | 2016-01-22 02:39:17 | -0.49 | y | 251 | 150 | |
| IIEES | NASN | Z | Pn | E | 2016-01-22 02:38:52 | 0.49 | y | 300 | 20 | |
| IIEES | NASN | N | Sg | E | 2016-01-22 02:39:30 | -0.91 | y | 300 | 20 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-22 02:39:00 | 0.71 | y | 362 | 48 | |
| IIEES | KHMZ | Z | Pn | E | 2016-01-22 02:39:06 | -0.24 | y | 420 | 337 | |
| IIEES | KRBR | Z | Pn | E | 2016-01-22 02:39:15 | -0.07 | y | 488 | 92 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-22 02:39:16 | -0.03 | y | 502 | 342 | |
| IIEES | DAMV | Z | Pn | E | 2016-01-22 02:39:28 | -0.36 | y | 596 | 2 | |
| IIEES | CHTH | Z | Pn | E | 2016-01-22 02:39:32 | -0.21 | y | 629 | 355 | |
| IIEES | TABS | Z | Pn | E | 2016-01-22 02:39:34 | 0.86 | y | 635 | 52 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-22 02:39:34 | -3.42 | n | 4 | 674 | 324 |
| IIEES | BSRN | Z | Pn | E | 2016-01-22 02:39:45 | 0.12 | y | 732 | 73 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-22 02:39:48 | 0.77 | y | 754 | 31 | |
| IIEES | MRVT | Z | Pn | E | 2016-01-22 02:40:08 | 0.01 | y | 915 | 25 |
