Magnitude |
3.4 |
| Date & Time (UTC) | 2016-01-22 20:35:39.5 |
| Date & Time (Local) | 1394/11/3 00:05:39.5 |

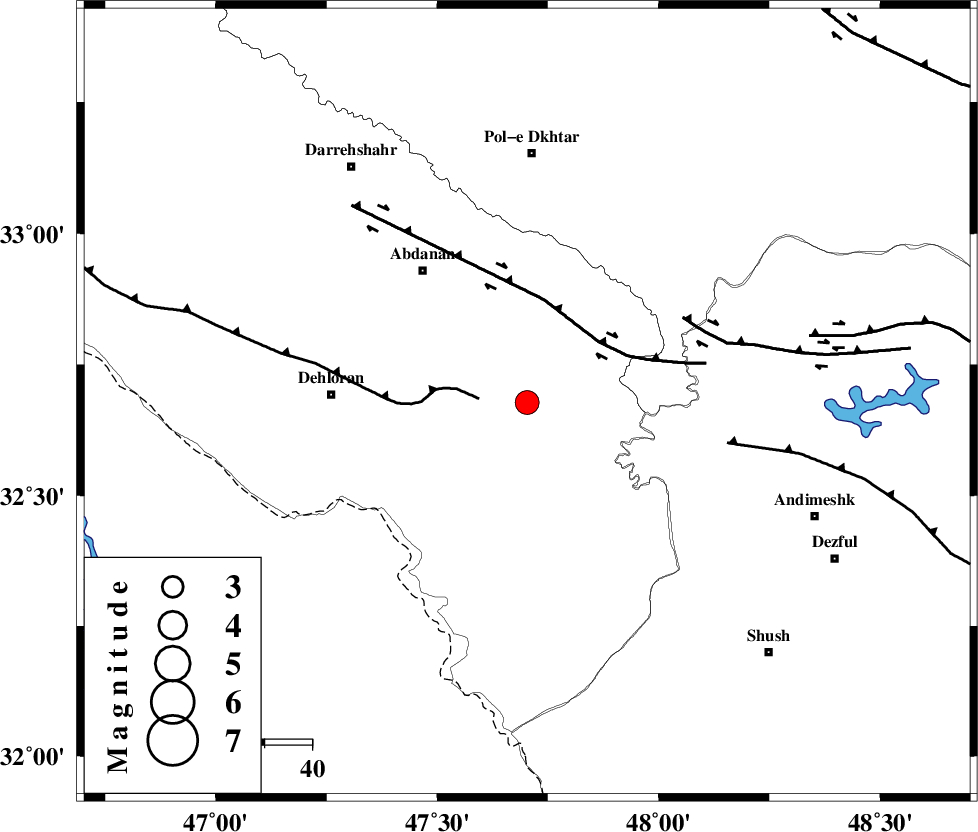

| Location | Lat:32.678 Lon: 47.703 |
| Region | Ilam Province, 41 km -East of Dehloran |
Nearest Cities |
|
| 28 km South East of Sarabbagh, Ilam Province | |
| 35 km North East of Musian, Ilam Province | |
| 36 km South East of Abdanan, Ilam Province | |
| 41 km East of Dehloran, Ilam Province | |
| 47 km South of Sarab hammam, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 20 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 37 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103890 | IIEES | KHMZ | E | 157.4 | 0.52 | 2016-01-22 20:36:54 | 2016-01-23 11:51:00 | n |
| 103891 | IIEES | ASAO | E | 70.3 | 0.49 | 2016-01-22 20:37:06 | 2016-01-23 11:51:00 | n |
| 103892 | IIEES | ASAO | N | 120.6 | 0.7 | 2016-01-22 20:37:13 | 2016-01-23 11:51:00 | n |
| 103893 | IIEES | GHVR | E | 77.5 | 0.57 | 2016-01-22 20:37:36 | 2016-01-23 11:51:00 | n |
| 103894 | IIEES | AHRM | E | 27.3 | 0.53 | 2016-01-22 20:38:27 | 2016-01-23 11:51:00 | n |
| 103895 | IIEES | AHRM | N | 35.8 | 0.6 | 2016-01-22 20:38:29 | 2016-01-23 11:51:00 | n |
| 103896 | IIEES | GHIR | N | 7.9 | 0.41 | 2016-01-22 20:38:37 | 2016-01-23 11:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-01-22 20:36:17 | -0.09 | y | 242 | 60 | |
| IIEES | KHMZ | E | Sg | E | 2016-01-22 20:36:47 | -0.11 | y | 242 | 60 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-22 20:36:20 | -0.24 | y | 270 | 353 | |
| IIEES | SNGE | N | Sg | E | 2016-01-22 20:36:55 | 0.07 | y | 270 | 353 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-22 20:36:24 | 0.05 | y | 299 | 45 | |
| IIEES | GHVR | Z | Pn | E | 2016-01-22 20:36:35 | 0.33 | y | 385 | 58 | |
| IIEES | CHTH | Z | Pn | E | 2016-01-22 20:36:46 | 0.16 | y | 477 | 40 | |
| IIEES | NASN | Z | Pn | E | 2016-01-22 20:36:44 | -2.25 | n | 4 | 479 | 87 |
| IIEES | AHRM | Z | Pn | E | 2016-01-22 20:36:54 | -0.1 | y | 545 | 140 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-22 20:37:04 | -3.25 | n | 4 | 648 | 91 |
| IIEES | GHIR | Z | Pn | E | 2016-01-22 20:37:10 | -4.48 | n | 4 | 703 | 132 |
