Magnitude |
3.4 |
| Date & Time (UTC) | 2016-01-24 06:05:30.6 |
| Date & Time (Local) | 1394/11/4 09:35:30.6 |
| Location | Lat:28.299 Lon: 55.373 |
| Region | Fars Province, 52 km -West of Hajiabad |
Nearest Cities |
|
| 17 km East of Doborji, Fars Province | |
| 21 km North East of Fadami, Fars Province | |
| 30 km South of Tal bargah, Fars Province | |
| 33 km South East of Rostaq, Fars Province | |
| 49 km North of Darz, Fars Province | |
| Depth | 14 km |
| Agency | |

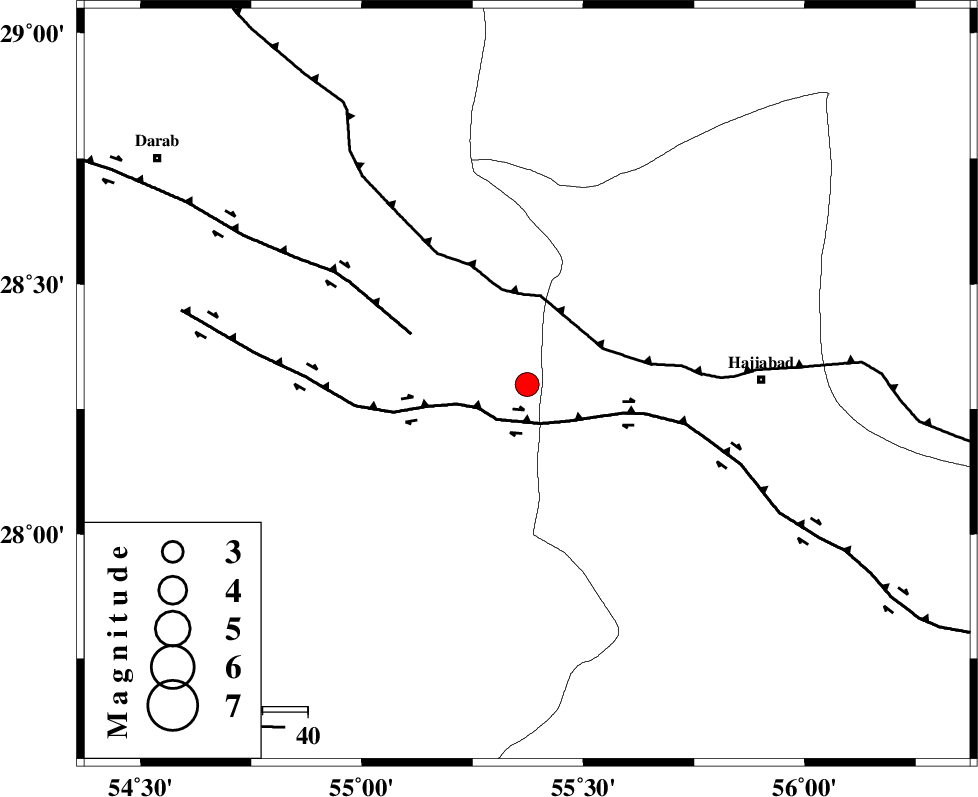

Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 9 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 17 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 28 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 103904 | IIEES | KRBR | N | 356.8 | 0.37 | 2016-01-24 06:06:41 | 2016-01-24 06:40:00 | n |
| 103905 | IIEES | KRBR | E | 424.6 | 0.41 | 2016-01-24 06:06:42 | 2016-01-24 06:40:00 | n |
| 103906 | IIEES | GHIR | N | 226.3 | 0.33 | 2016-01-24 06:06:46 | 2016-01-24 06:40:00 | n |
| 103907 | IIEES | GHIR | E | 214.1 | 0.59 | 2016-01-24 06:06:50 | 2016-01-24 06:40:00 | n |
| 103908 | IIEES | YZKH | E | 24.8 | 0.71 | 2016-01-24 06:08:07 | 2016-01-24 06:40:00 | n |
| 103909 | IIEES | BSRN | N | 12.6 | 0.64 | 2016-01-24 06:08:16 | 2016-01-24 06:40:00 | n |
| 103910 | IIEES | BSRN | E | 11.4 | 0.6 | 2016-01-24 06:08:17 | 2016-01-24 06:40:00 | n |
| 103911 | IIEES | CHBR | N | 12.4 | 0.71 | 2016-01-24 06:09:20 | 2016-01-24 06:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2016-01-24 06:06:07 | -0.01 | y | 230 | 36 | |
| IIEES | KRBR | N | Sg | E | 2016-01-24 06:06:36 | 0 | y | 230 | 36 | |
| IIEES | GHIR | Z | Pn | E | 2016-01-24 06:06:07 | 0.04 | y | 234 | 270 | |
| IIEES | YZKH | Z | Pn | E | 2016-01-24 06:06:35 | 0.24 | y | 460 | 351 | |
| IIEES | BSRN | Z | Pn | E | 2016-01-24 06:06:45 | -0.24 | y | 544 | 41 | |
| IIEES | ZHSF | Z | Pn | E | 2016-01-24 06:06:48 | 1.85 | n | 4 | 546 | 73 |
| IIEES | NASN | Z | Pn | E | 2016-01-24 06:06:47 | -0.57 | y | 556 | 334 | |
| IIEES | CHBR | Z | Pn | E | 2016-01-24 06:06:51 | -0.05 | y | 589 | 119 | |
| IIEES | TABS | Z | Pn | E | 2016-01-24 06:06:54 | -0.23 | y | 616 | 15 | |
| IIEES | SHRT | Z | Pn | E | 2016-01-24 06:07:12 | 0.68 | y | 756 | 37 | |
| IIEES | KHMZ | Z | Pn | E | 2016-01-24 06:07:17 | 0.11 | y | 794 | 321 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-24 06:07:24 | -0.03 | y | 857 | 4 | |
| IIEES | ASAO | Z | Pn | E | 2016-01-24 06:07:25 | 0.04 | y | 859 | 325 | |
| IIEES | DAMV | Z | Pn | E | 2016-01-24 06:07:27 | 0.43 | y | 874 | 339 | |
| IIEES | SNGE | Z | Pn | E | 2016-01-24 06:07:46 | -5.02 | n | 4 | 1070 | 317 |
