Magnitude |
2.9 |
| Date & Time (UTC) | 2016-01-27 10:29:24.3 |
| Date & Time (Local) | 1394/11/7 13:59:24.3 |
| Location | Lat:31.956 Lon: 55.939 |
| Region | Yazd Province, 64 km North-East of Bafq |
Nearest Cities |
|
| 13 km North of Behabad, Yazd Province | |
| 28 km North West of Benestan, Yazd Province | |
| 28 km North East of Kushk, Yazd Province | |
| 42 km North West of Asfih, Yazd Province | |
| 53 km North of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

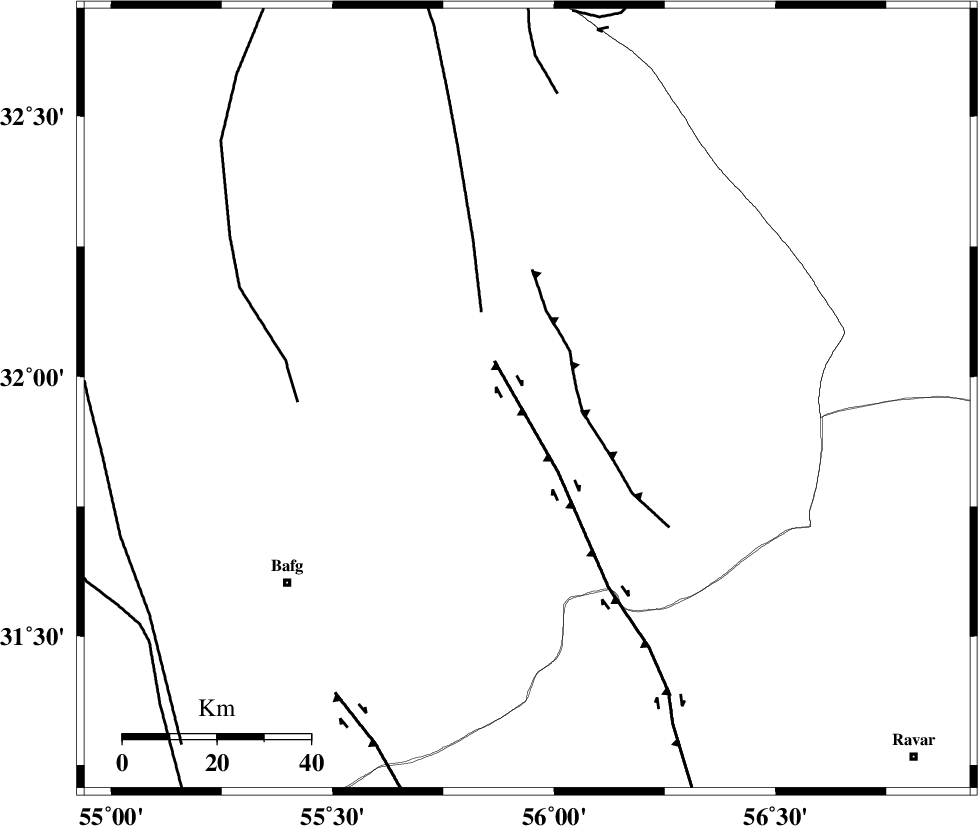

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 11 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 11 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 21 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 7 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104027 | IIEES | TABS | N | 56.7 | 0.47 | 2016-01-27 10:30:31 | 2016-01-27 11:38:00 | n |
| 104028 | IIEES | KRBR | E | 104.8 | 0.48 | 2016-01-27 10:30:34 | 2016-01-27 11:38:00 | n |
| 104029 | IIEES | KRBR | N | 111 | 0.7 | 2016-01-27 10:30:36 | 2016-01-27 11:38:00 | n |
| 104030 | IIEES | SHRO | E | 8.8 | 0.34 | 2016-01-27 10:31:36 | 2016-01-27 11:38:00 | n |
| 104031 | IIEES | SHRO | N | 8.3 | 0.63 | 2016-01-27 10:31:38 | 2016-01-27 11:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | YZKH | Z | Pg | E | 2016-01-27 10:29:46 | -0.29 | y | 136 | 291 | |
| IIEES | TABS | Z | Pn | E | 2016-01-27 10:29:59 | 0.02 | y | 218 | 30 | |
| IIEES | TABS | N | Sg | E | 2016-01-27 10:30:25 | -0.23 | y | 218 | 30 | |
| IIEES | KRBR | Z | Pn | E | 2016-01-27 10:30:02 | 0.97 | y | 232 | 160 | |
| IIEES | KRBR | E | Sg | E | 2016-01-27 10:30:29 | -0.44 | y | 232 | 160 | |
| IIEES | BSRN | Z | Pn | E | 2016-01-27 10:30:08 | -0.54 | y | 301 | 89 | |
| IIEES | NASN | Z | Pn | E | 2016-01-27 10:30:10 | -0.27 | y | 309 | 288 | |
| IIEES | SHRT | Z | Pn | E | 2016-01-27 10:30:27 | 0.23 | y | 449 | 64 | |
| IIEES | SHRO | Z | Pn | E | 2016-01-27 10:30:28 | 0.77 | y | 450 | 1 |
