Magnitude |
2.8 |
| Date & Time (UTC) | 2016-02-04 08:14:06.8 |
| Date & Time (Local) | 1394/11/15 11:44:06.8 |
| Location | Lat:31.704 Lon: 50.896 |
| Region | Chaharmahal Bakhtiari Province, 24 km North of Lordegan |
Nearest Cities |
|
| 13 km North East of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 23 km North West of Aluni, Chaharmahal Bakhtiari Province | |
| 24 km North of Lordegan, Chaharmahal Bakhtiari Province | |
| 29 km South West of Baladaji, Chaharmahal Bakhtiari Province | |
| 30 km South East of Naghan, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |

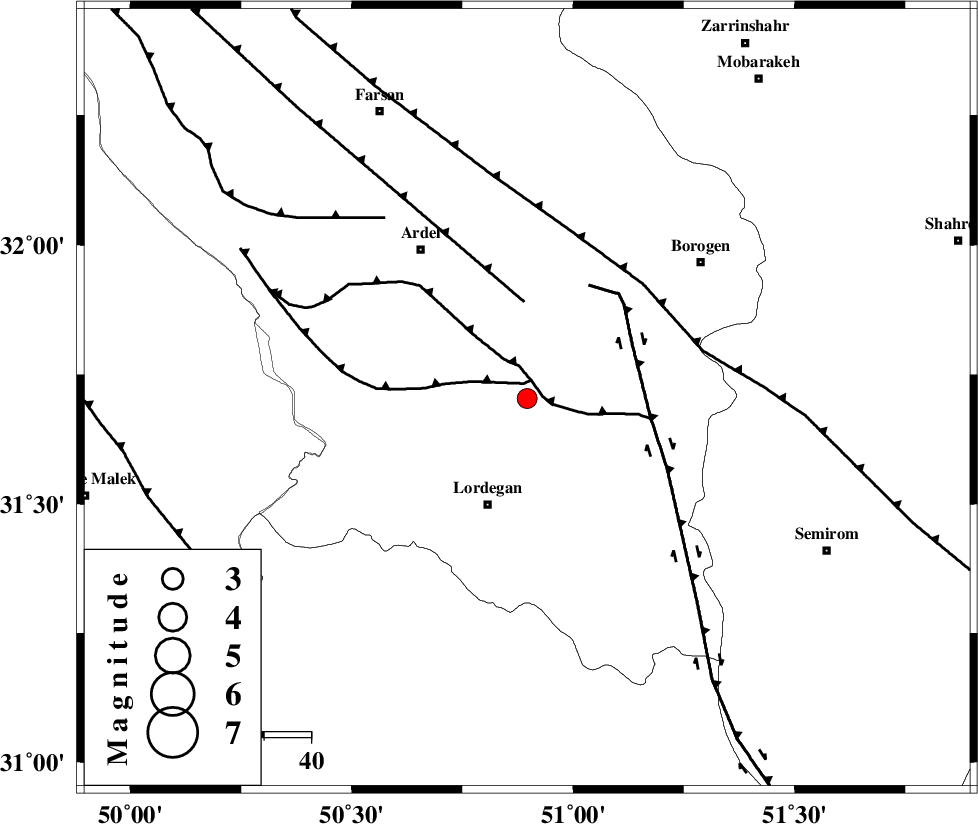

Faults within 150 km: |
|
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 3 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 3 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 21 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | 3 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104190 | IIEES | NASN | E | 45.4 | 0.32 | 2016-02-04 08:15:17 | 2016-02-06 07:26:00 | n |
| 104191 | IIEES | NASN | N | 50.6 | 0.3 | 2016-02-04 08:15:19 | 2016-02-06 07:26:00 | n |
| 104192 | IIEES | KHMZ | E | 52.9 | 0.38 | 2016-02-04 08:15:20 | 2016-02-06 07:26:00 | n |
| 104193 | IIEES | KHMZ | N | 48.8 | 0.72 | 2016-02-04 08:15:30 | 2016-02-06 07:26:00 | n |
| 104194 | IIEES | GHVR | E | 30 | 0.44 | 2016-02-04 08:15:53 | 2016-02-06 07:26:00 | n |
| 104195 | IIEES | ASAO | N | 45 | 0.52 | 2016-02-04 08:15:50 | 2016-02-06 07:26:00 | n |
| 104196 | IIEES | ASAO | E | 30.3 | 0.6 | 2016-02-04 08:15:52 | 2016-02-06 07:26:00 | n |
| 104197 | IIEES | YZKH | N | 15.5 | 0.54 | 2016-02-04 08:16:02 | 2016-02-06 07:26:00 | n |
| 104198 | IIEES | YZKH | E | 16.4 | 0.31 | 2016-02-04 08:16:10 | 2016-02-06 07:26:00 | n |
| 104199 | IIEES | GHIR | N | 14.6 | 0.66 | 2016-02-04 08:15:55 | 2016-02-06 07:26:00 | n |
| 104200 | IIEES | DAMV | N | 12.6 | 0.62 | 2016-02-04 08:16:20 | 2016-02-06 07:26:00 | n |
| 104201 | IIEES | DAMV | E | 12.4 | 0.46 | 2016-02-04 08:16:29 | 2016-02-06 07:26:00 | n |
| 104202 | IIEES | CHTH | N | 6.3 | 0.51 | 2016-02-04 08:16:25 | 2016-02-06 07:26:00 | n |
| 104203 | IIEES | CHTH | E | 8.2 | 0.83 | 2016-02-04 08:16:38 | 2016-02-06 07:26:00 | n |
| 104204 | IIEES | SNGE | N | 8.3 | 0.56 | 2016-02-04 08:16:38 | 2016-02-06 07:26:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pg | E | 2016-02-04 08:14:42 | -0.23 | y | 217 | 56 | |
| IIEES | NASN | N | Sg | E | 2016-02-04 08:15:08 | -0.13 | y | 217 | 56 | |
| IIEES | KHMZ | Z | Pn | E | 2016-02-04 08:14:44 | 0 | y | 242 | 339 | |
| IIEES | GHVR | Z | Pn | E | 2016-02-04 08:14:53 | 0.04 | y | 310 | 6 | |
| IIEES | ASAO | Z | Pn | E | 2016-02-04 08:14:55 | -0.07 | y | 326 | 346 | |
| IIEES | YZKH | Z | Pn | E | 2016-02-04 08:14:59 | 0.45 | y | 357 | 77 | |
| IIEES | GHIR | Z | Pn | E | 2016-02-04 08:15:07 | -0.26 | y | 429 | 151 | |
| IIEES | DAMV | Z | Pn | E | 2016-02-04 08:15:10 | 0.2 | y | 447 | 13 | |
| IIEES | CHTH | Z | Pn | E | 2016-02-04 08:15:12 | -0.17 | y | 467 | 3 | |
| IIEES | SNGE | Z | Pn | E | 2016-02-04 08:15:13 | -3.71 | n | 4 | 500 | 320 |
| IIEES | TABS | Z | Pn | E | 2016-02-04 08:15:32 | 0.31 | y | 622 | 68 | |
| IIEES | SHRO | Z | Pn | E | 2016-02-04 08:15:38 | 0.04 | y | 672 | 43 |
