Magnitude |
2.9 |
| Date & Time (UTC) | 2016-02-10 22:24:02.2 |
| Date & Time (Local) | 1394/11/22 01:54:02.2 |
| Location | Lat:33.297 Lon: 57.407 |
| Region | Yazd Province, 56 km South-East of Tabas |
Nearest Cities |
|
| 8 km North of Dihuk, Yazd Province | |
| 36 km North West of Arababad, Yazd Province | |
| 44 km South of Arsak, Khorasan(center) Province | |
| 47 km South East of Kerit, Yazd Province | |
| 54 km South East of Oshtoqran, Yazd Province | |
| Depth | 15 km |
| Agency | |

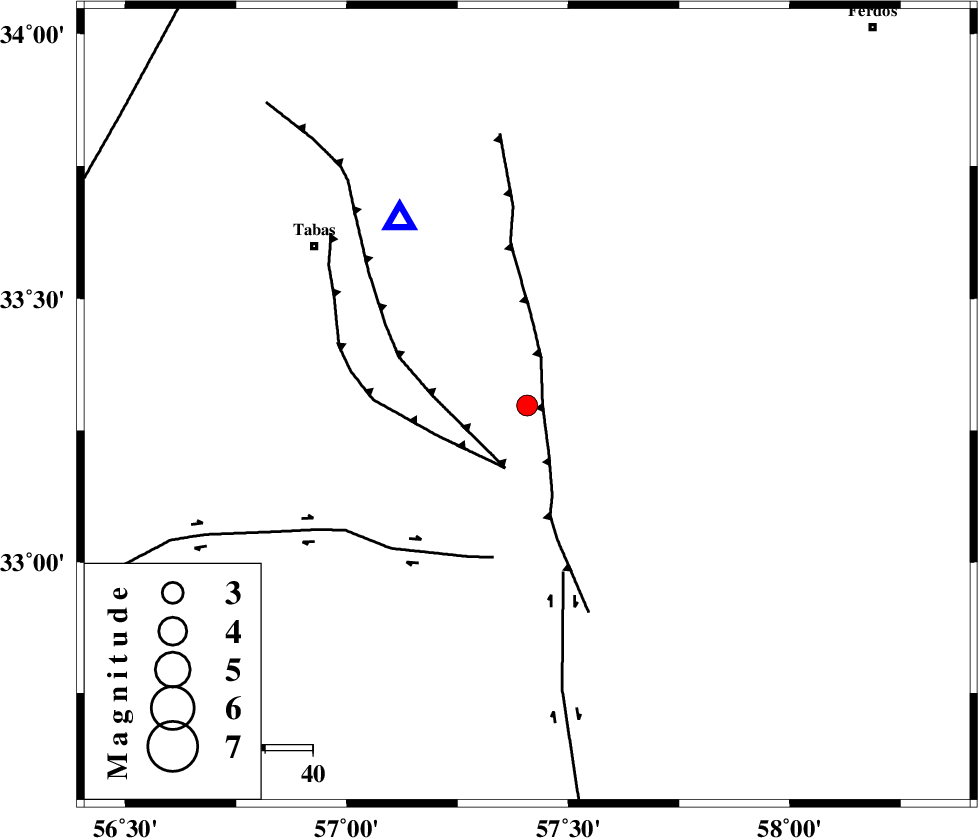

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 3 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 14 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 14 km | |
| Number of Phases | 9 |
| RMS | 0.6 |
| Number of Stations | 7 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104296 | IIEES | YZKH | E | 33.3 | 0.39 | 2016-02-10 22:25:28 | 2016-02-13 09:22:00 | n |
| 104297 | IIEES | KRBR | E | 26.5 | 0.25 | 2016-02-10 22:25:51 | 2016-02-13 09:22:00 | n |
| 104298 | IIEES | KRBR | N | 23 | 0.29 | 2016-02-10 22:25:55 | 2016-02-13 09:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2016-02-10 22:24:10 | -0.76 | y | 47.3 | 326 | |
| IIEES | TABS | N | Sg | E | 2016-02-10 22:24:17 | -0.17 | y | 47.3 | 326 | |
| IIEES | BSRN | Z | Pn | E | 2016-02-10 22:24:36 | -0.48 | y | 219 | 132 | |
| IIEES | BSRN | N | Sg | E | 2016-02-10 22:25:04 | -0.15 | y | 219 | 132 | |
| IIEES | SHRT | Z | Pn | E | 2016-02-10 22:24:43 | 0.28 | y | 271 | 81 | |
| IIEES | YZKH | Z | Pn | E | 2016-02-10 22:24:45 | 0.07 | y | 282 | 250 | |
| IIEES | SHRO | Z | Pn | E | 2016-02-10 22:24:50 | -0.1 | y | 327 | 337 | |
| IIEES | KRBR | Z | Pn | E | 2016-02-10 22:24:56 | 0.48 | y | 373 | 190 | |
| IIEES | MRVT | Z | Pn | E | 2016-02-10 22:25:13 | 1.38 | y | 499 | 347 |
