Magnitude |
3 |
| Date & Time (UTC) | 2016-02-11 20:30:11.4 |
| Date & Time (Local) | 1394/11/23 00:00:11.4 |

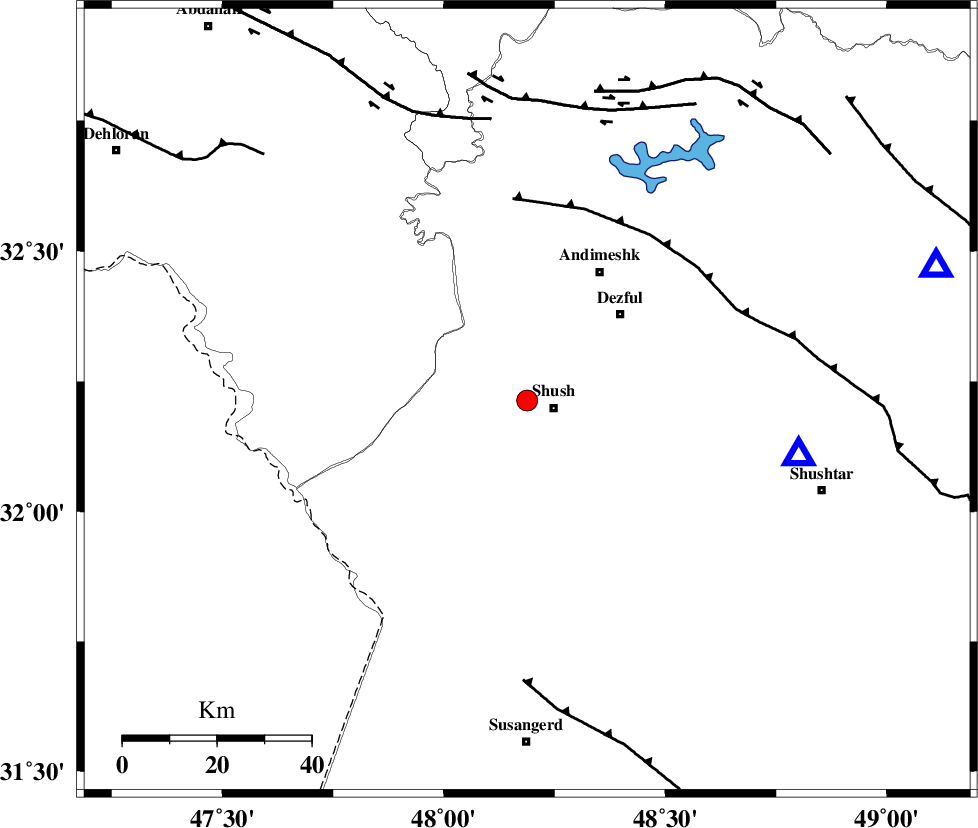

| Location | Lat:32.214 Lon: 48.188 |
| Region | Khoozestan Province, 6 km of Shush |
Nearest Cities |
|
| 6 km North of Shush, Khoozestan Province | |
| 9 km North of Amaleh teimur, Khoozestan Province | |
| 25 km West of Shamsabad, Khoozestan Province | |
| 27 km South West of Dezful, Khoozestan Province | |
| 31 km South West of Andimeshk, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 60 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 60 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | 8.8 km |
| Error in Longitude | 7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104326 | IIEES | KHMZ | E | 90.3 | 0.7 | 2016-02-11 20:31:27 | 2016-02-13 09:22:00 | n |
| 104327 | IIEES | ASAO | E | 38.9 | 0.62 | 2016-02-11 20:31:51 | 2016-02-13 09:22:00 | n |
| 104328 | IIEES | ASAO | N | 38.4 | 0.57 | 2016-02-11 20:31:56 | 2016-02-13 09:22:00 | n |
| 104329 | IIEES | SNGE | N | 33.1 | 0.4 | 2016-02-11 20:31:55 | 2016-02-13 09:22:00 | n |
| 104330 | IIEES | GHVR | E | 35 | 0.21 | 2016-02-11 20:32:00 | 2016-02-13 09:22:00 | n |
| 104331 | IIEES | CHTH | E | 11.1 | 0.9 | 2016-02-11 20:32:12 | 2016-02-13 09:22:00 | n |
| 104332 | IIEES | YZKH | N | 3.8 | 0.5 | 2016-02-11 20:32:38 | 2016-02-13 09:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-02-11 20:30:49 | 0.59 | y | 237 | 44 | |
| IIEES | ASAO | Z | Pn | E | 2016-02-11 20:30:58 | 0.51 | y | 310 | 33 | |
| IIEES | SNGE | Z | Pn | E | 2016-02-11 20:30:59 | -0.61 | y | 329 | 347 | |
| IIEES | GHVR | Z | Pn | E | 2016-02-11 20:31:07 | 0.91 | y | 380 | 48 | |
| IIEES | NASN | Z | Pn | E | 2016-02-11 20:31:13 | -0.43 | y | 439 | 80 | |
| IIEES | AHRM | Z | Pn | E | 2016-02-11 20:31:18 | 0.67 | y | 476 | 140 | |
| IIEES | CHTH | Z | Pn | E | 2016-02-11 20:31:19 | -0.33 | y | 491 | 33 | |
| IIEES | ZNJK | Z | Pn | E | 2016-02-11 20:31:21 | 0.23 | y | 497 | 5 | |
| IIEES | DAMV | Z | Pn | E | 2016-02-11 20:31:22 | -0.51 | y | 516 | 42 | |
| IIEES | YZKH | Z | Pn | E | 2016-02-11 20:31:32 | -1.51 | y | 603 | 86 | |
| IIEES | TABS | Z | Pn | E | 2016-02-11 20:32:04 | -0.59 | y | 850 | 77 |
