Magnitude |
3 |
| Date & Time (UTC) | 2016-02-21 20:34:57.7 |
| Date & Time (Local) | 1394/12/3 00:04:57.7 |

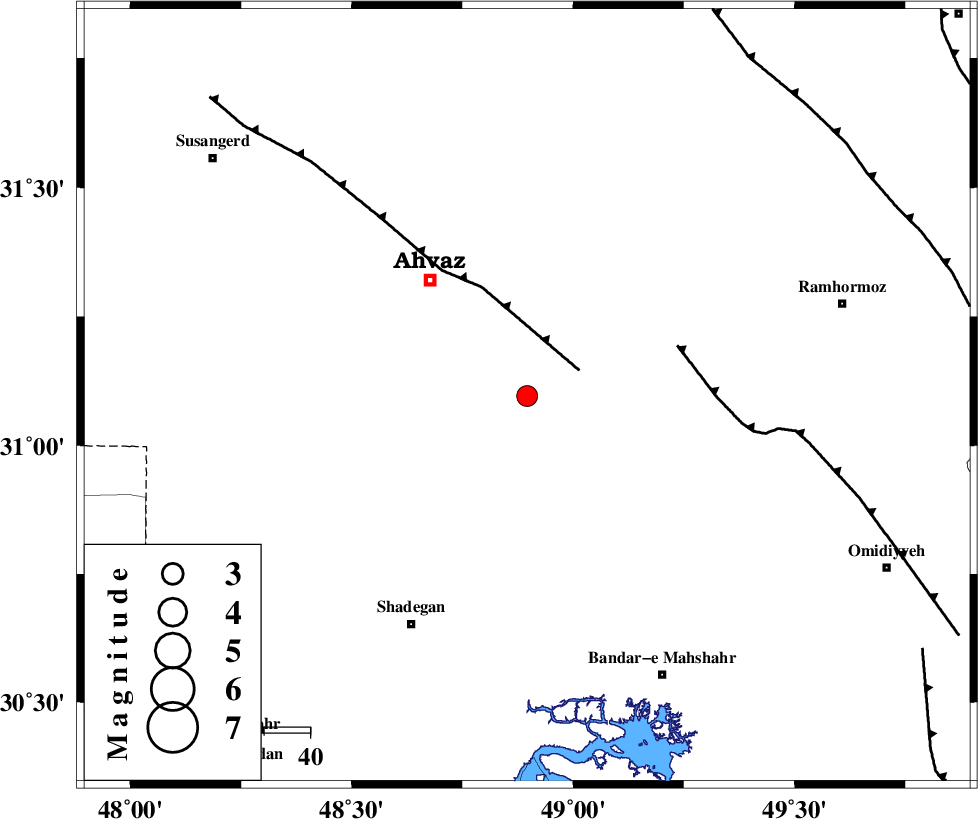

| Location | Lat:31.096 Lon: 48.896 |
| Region | Khoozestan Province, 32 km South-East of Ahvaz |
Nearest Cities |
|
| 13 km South of Mashrehat, Khoozestan Province | |
| 28 km East of Abunangeh, Khoozestan Province | |
| 32 km South East of Ahvaz, Khoozestan Province | |
| 35 km East of Bahr, Khoozestan Province | |
| 35 km North of Gharibeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 13 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 34 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 87 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104518 | IIEES | KHMZ | E | 44.3 | 0.39 | 2016-02-21 20:36:33 | 2016-02-22 05:24:00 | n |
| 104519 | IIEES | KHMZ | N | 30.1 | 0.62 | 2016-02-21 20:36:44 | 2016-02-22 05:24:00 | n |
| 104520 | IIEES | AHRM | E | 24.3 | 0.55 | 2016-02-21 20:36:39 | 2016-02-22 05:24:00 | n |
| 104521 | IIEES | AHRM | N | 23 | 0.32 | 2016-02-21 20:36:43 | 2016-02-22 05:24:00 | n |
| 104522 | IIEES | ASAO | E | 16.9 | 0.58 | 2016-02-21 20:37:09 | 2016-02-22 05:24:00 | n |
| 104523 | IIEES | ASAO | N | 26.3 | 0.73 | 2016-02-21 20:37:09 | 2016-02-22 05:24:00 | n |
| 104524 | IIEES | GHVR | N | 10 | 0.35 | 2016-02-21 20:36:59 | 2016-02-22 05:24:00 | n |
| 104525 | IIEES | GHVR | E | 21.9 | 0.59 | 2016-02-21 20:37:06 | 2016-02-22 05:24:00 | n |
| 104526 | IIEES | SNGE | N | 20.5 | 0.48 | 2016-02-21 20:36:56 | 2016-02-22 05:24:00 | n |
| 104527 | IIEES | YZKH | E | 4.6 | 0.52 | 2016-02-21 20:37:20 | 2016-02-22 05:24:00 | n |
| 104528 | IIEES | DAMV | N | 8 | 0.58 | 2016-02-21 20:37:24 | 2016-02-22 05:24:00 | n |
| 104529 | IIEES | DAMV | E | 6.7 | 0.58 | 2016-02-21 20:37:24 | 2016-02-22 05:24:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-02-21 20:35:44 | 0.51 | y | 310 | 19 | |
| IIEES | AHRM | Z | Pn | E | 2016-02-21 20:35:47 | 0.45 | y | 339 | 136 | |
| IIEES | ASAO | Z | Pn | E | 2016-02-21 20:35:55 | 0.31 | y | 397 | 15 | |
| IIEES | NASN | Z | Pn | E | 2016-02-21 20:35:57 | -0.15 | y | 415 | 62 | |
| IIEES | GHVR | Z | Pn | E | 2016-02-21 20:35:59 | 0.6 | y | 435 | 30 | |
| IIEES | SNGE | Z | Pn | E | 2016-02-21 20:36:02 | -0.53 | y | 466 | 342 | |
| IIEES | GHIR | Z | Pn | E | 2016-02-21 20:36:07 | -0.4 | y | 504 | 127 | |
| IIEES | YZKH | Z | Pn | E | 2016-02-21 20:36:14 | -0.46 | y | 558 | 74 | |
| IIEES | CHTH | Z | Pn | E | 2016-02-21 20:36:16 | -0.13 | y | 573 | 21 | |
| IIEES | DAMV | Z | Pn | E | 2016-02-21 20:36:16 | -0.76 | y | 579 | 29 |
