Magnitude |
3.2 |
| Date & Time (UTC) | 2016-03-14 06:52:16.0 |
| Date & Time (Local) | 1394/12/24 10:22:16.0 |

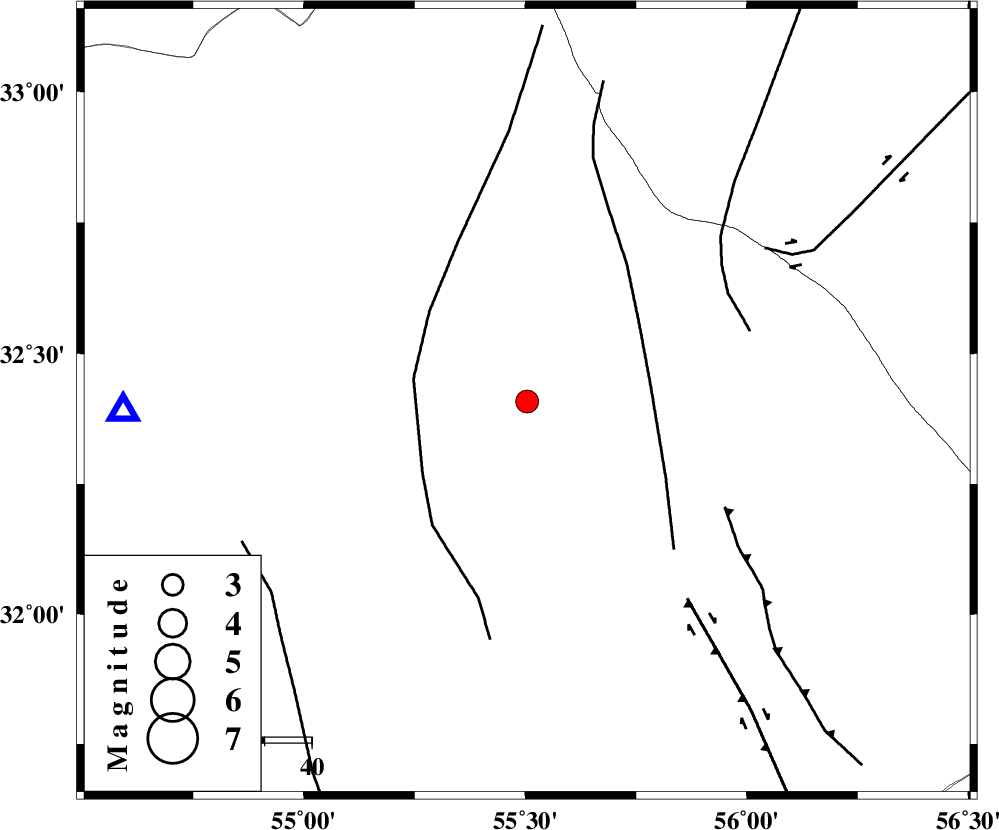

| Location | Lat:32.408 Lon: 55.504 |
| Region | Yazd Province, 90 km North-East of Bafq |
Nearest Cities |
|
| 68 km South of Robat-e posht-e badam, Yazd Province | |
| 77 km North West of Behabad, Yazd Province | |
| 79 km North West of Kushk, Yazd Province | |
| 79 km North East of Kharaneq, Yazd Province | |
| 87 km North of Mobarake, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 25 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 26 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 48 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | 3.4 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104979 | IIEES | YZKH | E | 681.7 | 0.21 | 2016-03-14 06:52:44 | 2016-03-14 08:05:00 | n |
| 104980 | IIEES | TABS | N | 135.9 | 0.62 | 2016-03-14 06:53:18 | 2016-03-14 08:05:00 | n |
| 104981 | IIEES | KRBR | E | 187.8 | 0.48 | 2016-03-14 06:53:45 | 2016-03-14 08:05:00 | n |
| 104982 | IIEES | KRBR | N | 162.7 | 0.3 | 2016-03-14 06:53:46 | 2016-03-14 08:05:00 | n |
| 104983 | IIEES | BSRN | E | 36.8 | 0.32 | 2016-03-14 06:53:58 | 2016-03-14 08:05:00 | n |
| 104984 | IIEES | BSRN | N | 41.4 | 0.4 | 2016-03-14 06:54:00 | 2016-03-14 08:05:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | YZKH | Z | Pg | E | 2016-03-14 06:52:31 | 0.17 | y | 85.8 | 269 | |
| IIEES | YZKH | N | Sg | E | 2016-03-14 06:52:41 | -0.48 | y | 85.8 | 269 | |
| IIEES | TABS | Z | Pg | E | 2016-03-14 06:52:49 | -0.37 | y | 204 | 47 | |
| IIEES | KRBR | Z | Pn | E | 2016-03-14 06:53:00 | 0.38 | y | 294 | 156 | |
| IIEES | KRBR | N | Sg | E | 2016-03-14 06:53:39 | -0.05 | y | 294 | 156 | |
| IIEES | BSRN | Z | Pn | E | 2016-03-14 06:53:06 | -0.37 | y | 345 | 97 | |
| IIEES | SHRT | Z | Pn | E | 2016-03-14 06:53:16 | -5.4 | n | 4 | 468 | 72 |
| IIEES | ASAO | Z | Pn | E | 2016-03-14 06:53:34 | 0.6 | y | 562 | 296 | |
| IIEES | MRVT | Z | Pn | E | 2016-03-14 06:53:37 | 0.6 | y | 585 | 5 |
