Magnitude |
3.9 |
| Date & Time (UTC) | 2016-03-14 17:26:49.2 |
| Date & Time (Local) | 1394/12/24 20:56:49.2 |
| Location | Lat:37.276 Lon: 58.405 |
| Region | Khorasan(center) Province, 21 km North-West of Quchan |
Nearest Cities |
|
| 10 km North East of Yatnakanlu, Khorasan(center) Province | |
| 16 km North of Shahr-e kohneh, Khorasan(center) Province | |
| 17 km South West of Emamqoli, Khorasan(center) Province | |
| 18 km North East of Faruj, Khorasan(center) Province | |
| 19 km North West of Mazraj, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |

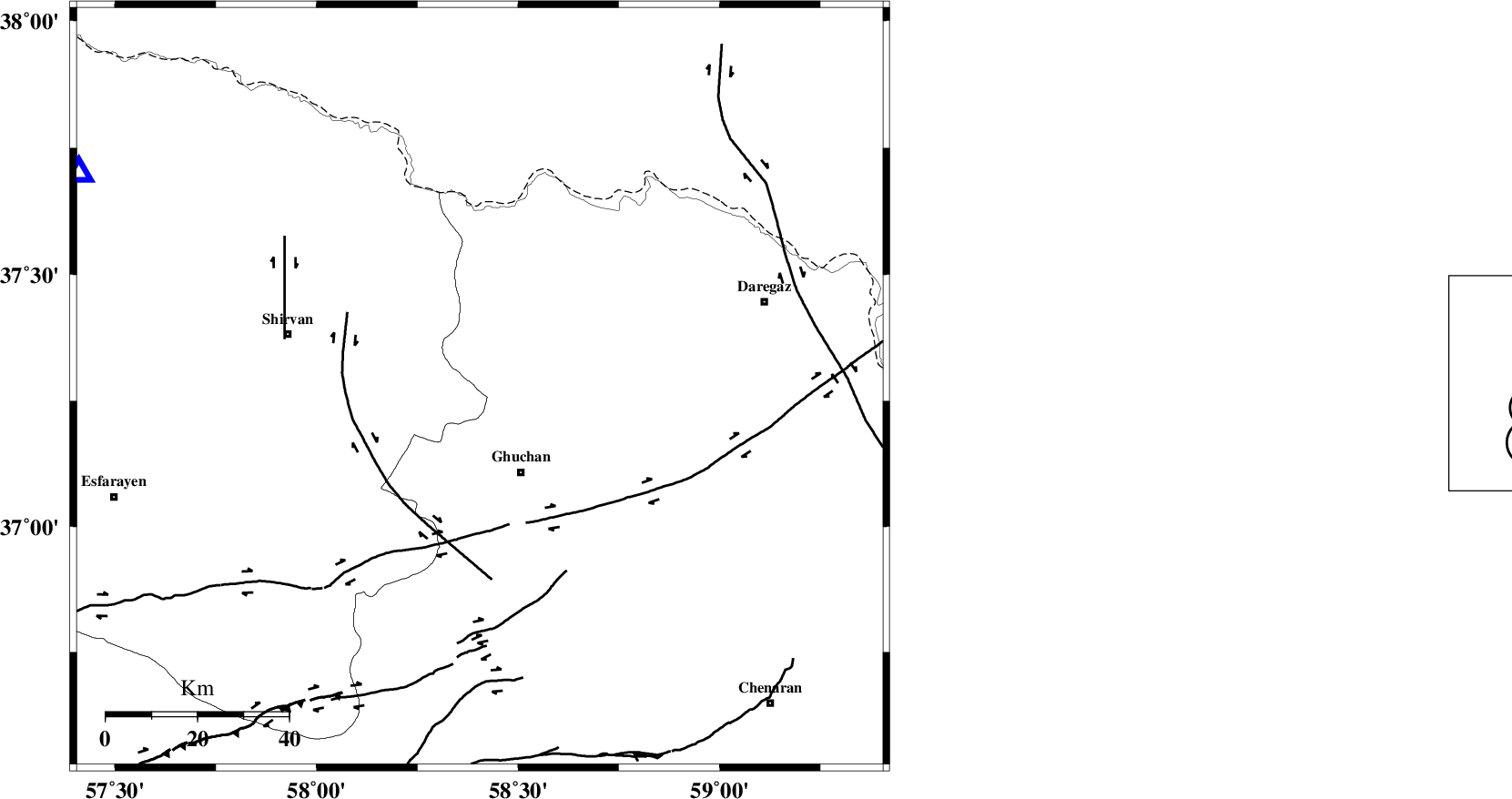

Faults within 150 km: |
|
| GHUCHAN_F (Length: 50 km) , Distance to epicenter: 13 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 25 km | |
| BINALUD_F1 (Length: 129 km) , Distance to epicenter: 54 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | 3.5 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 105009 | IIEES | BJRD | N | 2534.7 | 0.28 | 2016-03-14 17:27:25 | 2016-03-15 05:51:00 | n |
| 105010 | IIEES | BJRD | E | 5648.8 | 0.31 | 2016-03-14 17:27:25 | 2016-03-15 05:51:00 | n |
| 105011 | IIEES | MRVT | N | 1467.5 | 0.4 | 2016-03-14 17:27:54 | 2016-03-15 05:51:00 | n |
| 105012 | IIEES | MRVT | E | 1192 | 0.35 | 2016-03-14 17:28:00 | 2016-03-15 05:51:00 | n |
| 105013 | IIEES | SHRO | N | 432.7 | 0.7 | 2016-03-14 17:28:05 | 2016-03-15 05:51:00 | n |
| 105014 | IIEES | SHRO | E | 447.6 | 0.64 | 2016-03-14 17:28:16 | 2016-03-15 05:51:00 | n |
| 105015 | IIEES | TABS | N | 121.8 | 0.79 | 2016-03-14 17:29:08 | 2016-03-15 05:51:00 | n |
| 105016 | IIEES | SHRT | E | 78.4 | 0.53 | 2016-03-14 17:28:48 | 2016-03-15 05:51:00 | n |
| 105017 | IIEES | SHRT | N | 97.5 | 0.66 | 2016-03-14 17:28:59 | 2016-03-15 05:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BJRD | Z | Pg | E | 2016-03-14 17:27:05 | -0.31 | y | 99.9 | 298 | |
| IIEES | MRVT | Z | Pn | E | 2016-03-14 17:27:23 | 0.21 | y | 209 | 282 | |
| IIEES | MRVT | N | Sg | E | 2016-03-14 17:27:48 | 0.2 | y | 209 | 282 | |
| IIEES | SHRO | Z | Pn | E | 2016-03-14 17:27:28 | -0.4 | y | 256 | 237 | |
| IIEES | SHRO | N | Sg | E | 2016-03-14 17:28:01 | 0.03 | y | 256 | 237 | |
| IIEES | TABS | Z | Pn | E | 2016-03-14 17:27:49 | 0.3 | y | 419 | 197 | |
| IIEES | SHRT | Z | Pn | E | 2016-03-14 17:27:45 | -5.98 | n | 4 | 438 | 156 |
| IIEES | BSRN | Z | Pn | E | 2016-03-14 17:28:10 | -0.3 | y | 593 | 173 | |
| IIEES | DAMV | Z | Pn | E | 2016-03-14 17:28:15 | 3.27 | n | 4 | 605 | 254 |
| IIEES | YZKH | Z | Pn | E | 2016-03-14 17:28:17 | 0.14 | y | 644 | 214 | |
| IIEES | CHTH | Z | Pn | E | 2016-03-14 17:28:23 | 3.27 | n | 4 | 669 | 259 |
| IIEES | THKV | Z | Pn | E | 2016-03-14 17:28:22 | 0.19 | y | 690 | 260 | |
| IIEES | NASN | Z | Pn | E | 2016-03-14 17:28:25 | -0.51 | y | 712 | 227 | |
| IIEES | GHVR | Z | Pn | E | 2016-03-14 17:28:26 | 0.21 | y | 717 | 246 | |
| IIEES | ASAO | Z | Pn | E | 2016-03-14 17:28:37 | -0.49 | y | 814 | 251 | |
| IIEES | KHMZ | Z | Pn | E | 2016-03-14 17:28:43 | -0.33 | y | 860 | 245 | |
| IIEES | ZNJK | Z | Pn | E | 2016-03-14 17:28:45 | 0.86 | y | 868 | 268 | |
| IIEES | ZHSF | Z | Pn | E | 2016-03-14 17:28:46 | 0.72 | y | 878 | 165 | |
| IIEES | GRMI | Z | Pn | E | 2016-03-14 17:28:50 | -2.5 | n | 4 | 938 | 284 |
