Magnitude |
3.5 |
| Date & Time (UTC) | 2016-04-18 20:42:03.9 |
| Date & Time (Local) | 1395/1/31 01:12:03.9 |

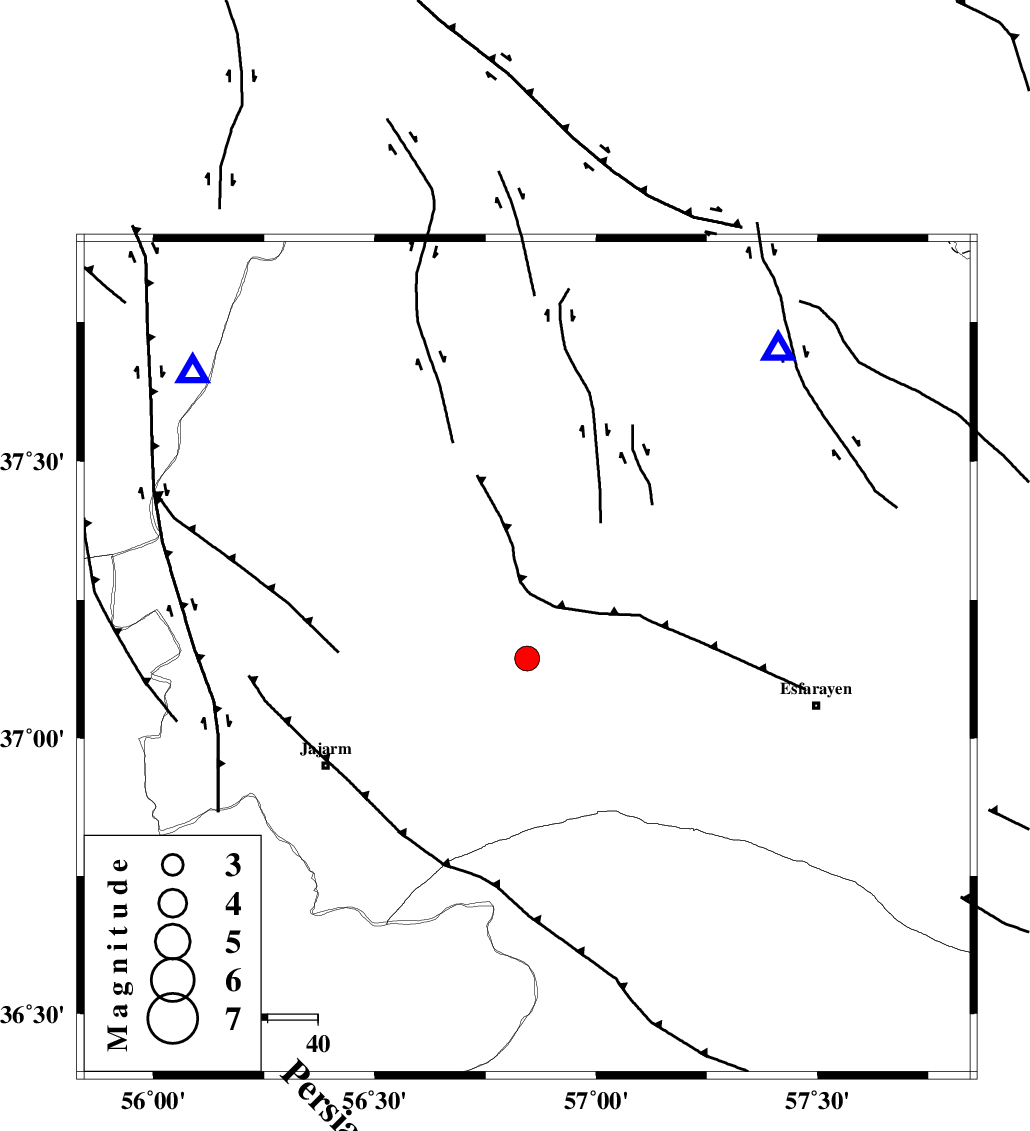

| Location | Lat:37.144 Lon: 56.844 |
| Region | Khorasan(north) Province, 46 km South of Ashkhaneh |
Nearest Cities |
|
| 23 km South of Shogan, Khorasan(north) Province | |
| 31 km North West of Cheharborj, Khorasan(north) Province | |
| 38 km North of Farashiyan, Khorasan(center) Province | |
| 40 km North West of Zarqabad, Khorasan(north) Province | |
| 46 km North East of Jajarm, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 10 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 12 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 24 km | |
| Number of Phases | 15 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 105621 | IIEES | SHRO | E | 575.7 | 0.29 | 2016-04-18 20:42:51 | 2016-04-19 06:46:00 | n |
| 105622 | IIEES | SHRO | N | 534.9 | 0.2 | 2016-04-18 20:42:51 | 2016-04-19 06:46:00 | n |
| 105623 | IIEES | DAMV | N | 51.2 | 0.81 | 2016-04-18 20:44:38 | 2016-04-19 06:46:00 | n |
| 105624 | IIEES | DAMV | E | 45.1 | 0.52 | 2016-04-18 20:44:39 | 2016-04-19 06:46:00 | n |
| 105625 | IIEES | SHRT | E | 16.8 | 0.39 | 2016-04-18 20:44:44 | 2016-04-19 06:46:00 | n |
| 105626 | IIEES | YZKH | E | 28.8 | 0.73 | 2016-04-18 20:44:53 | 2016-04-19 06:46:00 | n |
| 105627 | IIEES | YZKH | N | 24 | 0.46 | 2016-04-18 20:45:05 | 2016-04-19 06:46:00 | n |
| 105628 | IIEES | GHVR | E | 24 | 0.85 | 2016-04-18 20:45:02 | 2016-04-19 06:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BJRD | Z | Pg | E | 2016-04-18 20:42:17 | -0.09 | y | 79.3 | 39 | |
| IIEES | MRVT | Z | Pg | E | 2016-04-18 20:42:18 | -0.21 | y | 88 | 311 | |
| IIEES | MRVT | N | Sg | E | 2016-04-18 20:42:30 | 0.06 | y | 88 | 311 | |
| IIEES | SHRO | Z | Pg | E | 2016-04-18 20:42:27 | -0.62 | y | 146 | 211 | |
| IIEES | DAMV | Z | Pn | E | 2016-04-18 20:43:12 | 2.83 | n | 4 | 468 | 250 |
| IIEES | SHRT | Z | Pn | E | 2016-04-18 20:43:13 | 0.39 | y | 499 | 140 | |
| IIEES | CHTH | Z | Pn | E | 2016-04-18 20:43:17 | -0.23 | y | 530 | 257 | |
| IIEES | YZKH | Z | Pn | E | 2016-04-18 20:43:21 | -0.2 | y | 566 | 202 | |
| IIEES | GHVR | Z | Pn | E | 2016-04-18 20:43:24 | 0.27 | y | 586 | 241 | |
| IIEES | NASN | Z | Pn | E | 2016-04-18 20:43:26 | -0.25 | y | 607 | 219 | |
| IIEES | ASAO | Z | Pn | E | 2016-04-18 20:43:36 | 0.05 | y | 680 | 247 | |
| IIEES | ZNJK | Z | Pn | E | 2016-04-18 20:43:43 | 1.46 | y | 729 | 268 | |
| IIEES | KHMZ | Z | Pn | E | 2016-04-18 20:43:43 | 1.19 | y | 730 | 241 | |
| IIEES | GRMI | Z | Pn | E | 2016-04-18 20:43:51 | -0.8 | y | 808 | 286 | |
| IIEES | SNGE | Z | Pn | E | 2016-04-18 20:43:55 | -6.06 | n | 4 | 884 | 258 |
