Magnitude |
3.1 |
| Date & Time (UTC) | 2016-04-23 16:44:10.3 |
| Date & Time (Local) | 1395/2/4 21:14:10.3 |
| Location | Lat:30.216 Lon: 52.003 |
| Region | Fars Province, 5 km of Ardakan |
Nearest Cities |
|
| 1 km of Bahrghan, Fars Province | |
| 5 km of Ardakan, Fars Province | |
| 28 km South East of Kamhar, Fars Province | |
| 41 km North West of Dorudzan, Fars Province | |
| 42 km North West of Banesh, Fars Province | |
| Depth | 29 km |
| Agency | |

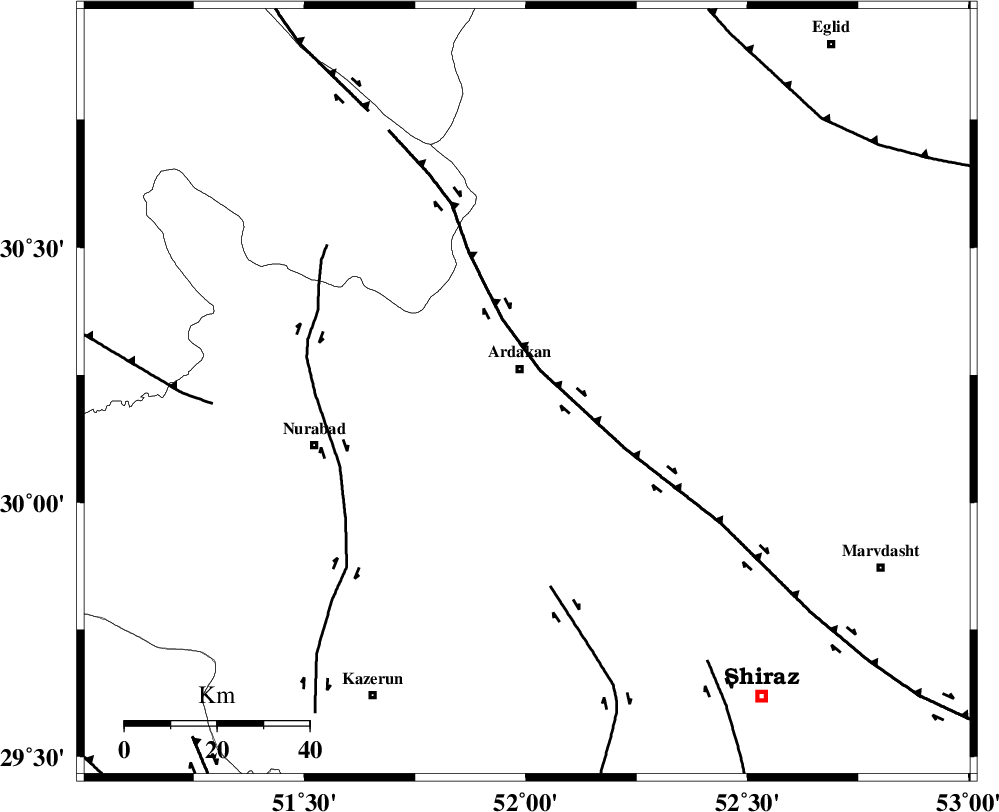

Faults within 150 km: |
|
| HZF3 (Length: 197 km) , Distance to epicenter: 6 km | |
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 43 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 44 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | 4.3 km |
| Error in Longitude | 4 km |
| Error in Depth | 13.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 105721 | IIEES | AHRM | N | 521.2 | 0.39 | 2016-04-23 16:44:59 | 2016-04-24 05:18:00 | n |
| 105722 | IIEES | AHRM | E | 494.2 | 0.31 | 2016-04-23 16:45:00 | 2016-04-24 05:18:00 | n |
| 105723 | IIEES | KRBR | E | 12.8 | 0.71 | 2016-04-23 16:46:40 | 2016-04-24 05:18:00 | n |
| 105724 | IIEES | KRBR | N | 11.7 | 0.63 | 2016-04-23 16:46:51 | 2016-04-24 05:18:00 | n |
| 105725 | IIEES | ASAO | N | 7.9 | 0.72 | 2016-04-23 16:46:23 | 2016-04-24 05:18:00 | n |
| 105726 | IIEES | ASAO | E | 8.1 | 0.22 | 2016-04-23 16:46:28 | 2016-04-24 05:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2016-04-23 16:44:37 | -0.01 | y | 165 | 205 | |
| IIEES | AHRM | N | Sg | E | 2016-04-23 16:44:56 | 0.01 | y | 165 | 205 | |
| IIEES | NASN | Z | Pn | E | 2016-04-23 16:44:56 | 2.45 | n | 4 | 296 | 15 |
| IIEES | YZKH | Z | Pn | E | 2016-04-23 16:45:04 | 4.51 | n | 4 | 345 | 45 |
| IIEES | KHMZ | Z | Pn | E | 2016-04-23 16:45:10 | 0.01 | y | 436 | 334 | |
| IIEES | KRBR | Z | Pn | E | 2016-04-23 16:45:13 | 0 | y | 459 | 92 | |
| IIEES | ASAO | Z | Pn | E | 2016-04-23 16:45:20 | -0.01 | y | 515 | 339 |
