Magnitude |
3.1 |
| Date & Time (UTC) | 2016-05-05 20:47:54.2 |
| Date & Time (Local) | 1395/2/17 01:17:54.2 |

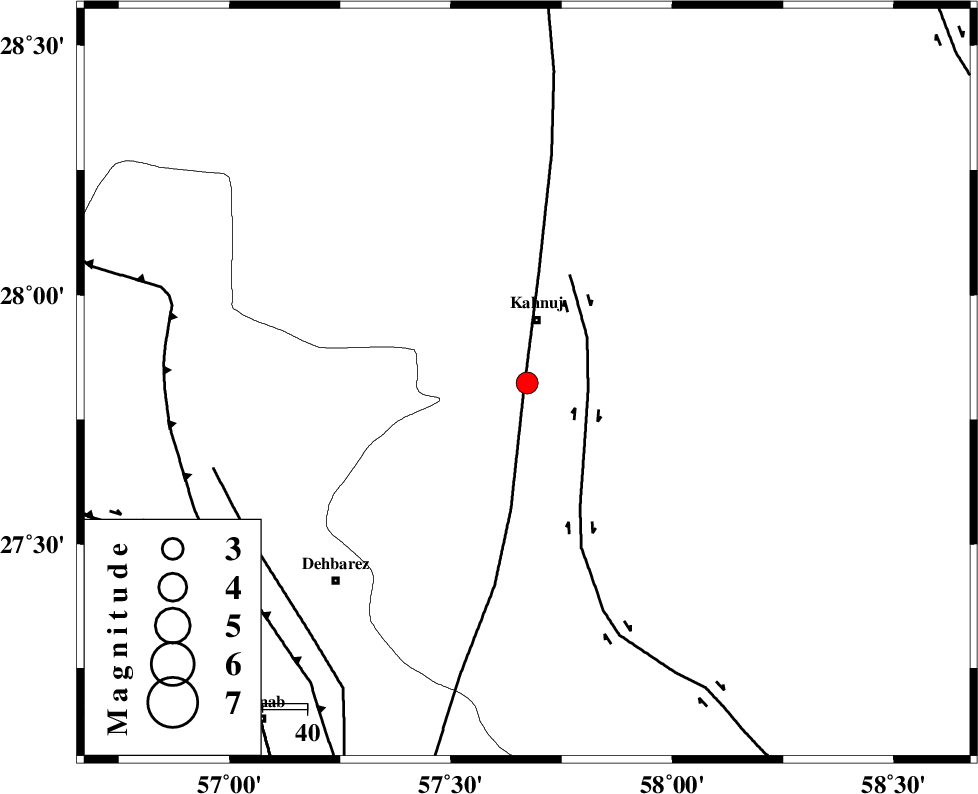

| Location | Lat:27.823 Lon: 57.672 |
| Region | Kerman Province, 14 km South of Kahnuj |
Nearest Cities |
|
| 14 km South of Kahnuj, Kerman Province | |
| 21 km North of Bargah, Kerman Province | |
| 32 km North East of Bejogan, Kerman Province | |
| 38 km North East of Nodezh, Kerman Province | |
| 39 km North East of Fariab, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 2 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 14 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 71 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 4.5 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106000 | IIEES | KRBR | N | 130.5 | 0.6 | 2016-05-05 20:49:12 | 2016-05-07 06:22:00 | n |
| 106001 | IIEES | KRBR | E | 138 | 0.55 | 2016-05-05 20:49:13 | 2016-05-07 06:22:00 | n |
| 106002 | IIEES | BSRN | E | 12.1 | 0.5 | 2016-05-05 20:50:25 | 2016-05-07 06:22:00 | n |
| 106003 | IIEES | BSRN | N | 10.8 | 0.48 | 2016-05-05 20:50:29 | 2016-05-07 06:22:00 | n |
| 106004 | IIEES | YZKH | N | 4.3 | 0.65 | 2016-05-05 20:50:55 | 2016-05-07 06:22:00 | n |
| 106005 | IIEES | YZKH | E | 4.6 | 0.48 | 2016-05-05 20:50:59 | 2016-05-07 06:22:00 | n |
| 106006 | IIEES | TABS | E | 5 | 0.82 | 2016-05-05 20:51:19 | 2016-05-07 06:22:00 | n |
| 106007 | IIEES | TABS | N | 5.1 | 0.82 | 2016-05-05 20:51:22 | 2016-05-07 06:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2016-05-05 20:48:34 | 0.21 | y | 255 | 340 | |
| IIEES | KRBR | N | Sg | E | 2016-05-05 20:49:06 | -0.21 | y | 255 | 340 | |
| IIEES | CHBR | Z | Pn | E | 2016-05-05 20:48:47 | -0.18 | y | 373 | 131 | |
| IIEES | BSRN | Z | Pn | E | 2016-05-05 20:49:01 | 0.15 | y | 480 | 17 | |
| IIEES | BSRN | E | Sg | E | 2016-05-05 20:50:08 | 0.14 | y | 480 | 17 | |
| IIEES | YZKH | Z | Pn | E | 2016-05-05 20:49:15 | 0.3 | y | 587 | 330 | |
| IIEES | TABS | Z | Pn | E | 2016-05-05 20:49:22 | -0.45 | y | 648 | 355 |
