Magnitude |
2.5 |
| Date & Time (UTC) | 2016-05-22 23:02:56.3 |
| Date & Time (Local) | 1395/3/3 03:32:56.3 |

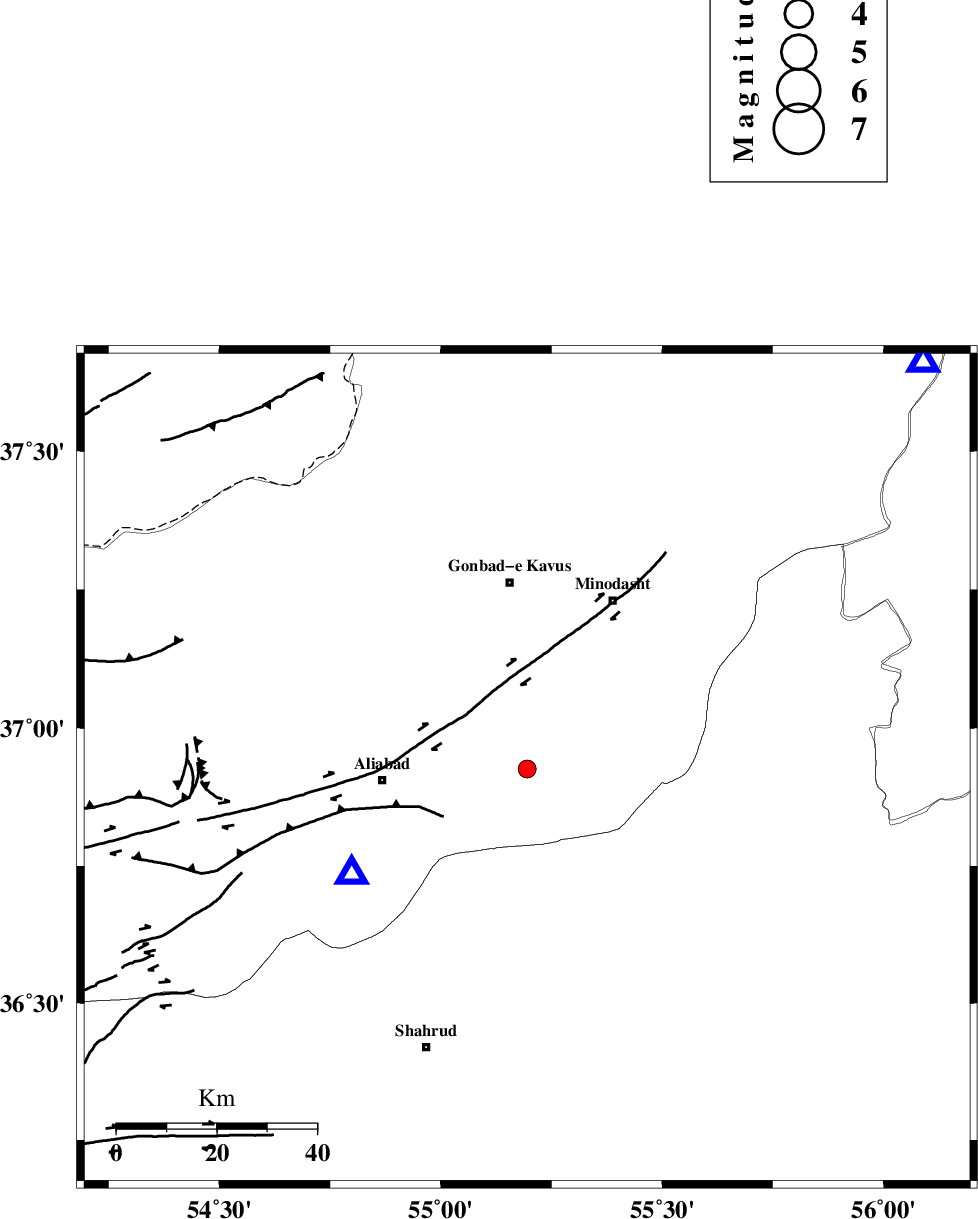

| Location | Lat:36.926 Lon: 55.195 |
| Region | Golestan Province, 11 km of Ramian |
Nearest Cities |
|
| 11 km of Ramian, Golestan Province | |
| 16 km South of Khanduz, Golestan Province | |
| 17 km South East of Deland, Golestan Province | |
| 18 km South of Azadshahr, Golestan Province | |
| 21 km West of Farsian, Golestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 17 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 22 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 22 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106220 | IIEES | MRVT | E | 239.7 | 0.25 | 2016-05-22 23:03:33 | 2016-05-23 05:46:00 | n |
| 106221 | IIEES | MRVT | N | 137.8 | 0.19 | 2016-05-22 23:03:34 | 2016-05-23 05:46:00 | n |
| 106222 | IIEES | SHRO | N | 91.2 | 0.24 | 2016-05-22 23:03:34 | 2016-05-23 05:46:00 | n |
| 106223 | IIEES | SHRO | E | 82 | 0.61 | 2016-05-22 23:03:36 | 2016-05-23 05:46:00 | n |
| 106224 | IIEES | BJRD | N | 15.1 | 0.28 | 2016-05-22 23:03:58 | 2016-05-23 05:46:00 | n |
| 106225 | IIEES | TABS | N | 7.4 | 0.3 | 2016-05-22 23:05:02 | 2016-05-23 05:46:00 | n |
| 106226 | IIEES | YZKH | E | 3.6 | 0.46 | 2016-05-22 23:05:29 | 2016-05-23 05:46:00 | n |
| 106227 | IIEES | YZKH | N | 2.9 | 0.62 | 2016-05-22 23:05:32 | 2016-05-23 05:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pg | E | 2016-05-22 23:03:15 | 0.13 | y | 114 | 44 | |
| IIEES | MRVT | N | Sg | E | 2016-05-22 23:03:29 | 0.37 | y | 114 | 44 | |
| IIEES | SHRO | Z | Pg | E | 2016-05-22 23:03:17 | 0.22 | y | 125 | 144 | |
| IIEES | BJRD | Z | Pn | E | 2016-05-22 23:03:30 | 0.39 | y | 214 | 66 | |
| IIEES | BJRD | N | Sg | E | 2016-05-22 23:03:56 | -0.75 | y | 214 | 66 | |
| IIEES | CHTH | Z | Pn | E | 2016-05-22 23:03:50 | -0.53 | y | 382 | 254 | |
| IIEES | TABS | Z | Pn | E | 2016-05-22 23:03:53 | -0.25 | y | 403 | 154 | |
| IIEES | YZKH | Z | Pn | E | 2016-05-22 23:04:07 | 0.38 | y | 506 | 186 | |
| IIEES | SHRT | Z | Pn | E | 2016-05-22 23:04:16 | 0.02 | y | 589 | 127 | |
| IIEES | GRMI | Z | Pn | E | 2016-05-22 23:04:26 | -1.54 | n | 4 | 675 | 290 |
