Magnitude |
2.7 |
| Date & Time (UTC) | 2016-05-26 17:36:59.9 |
| Date & Time (Local) | 1395/3/6 22:06:59.9 |

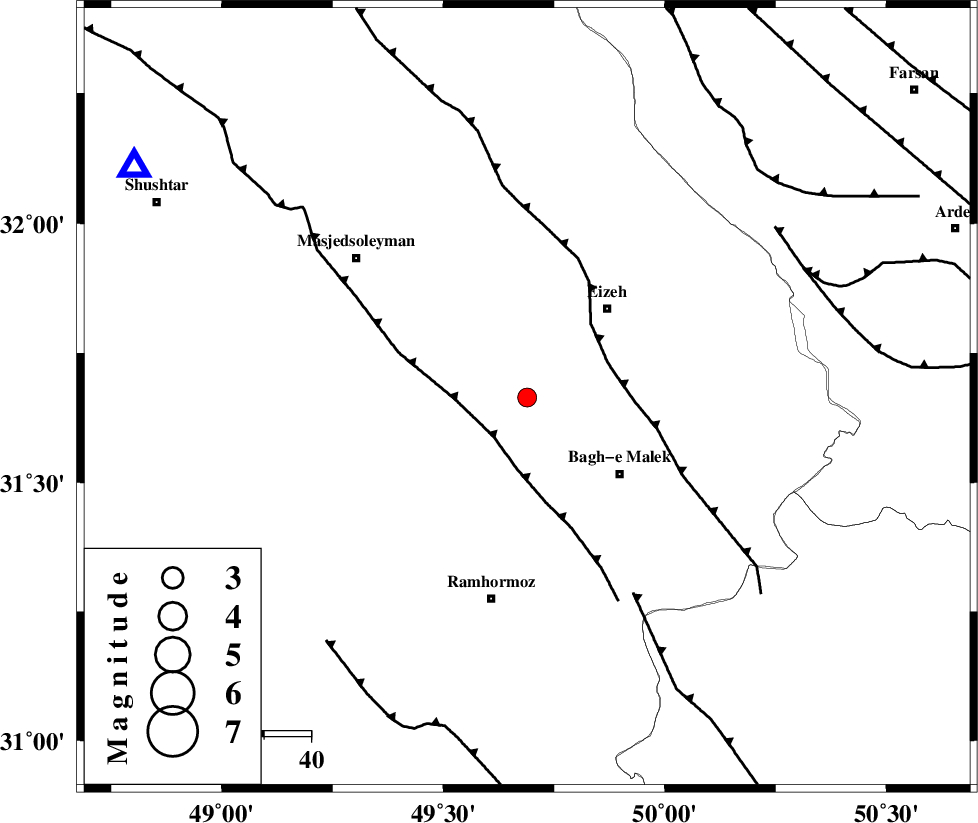

| Location | Lat:31.664 Lon: 49.689 |
| Region | Khoozestan Province, 26 km South-West of Izeh |
Nearest Cities |
|
| 16 km South of Chenarestan, Khoozestan Province | |
| 19 km North East of Jaru, Khoozestan Province | |
| 19 km North West of Ghaleh tal, Khoozestan Province | |
| 24 km North of Midavood-e sofla, Khoozestan Province | |
| 25 km South West of Rasvand, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 11 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 19 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 48 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 3.5 km |
| Error in Longitude | 7.9 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106352 | IIEES | KHMZ | E | 51.3 | 0.52 | 2016-05-26 17:38:09 | 2016-05-28 05:31:00 | n |
| 106353 | IIEES | ASAO | N | 20.1 | 0.57 | 2016-05-26 17:38:39 | 2016-05-28 05:31:00 | n |
| 106354 | IIEES | GHVR | E | 13.1 | 0.41 | 2016-05-26 17:38:44 | 2016-05-28 05:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-05-26 17:37:36 | 0.01 | y | 232 | 6 | |
| IIEES | KHMZ | E | Sg | E | 2016-05-26 17:38:05 | -0.01 | y | 232 | 6 | |
| IIEES | NASN | Z | Pn | E | 2016-05-26 17:37:48 | 0.37 | y | 320 | 66 | |
| IIEES | ASAO | Z | Pn | E | 2016-05-26 17:37:47 | 0.19 | y | 321 | 6 | |
| IIEES | GHVR | Z | Pn | E | 2016-05-26 17:37:50 | -0.33 | y | 344 | 25 | |
| IIEES | AHRM | Z | Pn | E | 2016-05-26 17:37:50 | -0.03 | y | 347 | 153 | |
| IIEES | YZKH | Z | Pn | E | 2016-05-26 17:38:05 | -0.28 | y | 470 | 79 |
