Magnitude |
3.1 |
| Date & Time (UTC) | 2016-05-30 21:59:13.6 |
| Date & Time (Local) | 1395/3/11 02:29:13.6 |

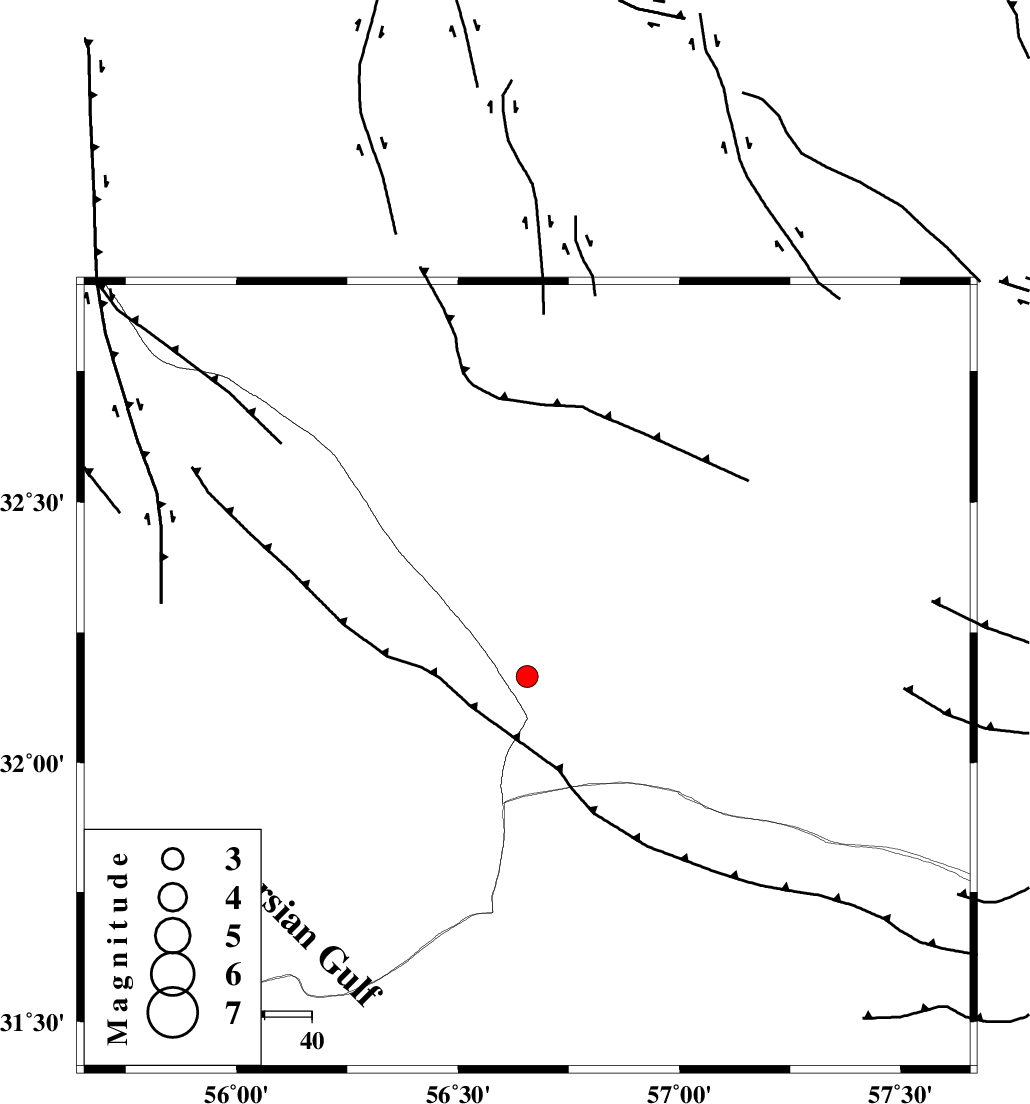

| Location | Lat:32.165 Lon: 56.656 |
| Region | Yazd Province, 101 km North-West of Ravar |
Nearest Cities |
|
| 68 km North East of Behabad, Yazd Province | |
| 68 km North East of Asfih, Yazd Province | |
| 72 km North East of Benestan, Yazd Province | |
| 75 km North West of Hoz-e qorban, Yazd Province | |
| 90 km North East of Kuhbanan, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 60 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 66 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 72 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | 3.4 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106439 | IIEES | TABS | N | 99.8 | 0.64 | 2016-05-30 22:00:12 | 2016-05-31 04:45:00 | n |
| 106440 | IIEES | YZKH | E | 105.6 | 0.34 | 2016-05-30 22:00:12 | 2016-05-31 04:45:00 | n |
| 106441 | IIEES | YZKH | N | 100.5 | 0.48 | 2016-05-30 22:00:12 | 2016-05-31 04:45:00 | n |
| 106442 | IIEES | KRBR | N | 294.8 | 0.39 | 2016-05-30 22:00:26 | 2016-05-31 04:45:00 | n |
| 106443 | IIEES | KRBR | E | 157.3 | 0.33 | 2016-05-30 22:00:26 | 2016-05-31 04:45:00 | n |
| 106444 | IIEES | SHRT | N | 16.4 | 0.46 | 2016-05-30 22:01:10 | 2016-05-31 04:45:00 | n |
| 106445 | IIEES | SHRO | E | 14.8 | 0.57 | 2016-05-30 22:01:28 | 2016-05-31 04:45:00 | n |
| 106446 | IIEES | SHRO | N | 46.4 | 0.93 | 2016-05-30 22:01:35 | 2016-05-31 04:45:00 | n |
| 106447 | IIEES | GHVR | E | 7.7 | 0.61 | 2016-05-30 22:02:14 | 2016-05-31 04:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2016-05-30 21:59:41 | 0.09 | y | 170 | 15 | |
| IIEES | TABS | N | Sg | E | 2016-05-30 22:00:02 | 0 | y | 170 | 15 | |
| IIEES | YZKH | Z | Pg | E | 2016-05-30 21:59:45 | -0.22 | y | 196 | 278 | |
| IIEES | YZKH | E | Sg | E | 2016-05-30 22:00:09 | 0.12 | y | 196 | 278 | |
| IIEES | BSRN | Z | Pn | E | 2016-05-30 21:59:50 | -0.13 | y | 234 | 95 | |
| IIEES | KRBR | Z | Pn | E | 2016-05-30 21:59:53 | 1.9 | n | 4 | 242 | 178 |
| IIEES | NASN | Z | Pn | E | 2016-05-30 22:00:12 | 4.95 | n | 4 | 368 | 282 |
| IIEES | SHRT | Z | Pn | E | 2016-05-30 22:00:08 | 0.34 | y | 378 | 63 | |
| IIEES | SHRO | Z | Pn | E | 2016-05-30 22:00:14 | -0.61 | y | 430 | 352 | |
| IIEES | GHVR | Z | Pn | E | 2016-05-30 22:00:31 | 0.36 | y | 565 | 298 | |
| IIEES | MRVT | Z | Pn | E | 2016-05-30 22:00:37 | 0.31 | y | 612 | 355 | |
| IIEES | BJRD | Z | Pn | E | 2016-05-30 22:00:37 | -0.16 | y | 618 | 6 | |
| IIEES | ASAO | Z | Pn | E | 2016-05-30 22:00:44 | 0.04 | y | 671 | 295 |
