Magnitude |
3.2 |
| Date & Time (UTC) | 2016-06-09 21:10:24.9 |
| Date & Time (Local) | 1395/3/21 01:40:24.9 |
| Location | Lat:29.096 Lon: 58.365 |
| Region | Kerman Province, 2 km of Bam |
Nearest Cities |
|
| 2 km of Bam, Kerman Province | |
| 5 km of Poshtrud, Kerman Province | |
| 6 km North of Baravat, Kerman Province | |
| 28 km North West of Abshur-e nezamabad, Kerman Province | |
| 30 km North West of Kruk, Kerman Province | |
| Depth | 18 km |
| Agency | |

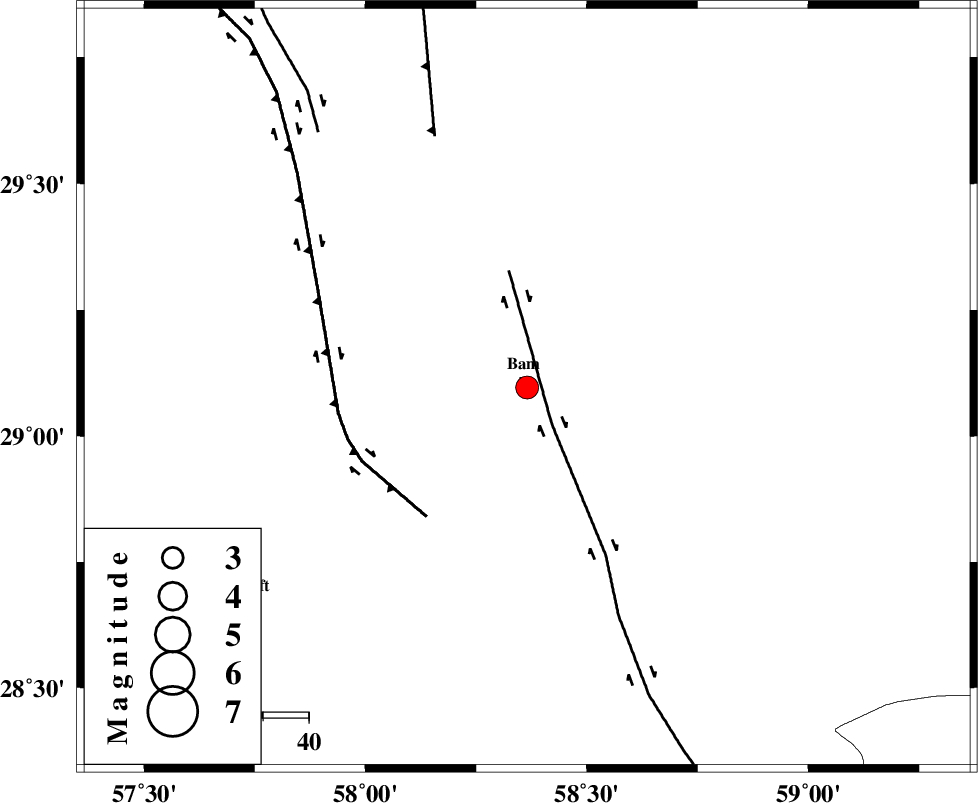

Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 10 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 36 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 59 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 4.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106689 | IIEES | KRBR | N | 347.3 | 0.34 | 2016-06-09 21:11:19 | 2016-06-11 05:57:00 | n |
| 106690 | IIEES | KRBR | E | 497.2 | 0.15 | 2016-06-09 21:11:20 | 2016-06-11 05:57:00 | n |
| 106691 | IIEES | BSRN | E | 44.7 | 0.36 | 2016-06-09 21:12:00 | 2016-06-11 05:57:00 | n |
| 106692 | IIEES | TABS | E | 8.5 | 0.39 | 2016-06-09 21:12:58 | 2016-06-11 05:57:00 | n |
| 106693 | IIEES | TABS | N | 13.5 | 0.45 | 2016-06-09 21:13:04 | 2016-06-11 05:57:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-06-09 21:10:55 | 0.04 | y | 184 | 303 | |
| IIEES | KRBR | N | Sg | E | 2016-06-09 21:11:17 | 0.01 | y | 184 | 303 | |
| IIEES | ZHSF | Z | Pn | E | 2016-06-09 21:11:02 | 0.08 | y | 241 | 76 | |
| IIEES | ZHSF | N | S | E | 2016-06-09 21:11:29 | 0.01 | y | 241 | 76 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-09 21:11:12 | -0.07 | y | 326 | 13 | |
| IIEES | BSRN | N | Sg | E | 2016-06-09 21:11:56 | 0.07 | y | 326 | 13 | |
| IIEES | YZKH | Z | Pn | E | 2016-06-09 21:11:49 | 13.28 | n | 4 | 514 | 316 |
| IIEES | TABS | Z | Pn | E | 2016-06-09 21:11:36 | 0.02 | y | 519 | 347 | |
| IIEES | SHRT | Z | Pn | E | 2016-06-09 21:11:38 | -0.24 | y | 537 | 19 |
