Magnitude |
2.6 |
| Date & Time (UTC) | 2016-06-13 00:32:16.9 |
| Date & Time (Local) | 1395/3/24 05:02:16.9 |

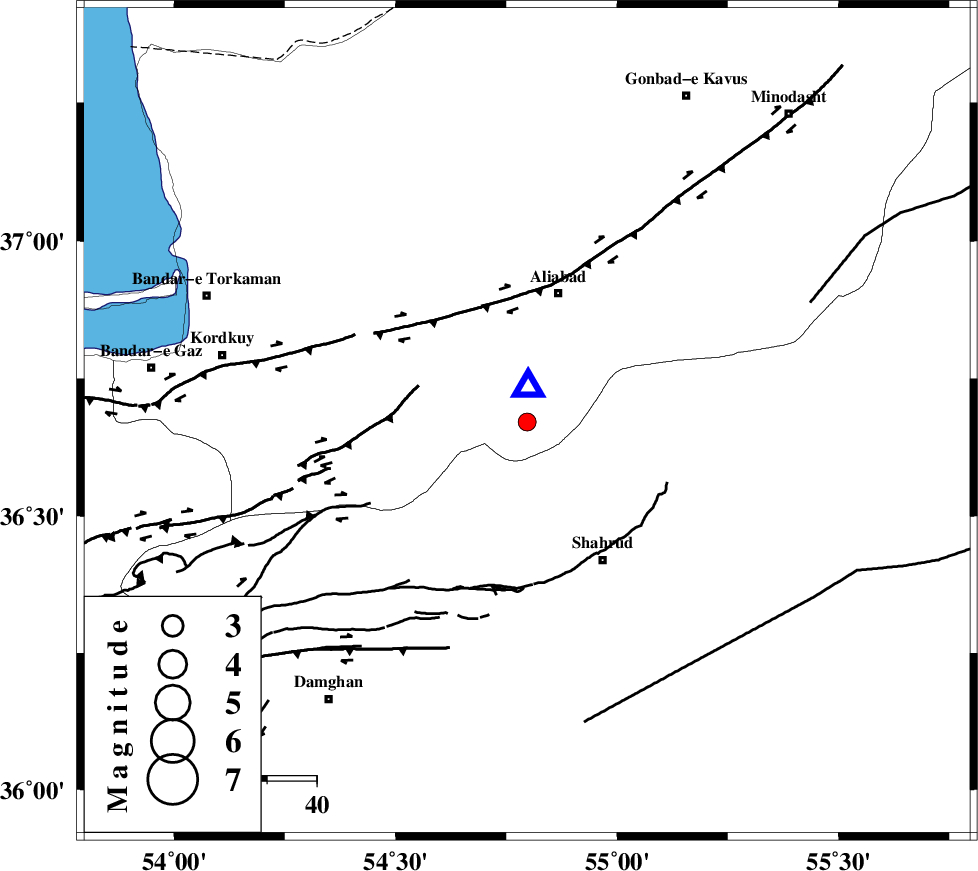

| Location | Lat:36.671 Lon: 54.797 |
| Region | Golestan Province, 27 km South of Ali Abad |
Nearest Cities |
|
| 25 km North East of Majen, Semnan Province | |
| 27 km South of Ali Abad, Golestan Province | |
| 28 km North West of Qaleh-ye nokharqan, Semnan Province | |
| 28 km North West of Bastam, Semnan Province | |
| 30 km South East of Jalin olia, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 13 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 27 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 33 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106767 | IIEES | MRVT | N | 92.6 | 0.27 | 2016-06-13 00:33:08 | 2016-06-13 04:53:00 | n |
| 106768 | IIEES | MRVT | E | 84 | 0.2 | 2016-06-13 00:33:09 | 2016-06-13 04:53:00 | n |
| 106769 | IIEES | TABS | N | 5.9 | 0.52 | 2016-06-13 00:34:23 | 2016-06-13 04:53:00 | n |
| 106770 | IIEES | YZKH | E | 4.1 | 0.23 | 2016-06-13 00:34:17 | 2016-06-13 04:53:00 | n |
| 106771 | IIEES | YZKH | N | 5.9 | 0.47 | 2016-06-13 00:34:38 | 2016-06-13 04:53:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SHRO | Z | Pg | E | 2016-06-13 00:32:38 | -0.22 | y | 132 | 124 | |
| IIEES | MRVT | Z | Pg | E | 2016-06-13 00:32:42 | -0.36 | y | 159 | 46 | |
| IIEES | BJRD | Z | Pn | E | 2016-06-13 00:32:57 | 0.47 | y | 258 | 63 | |
| IIEES | BJRD | N | Sg | E | 2016-06-13 00:33:29 | 0.01 | y | 258 | 63 | |
| IIEES | TABS | Z | Pn | E | 2016-06-13 00:33:13 | 0.06 | y | 396 | 147 | |
| IIEES | NASN | Z | Pn | E | 2016-06-13 00:33:31 | 8.18 | n | 4 | 466 | 204 |
| IIEES | YZKH | Z | Pn | E | 2016-06-13 00:33:23 | -0.11 | y | 475 | 182 | |
| IIEES | SHRT | Z | Pn | E | 2016-06-13 00:33:39 | 0.13 | y | 602 | 122 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-13 00:33:46 | 0.14 | y | 656 | 141 |
