Magnitude |
4.3 |
| Date & Time (UTC) | 2016-06-22 23:14:25.3 |
| Date & Time (Local) | 1395/4/3 03:44:25.3 |
| Location | Lat:33.124 Lon: 47.396 |
| Region | Ilam Province, 8 km of Darreh Shahr |
Nearest Cities |
|
| 8 km of Dashtabad-e olia, Ilam Province | |
| 8 km of Darreh Shahr, Ilam Province | |
| 19 km South of Chaqabol, Lorestan Province | |
| 23 km North of Abdanan, Ilam Province | |
| 23 km South of Suri, Lorestan Province | |
| Depth | 15 km |
| Agency | |

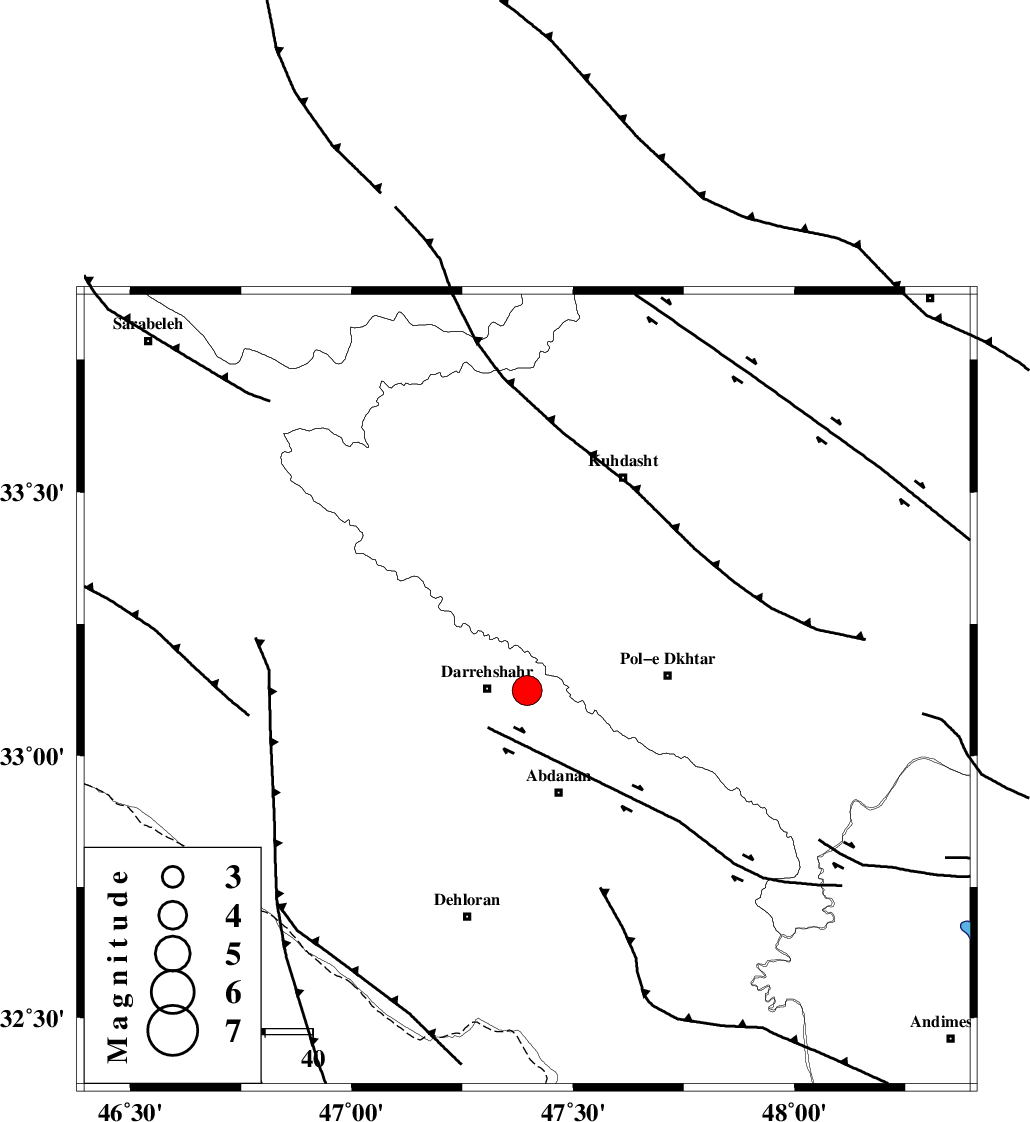

Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 11 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 44 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 69 km | |
| Number of Phases | 18 |
| RMS | 0.7 |
| Number of Stations | 17 |
| Error in Latitude | 8 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106968 | IIEES | SNGE | E | 1278.6 | 0.52 | 2016-06-22 23:15:32 | 2016-06-25 06:30:00 | n |
| 106969 | IIEES | KHMZ | E | 1079 | 0.34 | 2016-06-22 23:15:41 | 2016-06-25 06:30:00 | n |
| 106970 | IIEES | ASAO | E | 1425.9 | 0.68 | 2016-06-22 23:15:45 | 2016-06-25 06:30:00 | n |
| 106971 | IIEES | ASAO | N | 1459.6 | 0.55 | 2016-06-22 23:15:46 | 2016-06-25 06:30:00 | n |
| 106972 | IIEES | GHVR | E | 480 | 0.29 | 2016-06-22 23:16:07 | 2016-06-25 06:30:00 | n |
| 106973 | IIEES | GHVR | N | 289.3 | 0.5 | 2016-06-22 23:16:19 | 2016-06-25 06:30:00 | n |
| 106974 | IIEES | CHTH | E | 241.6 | 0.69 | 2016-06-22 23:16:21 | 2016-06-25 06:30:00 | n |
| 106975 | IIEES | CHTH | N | 354.9 | 0.54 | 2016-06-22 23:16:21 | 2016-06-25 06:30:00 | n |
| 106976 | IIEES | AHRM | N | 156.2 | 0.52 | 2016-06-22 23:17:43 | 2016-06-25 06:30:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2016-06-22 23:15:00 | -0.1 | y | 218 | 359 | |
| IIEES | KHMZ | Z | Pn | E | 2016-06-22 23:15:04 | 0.52 | y | 248 | 73 | |
| IIEES | ASAO | Z | Pn | E | 2016-06-22 23:15:10 | 0.84 | y | 290 | 56 | |
| IIEES | GHVR | Z | Pn | E | 2016-06-22 23:15:21 | 0.9 | y | 387 | 66 | |
| IIEES | ZNJK | Z | Pn | E | 2016-06-22 23:15:23 | -0.26 | y | 411 | 16 | |
| IIEES | CHTH | Z | Pn | E | 2016-06-22 23:15:29 | -0.51 | y | 461 | 47 | |
| IIEES | DAMV | Z | Pn | E | 2016-06-22 23:15:35 | -0.73 | y | 504 | 55 | |
| IIEES | NASN | Z | Pn | E | 2016-06-22 23:15:35 | -0.47 | y | 507 | 93 | |
| IIEES | AHRM | Z | Pn | E | 2016-06-22 23:15:47 | 0.27 | y | 601 | 141 | |
| IIEES | GRMI | Z | Pn | E | 2016-06-22 23:15:52 | 0.38 | y | 633 | 4 | |
| IIEES | YZKH | Z | Pn | E | 2016-06-22 23:15:56 | -1.14 | y | 679 | 95 | |
| IIEES | SHRO | Z | Pn | E | 2016-06-22 23:16:18 | -0.22 | y | 853 | 66 | |
| IIEES | TABS | Z | Pn | E | 2016-06-22 23:16:24 | -1.22 | y | 906 | 84 | |
| IIEES | MRVT | Z | Pn | E | 2016-06-22 23:16:28 | -0.48 | y | 936 | 55 | |
| IIEES | KRBR | Z | Pn | E | 2016-06-22 23:16:32 | 0.86 | y | 954 | 109 | |
| IIEES | BJRD | Z | P | E | 2016-06-22 23:16:42 | 0.01 | y | 1041 | 58 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-22 23:16:48 | -2.43 | n | 4 | 1109 | 93 |
| IIEES | SHRT | Z | P | E | 2016-06-22 23:17:01 | -0.96 | y | 1200 | 84 |
