Magnitude |
2.4 |
| Date & Time (UTC) | 2016-06-30 08:43:04.4 |
| Date & Time (Local) | 1395/4/10 13:13:04.4 |

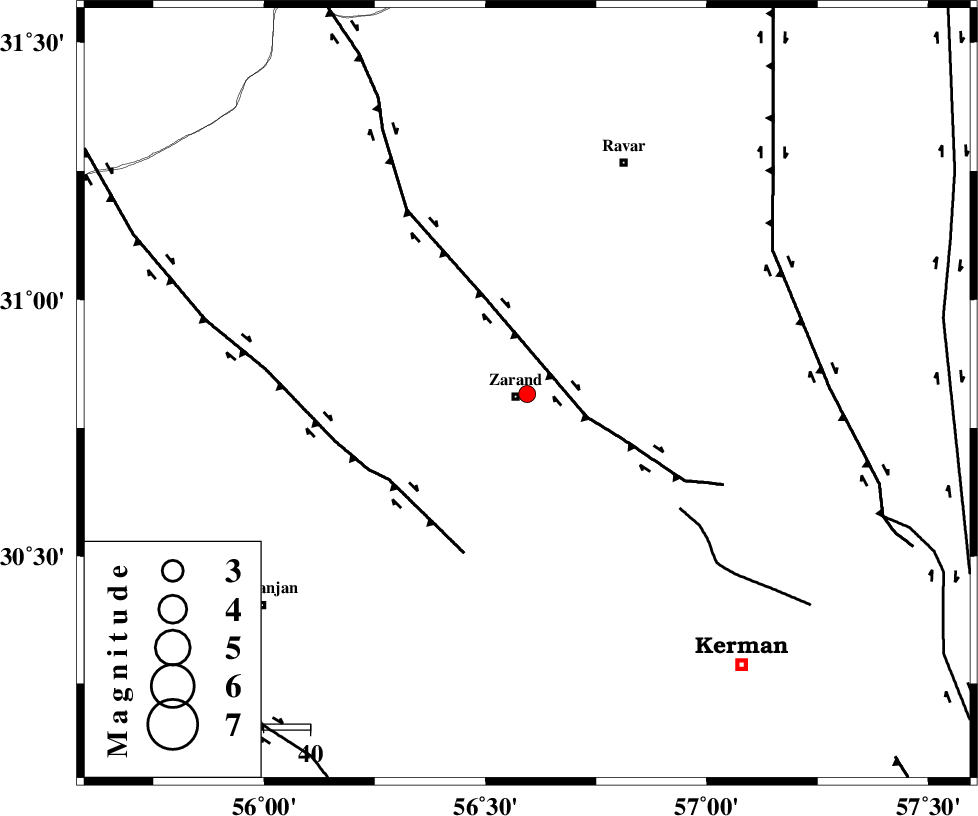

| Location | Lat:30.816 Lon: 56.594 |
| Region | Kerman Province, 3 km of Zarand |
Nearest Cities |
|
| 3 km North of Zarand, Kerman Province | |
| 6 km North of Mohammadabad, Kerman Province | |
| 10 km North of Bahaabad, Kerman Province | |
| 18 km West of Hatkan, Kerman Province | |
| 21 km North West of Khankuk, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 14 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 35 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 41 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 4 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107307 | IIEES | KRBR | N | 97 | 0.28 | 2016-06-30 08:43:36 | 2016-07-03 06:32:00 | n |
| 107308 | IIEES | YZKH | E | 16 | 0.46 | 2016-06-30 08:44:19 | 2016-07-03 06:32:00 | n |
| 107309 | IIEES | YZKH | N | 27.6 | 0.4 | 2016-06-30 08:44:20 | 2016-07-03 06:32:00 | n |
| 107310 | IIEES | NASN | N | 3.6 | 0.45 | 2016-06-30 08:45:09 | 2016-07-03 06:32:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-06-30 08:43:20 | 0.01 | y | 93.8 | 170 | |
| IIEES | YZKH | Z | Pn | E | 2016-06-30 08:43:44 | 0.36 | y | 258 | 313 | |
| IIEES | YZKH | N | Sg | E | 2016-06-30 08:44:17 | -0.19 | y | 258 | 313 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-30 08:43:45 | -0.29 | y | 272 | 61 | |
| IIEES | TABS | Z | Pn | E | 2016-06-30 08:43:52 | 0.33 | y | 318 | 9 | |
| IIEES | NASN | Z | Pn | E | 2016-06-30 08:44:04 | -0.25 | y | 420 | 303 |
