Magnitude |
2.8 |
| Date & Time (UTC) | 2016-07-17 10:09:19.3 |
| Date & Time (Local) | 1395/4/27 14:39:19.3 |

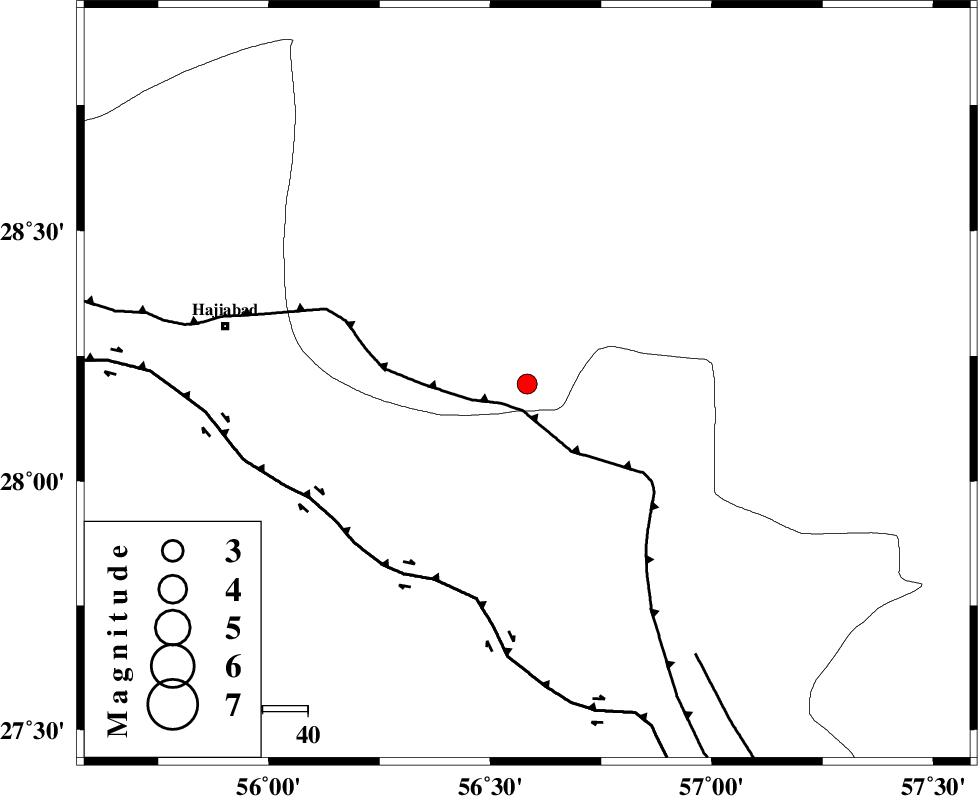

| Location | Lat:28.194 Lon: 56.583 |
| Region | Kerman Province, 68 km South-East of Hajiabad |
Nearest Cities |
|
| 33 km South West of Sarkhan, Kerman Province | |
| 35 km South East of Arzuieeh, Kerman Province | |
| 35 km South East of Shahmaran, Kerman Province | |
| 40 km North East of Fareqan, Hormozgan Province | |
| 68 km South East of Hajiabad, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 6 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 48 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 71 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 5.9 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107735 | IIEES | KRBR | E | 126.3 | 0.33 | 2016-07-17 10:10:22 | 2016-07-17 10:44:00 | n |
| 107736 | IIEES | KRBR | N | 80.1 | 0.33 | 2016-07-17 10:10:24 | 2016-07-17 10:44:00 | n |
| 107737 | IIEES | BSRN | N | 4.3 | 0.52 | 2016-07-17 10:11:47 | 2016-07-17 10:44:00 | n |
| 107738 | IIEES | TABS | N | 2.4 | 0.58 | 2016-07-17 10:12:32 | 2016-07-17 10:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-07-17 10:09:52 | -0.1 | y | 199 | 5 | |
| IIEES | KRBR | N | Sg | E | 2016-07-17 10:10:16 | 0.09 | y | 199 | 5 | |
| IIEES | ZHSF | Z | Pn | E | 2016-07-17 10:10:21 | 0.19 | y | 438 | 68 | |
| IIEES | BSRN | Z | Pn | E | 2016-07-17 10:10:27 | -0.33 | y | 485 | 30 | |
| IIEES | YZKH | Z | Pn | E | 2016-07-17 10:10:29 | -0.24 | y | 503 | 338 | |
| IIEES | TABS | Z | Pn | E | 2016-07-17 10:10:42 | 0.18 | y | 607 | 5 | |
| IIEES | NASN | Z | Pn | E | 2016-07-17 10:10:45 | 0.31 | y | 626 | 326 |
