Magnitude |
3 |
| Date & Time (UTC) | 2016-07-19 18:22:55.7 |
| Date & Time (Local) | 1395/4/29 22:52:55.7 |

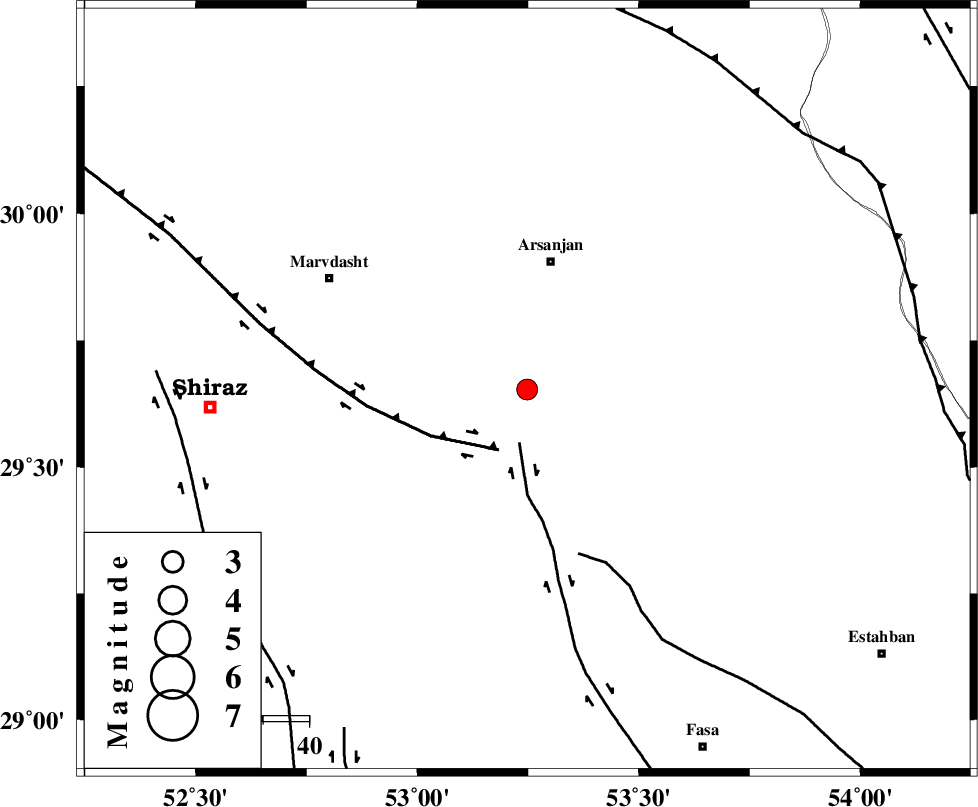

| Location | Lat:29.653 Lon: 53.248 |
| Region | Fars Province, 29 km South of Arsanjan |
Nearest Cities |
|
| 8 km North of Dehqanan, Fars Province | |
| 10 km of Shurab, Fars Province | |
| 12 km North of Sofla, Fars Province | |
| 13 km South of Khabriz, Fars Province | |
| 14 km North of Kafdahak, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 12 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 15 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 38 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107854 | IIEES | KRBR | N | 43 | 0.55 | 2016-07-19 18:24:41 | 2016-07-20 06:15:00 | n |
| 107855 | IIEES | KRBR | E | 35.6 | 0.7 | 2016-07-19 18:24:43 | 2016-07-20 06:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2016-07-19 18:23:29 | -0.06 | y | 209 | 246 | |
| IIEES | YZKH | Z | Pn | E | 2016-07-19 18:23:44 | -0.3 | y | 329 | 23 | |
| IIEES | KRBR | Z | Pn | E | 2016-07-19 18:23:46 | 0.03 | y | 342 | 83 | |
| IIEES | NASN | Z | Pn | E | 2016-07-19 18:23:47 | 0.13 | y | 351 | 353 | |
| IIEES | TABS | Z | Pn | E | 2016-07-19 18:24:14 | -0.1 | y | 575 | 39 | |
| IIEES | BSRN | Z | Pn | E | 2016-07-19 18:24:20 | 0.25 | y | 618 | 64 | |
| IIEES | ASAO | Z | Pn | E | 2016-07-19 18:24:21 | 0.2 | y | 622 | 332 |
