Magnitude |
2.8 |
| Date & Time (UTC) | 2016-08-24 06:48:30.8 |
| Date & Time (Local) | 1395/6/3 11:18:30.8 |

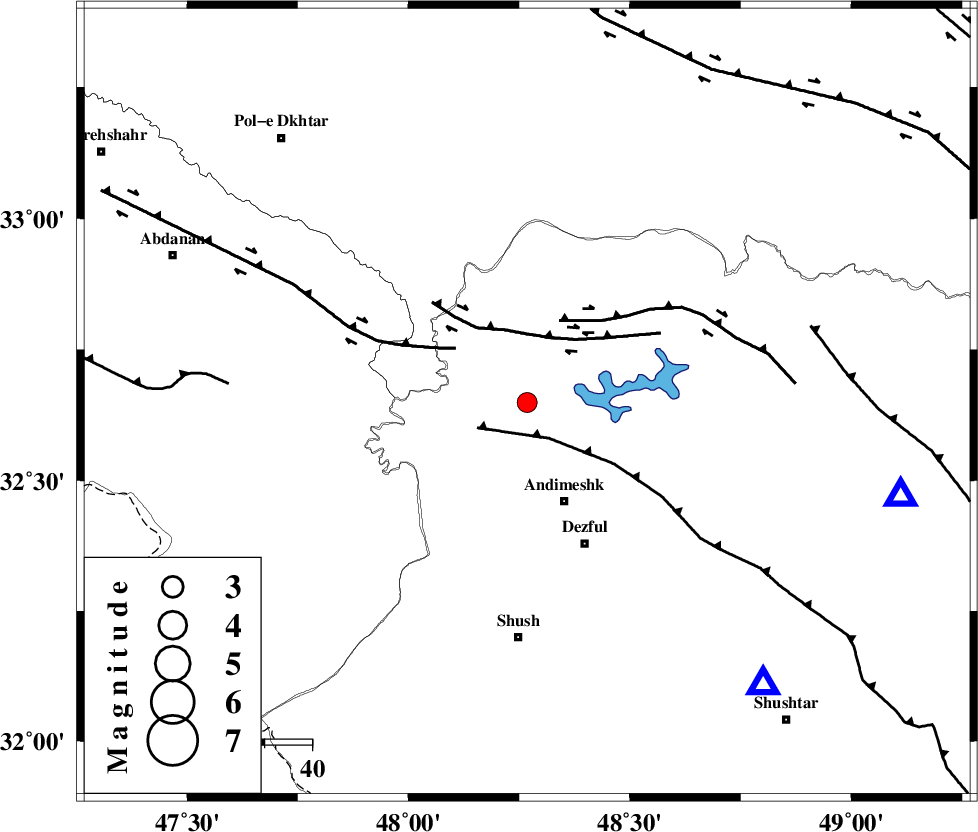

| Location | Lat:32.649 Lon: 48.268 |
| Region | Khoozestan Province, 22 km North of Andimeshk |
Nearest Cities |
|
| 4 km of Hoseinieh, Khoozestan Province | |
| 12 km South of Bidruyeh, Khoozestan Province | |
| 15 km South of Sorkhakan, Khoozestan Province | |
| 22 km North of Andimeshk, Khoozestan Province | |
| 32 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 9 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 15 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 19 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 8 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 108738 | IIEES | ASAO | E | 56 | 0.53 | 2016-08-24 06:49:53 | 2016-08-24 10:11:00 | n |
| 108739 | IIEES | ASAO | N | 50.8 | 0.58 | 2016-08-24 06:49:53 | 2016-08-24 10:11:00 | n |
| 108740 | IIEES | SNGE | E | 34.9 | 0.46 | 2016-08-24 06:49:54 | 2016-08-24 10:11:00 | n |
| 108741 | IIEES | SNGE | N | 24.8 | 0.46 | 2016-08-24 06:50:00 | 2016-08-24 10:11:00 | n |
| 108742 | IIEES | GHVR | N | 17.8 | 0.59 | 2016-08-24 06:50:18 | 2016-08-24 10:11:00 | n |
| 108743 | IIEES | GHVR | E | 15.8 | 0.66 | 2016-08-24 06:50:24 | 2016-08-24 10:11:00 | n |
| 108744 | IIEES | DAMV | E | 9.1 | 0.4 | 2016-08-24 06:50:30 | 2016-08-24 10:11:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-08-24 06:49:03 | -0.07 | y | 199 | 52 | |
| IIEES | KHMZ | E | Sg | E | 2016-08-24 06:49:27 | 0.1 | y | 199 | 52 | |
| IIEES | ASAO | Z | Pn | E | 2016-08-24 06:49:11 | 0.19 | y | 266 | 37 | |
| IIEES | SNGE | Z | Pn | E | 2016-08-24 06:49:14 | 0.33 | y | 284 | 343 | |
| IIEES | SNGE | E | Sg | E | 2016-08-24 06:49:50 | -0.17 | y | 284 | 343 | |
| IIEES | GHVR | Z | Pn | E | 2016-08-24 06:49:21 | 0.53 | y | 343 | 53 | |
| IIEES | NASN | Z | Pn | E | 2016-08-24 06:49:31 | -0.3 | y | 426 | 87 | |
| IIEES | CHTH | Z | Pn | E | 2016-08-24 06:49:34 | -0.06 | y | 447 | 35 | |
| IIEES | ZNJK | Z | Pn | E | 2016-08-24 06:49:34 | -0.12 | y | 448 | 5 | |
| IIEES | DAMV | Z | Pn | E | 2016-08-24 06:49:37 | -0.67 | y | 475 | 45 |
