Magnitude |
3.2 |
| Date & Time (UTC) | 2016-08-30 19:42:36.0 |
| Date & Time (Local) | 1395/6/10 00:12:36.0 |

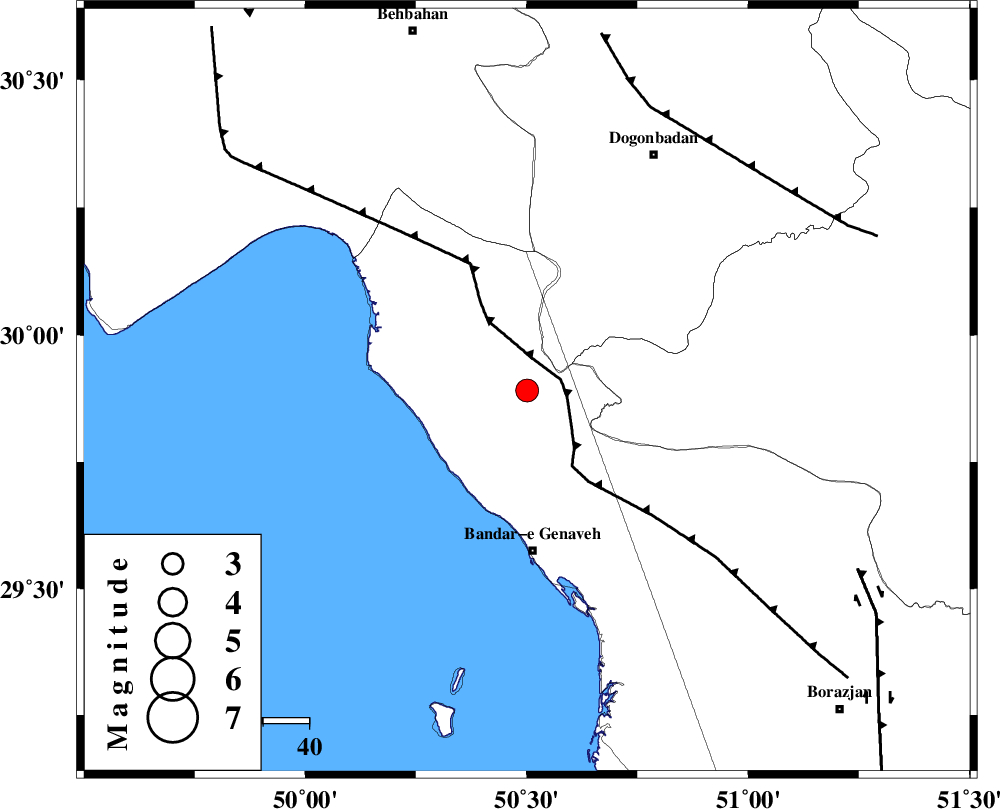

| Location | Lat:29.89 Lon: 50.501 |
| Region | Khoozestan Province, 35 km North of Bandar-e genaveh |
Nearest Cities |
|
| 24 km North East of Emamhasan, Bushehr Province | |
| 26 km South East of Siyahmakan-e bozorg, Bushehr Province | |
| 29 km North West of Mohammad salehi, Bushehr Province | |
| 35 km North of Bandar-e genaveh, Bushehr Province | |
| 43 km South East of Ameri, Bushehr Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 7 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 30 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 67 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | 4.4 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 108929 | IIEES | AHRM | N | 369.4 | 0.48 | 2016-08-30 19:43:19 | 2016-08-31 05:03:00 | n |
| 108930 | IIEES | AHRM | E | 260.5 | 0.4 | 2016-08-30 19:43:19 | 2016-08-31 05:03:00 | n |
| 108931 | IIEES | KRBR | E | 12.1 | 0.4 | 2016-08-30 19:45:04 | 2016-08-31 05:03:00 | n |
| 108932 | IIEES | KRBR | N | 11.9 | 0.62 | 2016-08-30 19:45:04 | 2016-08-31 05:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2016-08-30 19:42:58 | -0.06 | y | 137 | 146 | |
| IIEES | AHRM | N | Sg | E | 2016-08-30 19:43:15 | 0.06 | y | 137 | 146 | |
| IIEES | NASN | Z | Pn | E | 2016-08-30 19:43:32 | 0.05 | y | 390 | 34 | |
| IIEES | KHMZ | Z | Pn | E | 2016-08-30 19:43:37 | 0.02 | y | 430 | 353 | |
| IIEES | YZKH | Z | Pn | E | 2016-08-30 19:43:43 | -0.02 | y | 479 | 54 | |
| IIEES | KRBR | Z | Pn | E | 2016-08-30 19:43:58 | -0.11 | y | 604 | 87 | |
| IIEES | SNGE | Z | Pn | E | 2016-08-30 19:44:04 | 0 | y | 649 | 334 | |
| IIEES | TABS | Z | Pn | E | 2016-08-30 19:44:17 | 0.16 | y | 753 | 55 | |
| IIEES | SHRO | Z | Pn | E | 2016-08-30 19:44:29 | -0.11 | y | 852 | 36 | |
| IIEES | BSRN | Z | Pn | E | 2016-08-30 19:44:29 | -0.05 | y | 856 | 72 |
