Magnitude |
2.6 |
| Date & Time (UTC) | 2016-09-09 00:14:30.0 |
| Date & Time (Local) | 1395/6/19 04:44:30.0 |

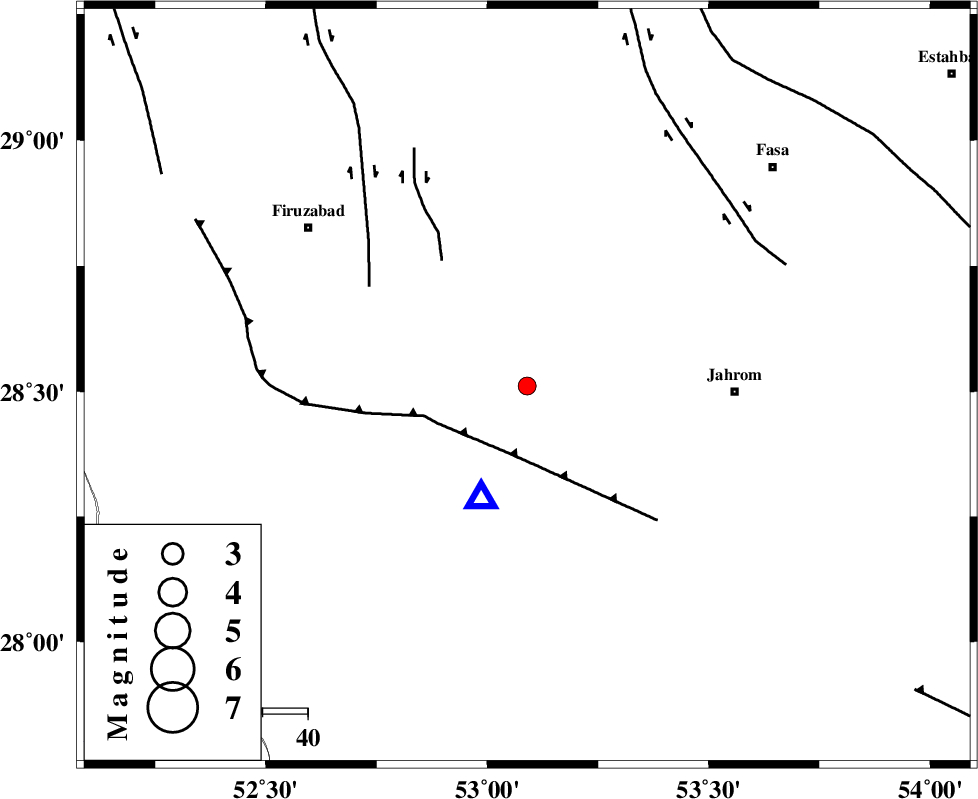

| Location | Lat:28.511 Lon: 53.09 |
| Region | Fars Province, 8 km of Qir va Karzin |
Nearest Cities |
|
| 5 km North of Fathabad, Fars Province | |
| 8 km North of Qir va Karzin, Fars Province | |
| 11 km North of Shahrak-e jonubi, Fars Province | |
| 16 km South of Shaghun, Fars Province | |
| 25 km South East of Duzeh, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 16 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 33 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 41 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 8.9 km |
| Error in Longitude | 2 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 109086 | IIEES | AHRM | N | 96.6 | 0.62 | 2016-09-09 00:15:32 | 2016-09-10 06:22:00 | n |
| 109087 | IIEES | KRBR | E | 9.1 | 0.58 | 2016-09-09 00:16:36 | 2016-09-10 06:22:00 | n |
| 109088 | IIEES | KRBR | N | 9.1 | 0.5 | 2016-09-09 00:16:39 | 2016-09-10 06:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2016-09-09 00:14:59 | -0.19 | y | 180 | 283 | |
| IIEES | AHRM | N | Sg | E | 2016-09-09 00:15:21 | 0 | y | 180 | 283 | |
| IIEES | KRBR | Z | Pn | E | 2016-09-09 00:15:26 | 0.28 | y | 392 | 65 | |
| IIEES | KRBR | E | Sg | E | 2016-09-09 00:16:19 | -0.31 | y | 392 | 65 | |
| IIEES | YZKH | Z | Pn | E | 2016-09-09 00:15:34 | 0.37 | y | 454 | 18 | |
| IIEES | NASN | Z | Pn | E | 2016-09-09 00:15:36 | -0.14 | y | 476 | 357 | |
| IIEES | KHMZ | Z | Pn | E | 2016-09-09 00:15:58 | 0.08 | y | 652 | 334 |
