eventspec – IIEES Earthquake Process Program

Magnitude	3.2
Date & Time (UTC)	2016-10-04 16:05:47.4
Date & Time (Local)	1395/7/13 19:35:47.4

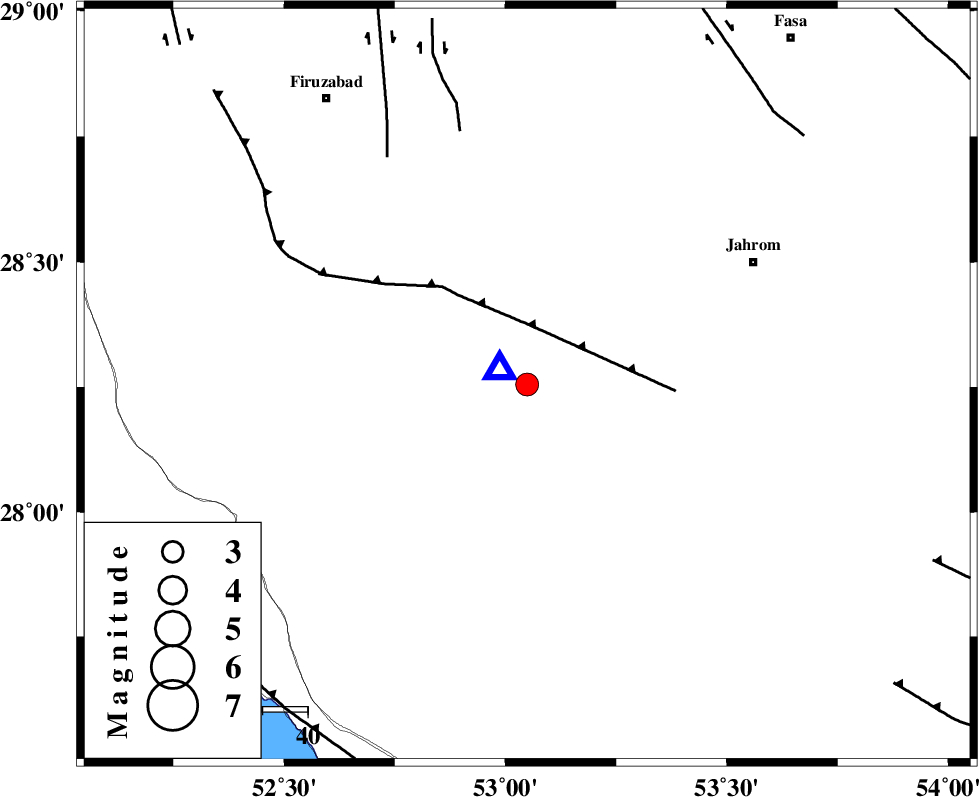

Location	Lat:28.255 Lon: 53.049
Region	Fars Province, 23 km South of Qir va Karzin
Nearest Cities
	14 km North of Seyfabad, Fars Province
	18 km South of Shahrak-e jonubi, Fars Province
	23 km South of Qir va Karzin, Fars Province
	26 km South of Fathabad, Fars Province
	30 km South West of Mobarakabad, Fars Province
Depth	18 km
Agency
Faults within 150 km:
	QIR_F (Length: 130 km) , Distance to epicenter: 13 km
	SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 58 km
	SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 59 km
Number of Phases	10
RMS	0.1
Number of Stations	9
Error in Latitude	9.5 km
Error in Longitude	4.1 km
Error in Depth	9.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
109709	IIEES	AHRM	N	301	0.45	2016-10-04 16:06:42	2016-10-05 06:59:00	n
109710	IIEES	KRBR	E	34.5	0.75	2016-10-04 16:07:58	2016-10-05 06:59:00	n
109711	IIEES	KRBR	N	26.3	0.42	2016-10-04 16:08:02	2016-10-05 06:59:00	n
109712	IIEES	NASN	N	12.4	0.48	2016-10-04 16:07:53	2016-10-05 06:59:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	AHRM	Z	Pg	E	2016-10-04 16:06:17	0	y		184	292
IIEES	AHRM	N	Sg	E	2016-10-04 16:06:39	-0.01	y		184	292
IIEES	KRBR	Z	Pn	E	2016-10-04 16:06:45	0.02	y		409	61
IIEES	YZKH	Z	Pn	E	2016-10-04 16:06:54	0.17	y		482	18
IIEES	NASN	Z	Pn	E	2016-10-04 16:06:57	-0.49	n	4	504	357
IIEES	KHMZ	Z	Pn	E	2016-10-04 16:07:18	-0.13	y		676	335
IIEES	TABS	Z	Pn	E	2016-10-04 16:07:23	-0.14	y		713	32
IIEES	ASAO	Z	Pn	E	2016-10-04 16:07:28	0.08	y		755	338
IIEES	SHRO	Z	Pn	E	2016-10-04 16:07:46	-0.18	y		904	17
IIEES	SNGE	Z	Pn	E	2016-10-04 16:07:50	0.07	y		931	326
