Magnitude |
3.5 |
| Date & Time (UTC) | 2016-10-12 21:59:24.9 |
| Date & Time (Local) | 1395/7/22 01:29:24.9 |

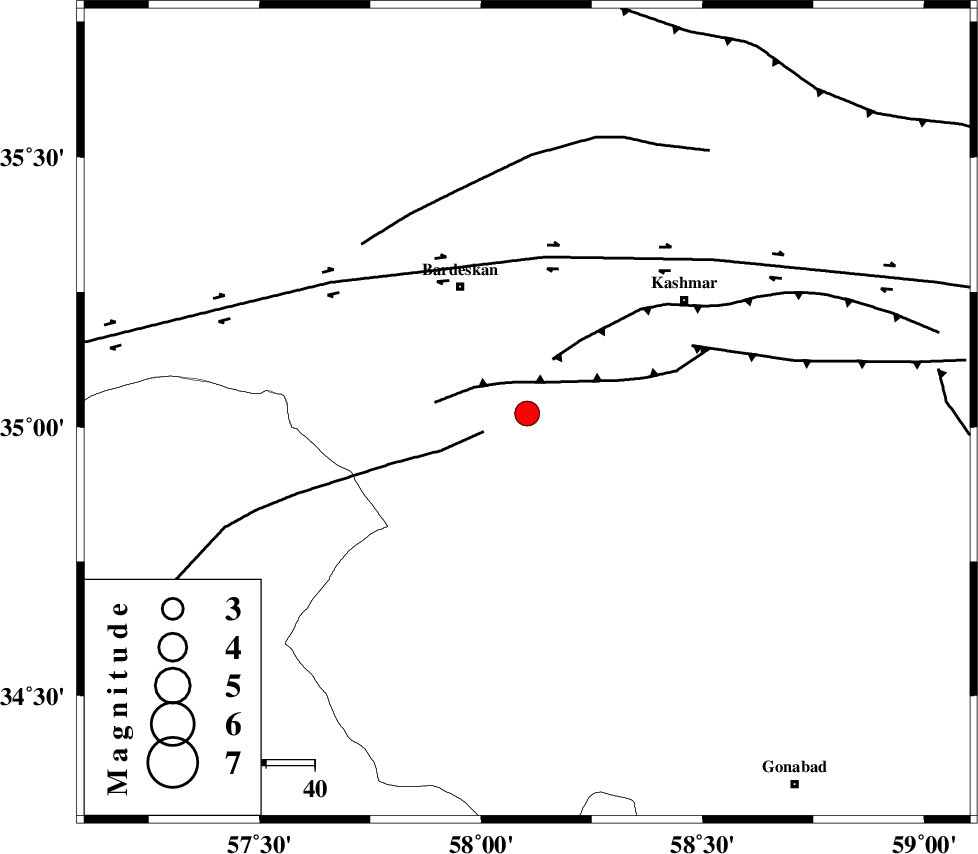

| Location | Lat:35.025 Lon: 58.104 |
| Region | Khorasan(center) Province, 30 km South-East of Bardeskan |
Nearest Cities |
|
| 20 km South of Konder, Khorasan(center) Province | |
| 21 km South East of Shahrabad, Khorasan(center) Province | |
| 30 km South East of Bardeskan, Khorasan(center) Province | |
| 32 km South West of Khalilabad, Khorasan(center) Province | |
| 38 km South West of Kasrineh, Khorasan(center) Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MEHDIABAD_F (Length: 64 km) , Distance to epicenter: 7 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 10 km | |
| KASHMAR_F (Length: 91 km) , Distance to epicenter: 12 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | 4 km |
| Error in Longitude | 4 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 109956 | IIEES | TABS | E | 333.4 | 0.28 | 2016-10-12 22:00:20 | 2016-10-15 11:46:00 | n |
| 109957 | IIEES | TABS | N | 781.8 | 0.55 | 2016-10-12 22:00:20 | 2016-10-15 11:46:00 | n |
| 109958 | IIEES | SHRO | E | 252.8 | 0.41 | 2016-10-12 22:00:27 | 2016-10-15 11:46:00 | n |
| 109959 | IIEES | SHRO | N | 195.5 | 0.44 | 2016-10-12 22:00:27 | 2016-10-15 11:46:00 | n |
| 109960 | IIEES | SHRT | E | 538.1 | 0.41 | 2016-10-12 22:00:39 | 2016-10-15 11:46:00 | n |
| 109961 | IIEES | SHRT | N | 527.2 | 0.38 | 2016-10-12 22:00:39 | 2016-10-15 11:46:00 | n |
| 109962 | IIEES | BSRN | N | 37.5 | 0.57 | 2016-10-12 22:01:17 | 2016-10-15 11:46:00 | n |
| 109963 | IIEES | YZKH | N | 43.4 | 0.35 | 2016-10-12 22:01:37 | 2016-10-15 11:46:00 | n |
| 109964 | IIEES | YZKH | E | 59.5 | 0.69 | 2016-10-12 22:01:38 | 2016-10-15 11:46:00 | n |
| 109965 | IIEES | NASN | E | 9 | 0.61 | 2016-10-12 22:02:09 | 2016-10-15 11:46:00 | n |
| 109966 | IIEES | KRBR | E | 23.5 | 0.44 | 2016-10-12 22:02:13 | 2016-10-15 11:46:00 | n |
| 109967 | IIEES | KRBR | N | 28.9 | 0.62 | 2016-10-12 22:02:26 | 2016-10-15 11:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2016-10-12 21:59:54 | 0.21 | y | 177 | 211 | |
| IIEES | SHRO | Z | Pn | E | 2016-10-12 21:59:59 | -0.44 | y | 219 | 301 | |
| IIEES | SHRT | Z | Pn | E | 2016-10-12 22:00:03 | -0.21 | y | 253 | 127 | |
| IIEES | SHRT | N | Sg | E | 2016-10-12 22:00:36 | -0.21 | y | 253 | 127 | |
| IIEES | BJRD | Z | Pn | E | 2016-10-12 22:00:10 | 0.3 | y | 303 | 348 | |
| IIEES | MRVT | Z | Pn | E | 2016-10-12 22:00:15 | 0.32 | y | 344 | 329 | |
| IIEES | BSRN | Z | Pn | E | 2016-10-12 22:00:16 | 0.24 | y | 352 | 164 | |
| IIEES | YZKH | Z | Pn | E | 2016-10-12 22:00:26 | 0.1 | y | 437 | 229 | |
| IIEES | NASN | Z | Pn | E | 2016-10-12 22:00:39 | -0.95 | y | 548 | 245 | |
| IIEES | DAMV | Z | Pn | E | 2016-10-12 22:00:42 | -0.04 | y | 562 | 279 | |
| IIEES | KRBR | Z | Pn | E | 2016-10-12 22:00:44 | 0.93 | y | 573 | 193 | |
| IIEES | GHVR | Z | Pn | E | 2016-10-12 22:00:49 | -0.74 | y | 631 | 266 | |
| IIEES | CHTH | Z | Pn | E | 2016-10-12 22:00:52 | 0.33 | y | 641 | 281 | |
| IIEES | ZHSF | Z | Pn | E | 2016-10-12 22:00:53 | -0.1 | y | 651 | 157 | |
| IIEES | ASAO | Z | Pn | E | 2016-10-12 22:01:04 | 0.05 | y | 741 | 268 | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-12 22:01:07 | 0.31 | y | 762 | 262 |
