Magnitude |
3.6 |
| Date & Time (UTC) | 2016-11-02 23:23:05.4 |
| Date & Time (Local) | 1395/8/13 02:53:05.4 |

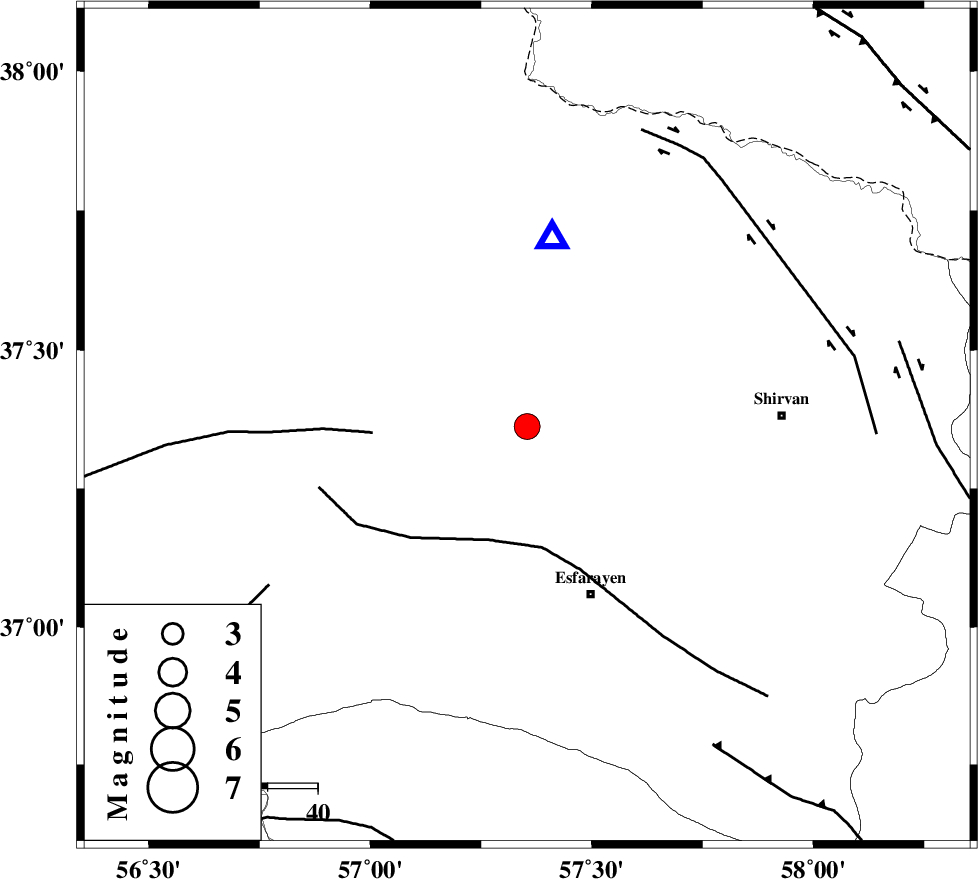

| Location | Lat:37.362 Lon: 57.354 |
| Region | Khorasan(north) Province, 12 km South of Bojnurd |
Nearest Cities |
|
| 12 km South of Bojnurd, Khorasan(north) Province | |
| 12 km South of Void, Khorasan(north) Province | |
| 21 km South West of Hesar-egarmkhanh, Khorasan(north) Province | |
| 28 km North of Eraj, Khorasan(north) Province | |
| 31 km North East of Cheharborj, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 24 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 31 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 61 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | 4.9 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110469 | IIEES | BJRD | N | 10135.8 | 0.37 | 2016-11-02 23:23:21 | 2016-11-05 06:15:00 | n |
| 110470 | IIEES | BJRD | E | 8266.8 | 0.31 | 2016-11-02 23:23:22 | 2016-11-05 06:15:00 | n |
| 110471 | IIEES | MRVT | N | 932 | 0.4 | 2016-11-02 23:23:40 | 2016-11-05 06:15:00 | n |
| 110472 | IIEES | MRVT | E | 929.6 | 0.34 | 2016-11-02 23:23:44 | 2016-11-05 06:15:00 | n |
| 110473 | IIEES | TABS | N | 112.4 | 0.46 | 2016-11-02 23:25:13 | 2016-11-05 06:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BJRD | Z | Pg | E | 2016-11-02 23:23:12 | 0.1 | y | 37.8 | 7 | |
| IIEES | MRVT | Z | Pg | E | 2016-11-02 23:23:24 | -0.44 | y | 117 | 287 | |
| IIEES | TABS | Z | Pn | E | 2016-11-02 23:24:04 | 0.2 | y | 412 | 183 | |
| IIEES | SHRT | N | Pn | E | 2016-11-02 23:24:13 | -0.29 | y | 491 | 146 | |
| IIEES | DAMV | Z | Pn | E | 2016-11-02 23:24:19 | 1.91 | n | 4 | 519 | 250 |
| IIEES | CHTH | Z | Pn | E | 2016-11-02 23:24:25 | 0.33 | y | 580 | 256 | |
| IIEES | YZKH | Z | Pn | E | 2016-11-02 23:24:28 | -0.25 | y | 606 | 205 | |
| IIEES | BSRN | Z | Pn | E | 2016-11-02 23:24:30 | -0.08 | y | 620 | 164 | |
| IIEES | GHVR | Z | Pn | E | 2016-11-02 23:24:32 | 0 | y | 637 | 242 | |
| IIEES | GIDE | Z | Pn | E | 2016-11-02 23:24:35 | 0.27 | y | 663 | 268 | |
| IIEES | ZNJK | Z | Pn | E | 2016-11-02 23:24:49 | 0.13 | y | 775 | 267 | |
| IIEES | KHMZ | Z | Pn | E | 2016-11-02 23:24:50 | -0.15 | y | 781 | 241 | |
| IIEES | KRBR | Z | Pn | E | 2016-11-02 23:24:55 | 0.62 | y | 820 | 184 | |
| IIEES | ZHSF | Z | Pn | E | 2016-11-02 23:25:06 | -0.21 | y | 916 | 159 | |
| IIEES | SNGE | Z | Pn | E | 2016-11-02 23:25:09 | 0.22 | y | 934 | 257 | |
| IIEES | MAKU | Z | Pn | E | 2016-11-02 23:25:33 | 0.36 | y | 1128 | 285 |
