Magnitude |
2.9 |
| Date & Time (UTC) | 2016-11-17 23:20:37.0 |
| Date & Time (Local) | 1395/8/28 02:50:37.0 |
| Location | Lat:31.744 Lon: 49.621 |
| Region | Khoozestan Province, 26 km -West of Izeh |
Nearest Cities |
|
| 16 km West of Chenarestan, Khoozestan Province | |
| 22 km South West of Rasvand, Khoozestan Province | |
| 23 km North of Jaru, Khoozestan Province | |
| 26 km West of Izeh, Khoozestan Province | |
| 28 km North West of Ghaleh tal, Khoozestan Province | |
| Depth | 15 km |
| Agency | |

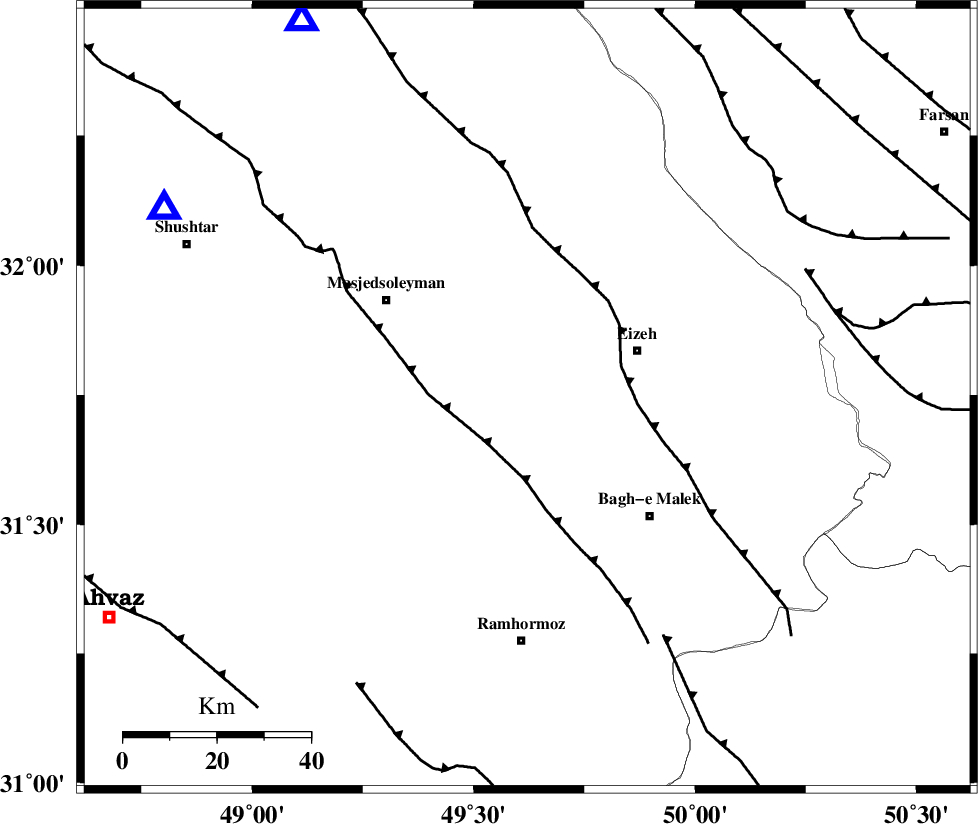

Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 13 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 21 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 59 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | 4.5 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110788 | IIEES | KHMZ | E | 72.9 | 0.62 | 2016-11-17 23:21:44 | 2016-11-19 09:35:00 | n |
| 110789 | IIEES | KHMZ | N | 40.1 | 0.49 | 2016-11-17 23:21:48 | 2016-11-19 09:35:00 | n |
| 110790 | IIEES | ASAO | N | 25.2 | 0.68 | 2016-11-17 23:22:12 | 2016-11-19 09:35:00 | n |
| 110791 | IIEES | ASAO | E | 29.6 | 0.75 | 2016-11-17 23:22:20 | 2016-11-19 09:35:00 | n |
| 110792 | IIEES | NASN | N | 15.3 | 0.43 | 2016-11-17 23:22:12 | 2016-11-19 09:35:00 | n |
| 110793 | IIEES | GHVR | E | 30.9 | 0.59 | 2016-11-17 23:22:22 | 2016-11-19 09:35:00 | n |
| 110794 | IIEES | GHVR | N | 37.8 | 0.65 | 2016-11-17 23:22:22 | 2016-11-19 09:35:00 | n |
| 110795 | IIEES | AHRM | E | 35.7 | 0.5 | 2016-11-17 23:22:10 | 2016-11-19 09:35:00 | n |
| 110796 | IIEES | AHRM | N | 36.5 | 0.42 | 2016-11-17 23:22:35 | 2016-11-19 09:35:00 | n |
| 110797 | IIEES | ILBA | N | 19.9 | 0.48 | 2016-11-17 23:22:36 | 2016-11-19 09:35:00 | n |
| 110798 | IIEES | ILBA | E | 21.4 | 0.41 | 2016-11-17 23:22:37 | 2016-11-19 09:35:00 | n |
| 110799 | IIEES | SNGE | N | 15.2 | 0.59 | 2016-11-17 23:22:48 | 2016-11-19 09:35:00 | n |
| 110800 | IIEES | SNGE | E | 15.5 | 0.47 | 2016-11-17 23:22:49 | 2016-11-19 09:35:00 | n |
| 110801 | IIEES | YZKH | E | 5 | 0.5 | 2016-11-17 23:23:06 | 2016-11-19 09:35:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2016-11-17 23:21:12 | 0.37 | y | 224 | 8 | |
| IIEES | ASAO | Z | Pn | E | 2016-11-17 23:21:24 | 0.37 | y | 313 | 7 | |
| IIEES | NASN | Z | Pn | E | 2016-11-17 23:21:25 | 0.26 | y | 322 | 68 | |
| IIEES | GHVR | Z | Pn | E | 2016-11-17 23:21:26 | 0.22 | y | 339 | 26 | |
| IIEES | AHRM | Z | Pn | E | 2016-11-17 23:21:28 | 0 | y | 358 | 153 | |
| IIEES | ILBA | Z | Pn | E | 2016-11-17 23:21:32 | 0.4 | y | 382 | 304 | |
| IIEES | SNGE | Z | Pn | E | 2016-11-17 23:21:36 | -0.9 | y | 427 | 331 | |
| IIEES | YZKH | Z | Pn | E | 2016-11-17 23:21:43 | -0.07 | y | 475 | 80 | |
| IIEES | CHTH | Z | Pn | E | 2016-11-17 23:21:44 | -0.54 | y | 482 | 16 | |
| IIEES | TABS | Z | Pn | E | 2016-11-17 23:22:15 | -0.34 | y | 734 | 71 | |
| IIEES | SHRO | Z | Pn | E | 2016-11-17 23:22:18 | -0.57 | y | 757 | 50 |
