Magnitude |
5 |
| Date & Time (UTC) | 2016-12-01 09:21:42.7 |
| Date & Time (Local) | 1395/9/11 12:51:42.7 |

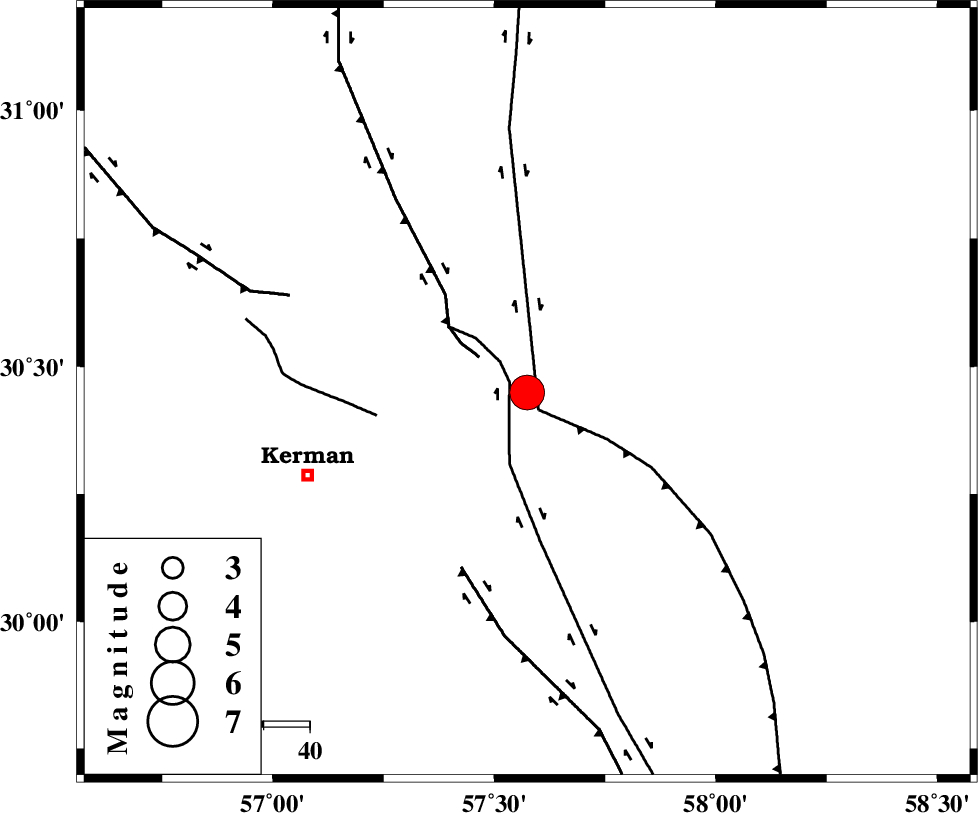

| Location | Lat:30.449 Lon: 57.574 |
| Region | Kerman Province, 51 km North-East of Kerman |
Nearest Cities |
|
| 13 km North West of Shahdad, Kerman Province | |
| 26 km North West of Estehkam, Kerman Province | |
| 28 km North of Sirch, Kerman Province | |
| 29 km East of Dehlulu, Kerman Province | |
| 38 km North of Jushan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 4 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 5 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 5 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 7 km |
| Error in Longitude | 6.6 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111104 | IIEES | KRBR | E | 45494.3 | 0.25 | 2016-12-01 09:22:11 | 2016-12-03 11:12:00 | n |
| 111105 | IIEES | KRBR | N | 57934.1 | 0.41 | 2016-12-01 09:22:11 | 2016-12-03 11:12:00 | n |
| 111106 | IIEES | YZKH | N | 2289.6 | 0.64 | 2016-12-01 09:23:33 | 2016-12-03 11:12:00 | n |
| 111107 | IIEES | YZKH | E | 2923.3 | 0.49 | 2016-12-01 09:23:35 | 2016-12-03 11:12:00 | n |
| 111108 | IIEES | TABS | N | 3457.7 | 0.62 | 2016-12-01 09:23:42 | 2016-12-03 11:12:00 | n |
| 111109 | IIEES | NASN | N | 661.7 | 0.77 | 2016-12-01 09:24:17 | 2016-12-03 11:12:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-12-01 09:21:59 | 0.44 | y | 93.9 | 237 | |
| IIEES | KRBR | N | Sg | E | 2016-12-01 09:22:10 | -0.3 | y | 93.9 | 237 | |
| IIEES | BSRN | Z | Pn | E | 2016-12-01 09:22:18 | -0.27 | y | 224 | 41 | |
| IIEES | BSRN | N | Sg | E | 2016-12-01 09:22:46 | -0.15 | y | 224 | 41 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-01 09:22:35 | 0.14 | y | 356 | 308 | |
| IIEES | TABS | Z | Pn | E | 2016-12-01 09:22:34 | -0.19 | y | 357 | 353 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-01 09:22:45 | 0.62 | y | 438 | 35 | |
| IIEES | NASN | Z | Pn | E | 2016-12-01 09:22:55 | 0.13 | y | 522 | 301 | |
| IIEES | AHRM | Z | Pn | E | 2016-12-01 09:23:08 | -0.44 | y | 632 | 255 |
