Magnitude |
3 |
| Date & Time (UTC) | 2016-12-01 19:01:19.9 |
| Date & Time (Local) | 1395/9/11 22:31:19.9 |

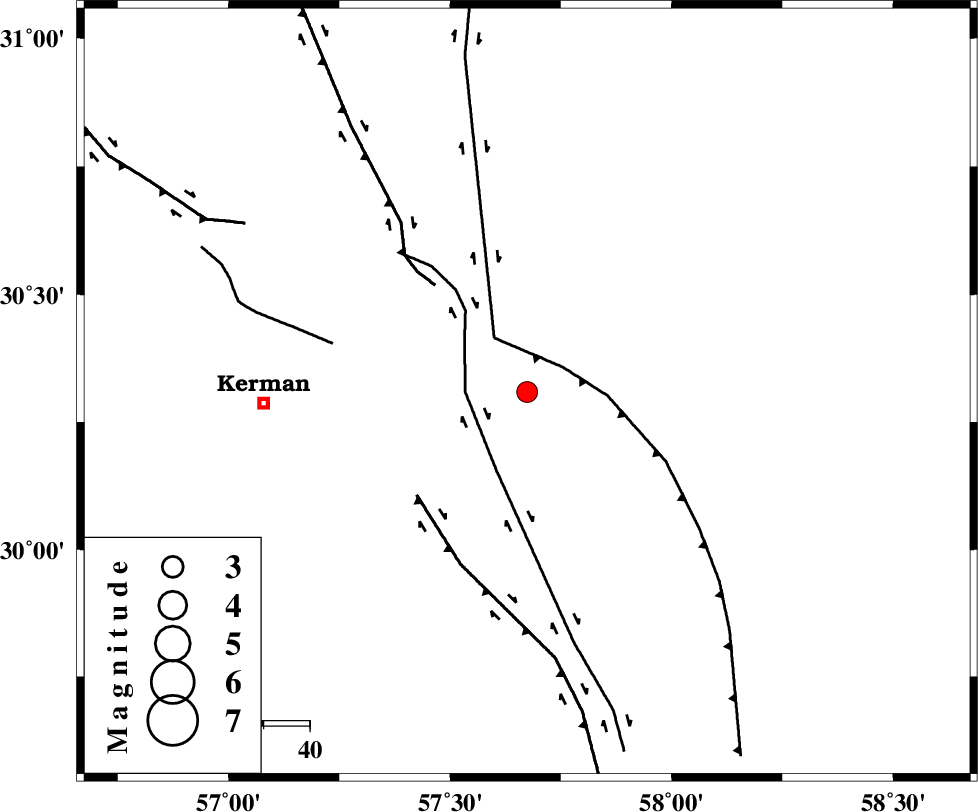

| Location | Lat:30.309 Lon: 57.674 |
| Region | Kerman Province, 57 km -East of Kerman |
Nearest Cities |
|
| 12 km South of Shahdad, Kerman Province | |
| 17 km North East of Sirch, Kerman Province | |
| 21 km South West of Estehkam, Kerman Province | |
| 23 km North of Jushan, Kerman Province | |
| 44 km South East of Dehlulu, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 9 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 13 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 14 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 5 |
| Error in Latitude | 6 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111120 | IIEES | KRBR | N | 299.3 | 0.17 | 2016-12-01 19:01:48 | 2016-12-03 11:12:00 | n |
| 111121 | IIEES | BSRN | E | 158.3 | 0.33 | 2016-12-01 19:02:26 | 2016-12-03 11:12:00 | n |
| 111122 | IIEES | BSRN | N | 118.8 | 0.25 | 2016-12-01 19:02:26 | 2016-12-03 11:12:00 | n |
| 111123 | IIEES | YZKH | E | 20.1 | 0.47 | 2016-12-01 19:03:15 | 2016-12-03 11:12:00 | n |
| 111124 | IIEES | TABS | N | 17.9 | 0.48 | 2016-12-01 19:03:19 | 2016-12-03 11:12:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-12-01 19:01:36 | 0.68 | y | 95.1 | 248 | |
| IIEES | KRBR | N | Sg | E | 2016-12-01 19:01:47 | -0.47 | y | 95.1 | 248 | |
| IIEES | BSRN | Z | Pn | E | 2016-12-01 19:01:56 | 0.65 | y | 230 | 37 | |
| IIEES | BSRN | N | Sg | E | 2016-12-01 19:02:24 | -0.21 | y | 230 | 37 | |
| IIEES | ZHSF | Z | Pn | E | 2016-12-01 19:02:05 | -0.38 | y | 309 | 104 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-01 19:02:13 | -0.04 | y | 373 | 309 | |
| IIEES | TABS | Z | Pn | E | 2016-12-01 19:02:13 | -0.34 | y | 374 | 352 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-01 19:02:23 | 1.16 | n | 4 | 445 | 33 |
