Magnitude |
3.3 |
| Date & Time (UTC) | 2016-12-19 04:48:30.8 |
| Date & Time (Local) | 1395/9/29 08:18:30.8 |

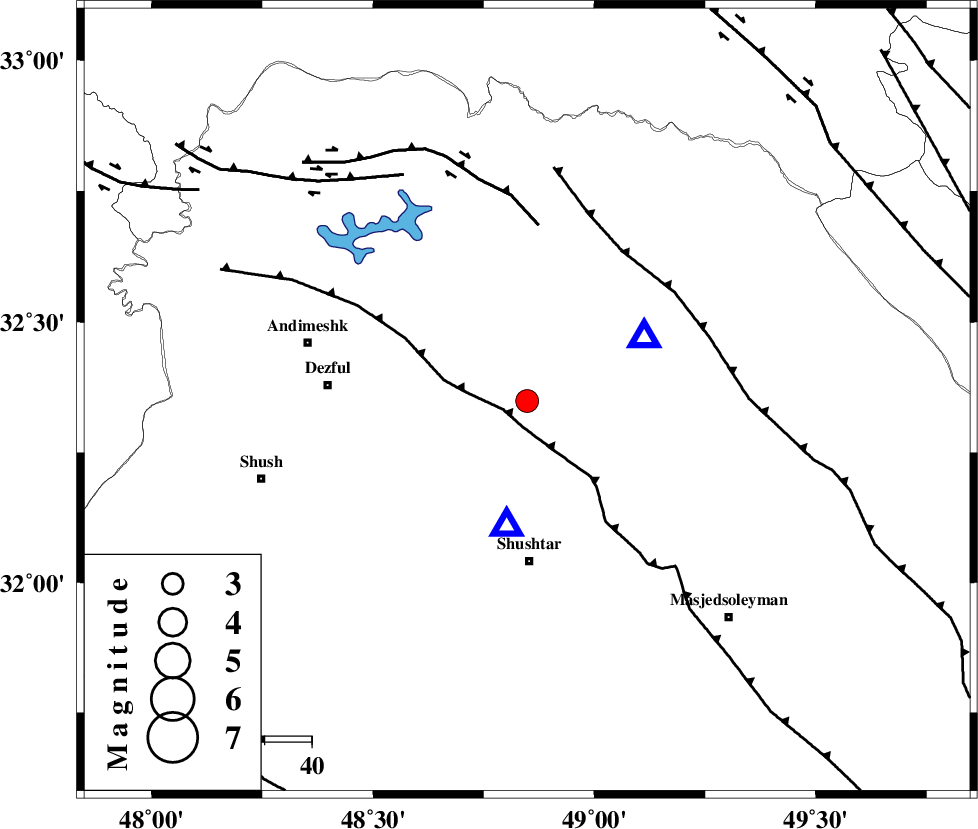

| Location | Lat:32.349 Lon: 48.848 |
| Region | Khoozestan Province, 25 km -West of Lali |
Nearest Cities |
|
| 12 km North of Gatvand, Khoozestan Province | |
| 17 km North of Samaleh, Khoozestan Province | |
| 17 km South of Sardasht, Khoozestan Province | |
| 18 km East of Mahur berenji, Khoozestan Province | |
| 25 km West of Lali, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 5 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 37 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 38 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | 6.7 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 10.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111424 | IIEES | KHMZ | E | 280.9 | 0.57 | 2016-12-19 04:49:26 | 2016-12-19 05:38:00 | n |
| 111425 | IIEES | KHMZ | N | 250.6 | 0.47 | 2016-12-19 04:49:27 | 2016-12-19 05:38:00 | n |
| 111426 | IIEES | ASAO | N | 172.1 | 0.81 | 2016-12-19 04:49:50 | 2016-12-19 05:38:00 | n |
| 111427 | IIEES | ASAO | E | 121.3 | 0.54 | 2016-12-19 04:49:53 | 2016-12-19 05:38:00 | n |
| 111428 | IIEES | ILBA | E | 130.9 | 0.39 | 2016-12-19 04:49:58 | 2016-12-19 05:38:00 | n |
| 111429 | IIEES | ILBA | N | 145.1 | 0.31 | 2016-12-19 04:49:58 | 2016-12-19 05:38:00 | n |
| 111430 | IIEES | GHVR | E | 73.7 | 0.38 | 2016-12-19 04:50:05 | 2016-12-19 05:38:00 | n |
| 111431 | IIEES | GHVR | N | 78.9 | 0.57 | 2016-12-19 04:50:12 | 2016-12-19 05:38:00 | n |
| 111432 | IIEES | SNGE | N | 82.1 | 0.39 | 2016-12-19 04:50:10 | 2016-12-19 05:38:00 | n |
| 111433 | IIEES | SNGE | E | 79.6 | 0.52 | 2016-12-19 04:50:11 | 2016-12-19 05:38:00 | n |
| 111434 | IIEES | DAMV | E | 16 | 0.44 | 2016-12-19 04:50:53 | 2016-12-19 05:38:00 | n |
| 111435 | IIEES | DAMV | N | 17.1 | 0.59 | 2016-12-19 04:50:54 | 2016-12-19 05:38:00 | n |
| 111436 | IIEES | GIDE | N | 14.9 | 0.47 | 2016-12-19 04:51:03 | 2016-12-19 05:38:00 | n |
| 111437 | IIEES | GIDE | E | 12.3 | 0.59 | 2016-12-19 04:51:10 | 2016-12-19 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-12-19 04:49:01 | 0.24 | y | 186 | 34 | |
| IIEES | KHMZ | N | Sg | E | 2016-12-19 04:49:23 | -0.24 | y | 186 | 34 | |
| IIEES | ASAO | Z | Pn | E | 2016-12-19 04:49:11 | 0.21 | y | 267 | 24 | |
| IIEES | ILBA | Z | Pn | E | 2016-12-19 04:49:13 | -0.19 | y | 284 | 301 | |
| IIEES | GHVR | Z | Pn | E | 2016-12-19 04:49:19 | 0.76 | y | 325 | 43 | |
| IIEES | SNGE | Z | Pn | E | 2016-12-19 04:49:20 | 0.24 | y | 335 | 336 | |
| IIEES | NASN | Z | Pn | E | 2016-12-19 04:49:25 | 0.27 | y | 375 | 81 | |
| IIEES | CHTH | Z | Pn | E | 2016-12-19 04:49:33 | -0.24 | y | 447 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2016-12-19 04:49:36 | 0 | y | 464 | 38 | |
| IIEES | ZNJK | Z | Pn | E | 2016-12-19 04:49:37 | -0.43 | y | 480 | 358 | |
| IIEES | GIDE | Z | Pn | E | 2016-12-19 04:49:42 | 0.04 | y | 517 | 11 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-19 04:49:45 | -0.29 | y | 541 | 88 | |
| IIEES | SHRO | Z | Pn | E | 2016-12-19 04:50:13 | -0.73 | y | 775 | 56 | |
| IIEES | TABS | Z | Pn | E | 2016-12-19 04:50:15 | -0.65 | y | 786 | 77 |
