Magnitude |
3.3 |
| Date & Time (UTC) | 2016-12-22 04:25:51.4 |
| Date & Time (Local) | 1395/10/2 07:55:51.4 |
| Location | Lat:32.899 Lon: 57.528 |
| Region | Yazd Province, 96 km South-East of Tabas |
Nearest Cities |
|
| 23 km South West of Arababad, Yazd Province | |
| 44 km South of Dihuk, Yazd Province | |
| 83 km South East of Kerit, Yazd Province | |
| 83 km North of Hoz-e qorban, Yazd Province | |
| 85 km West of Hur, Khorasan(south) Province | |
| Depth | 8 km |
| Agency | |

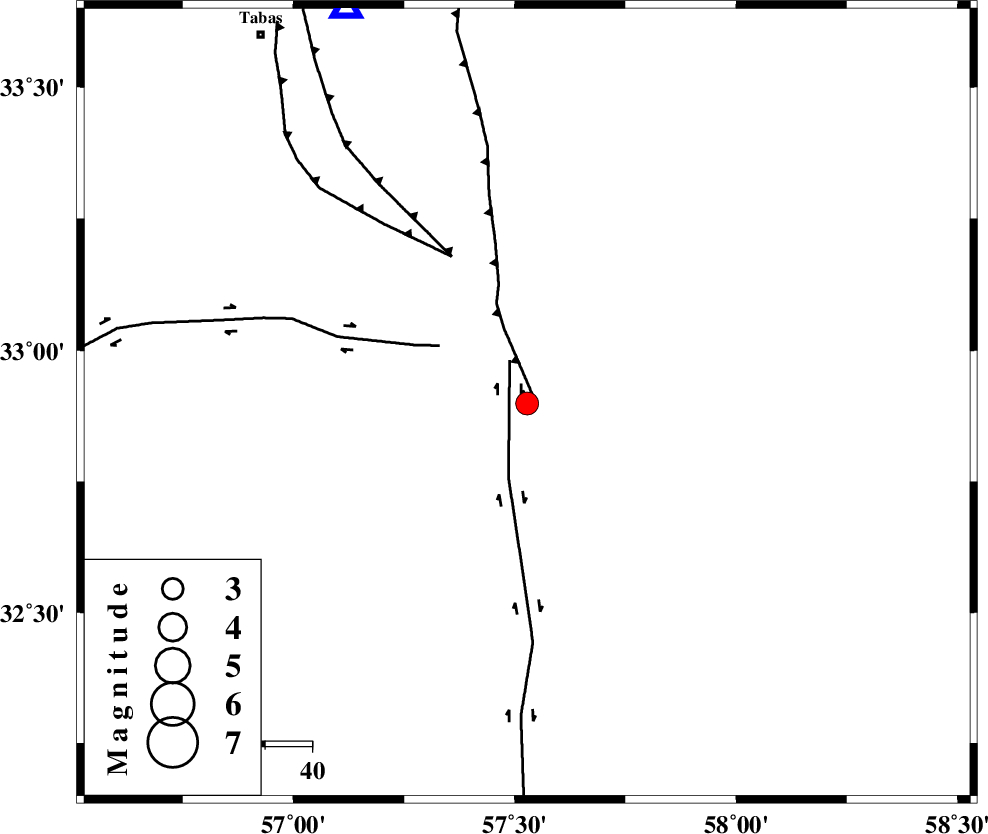

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 2 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 10 km | |
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 22 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 4.4 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111718 | IIEES | YZKH | E | 148 | 0.56 | 2016-12-22 04:27:16 | 2016-12-24 06:20:00 | n |
| 111719 | IIEES | YZKH | N | 95.1 | 0.48 | 2016-12-22 04:27:16 | 2016-12-24 06:20:00 | n |
| 111720 | IIEES | KRBR | E | 69.5 | 0.24 | 2016-12-22 04:27:30 | 2016-12-24 06:20:00 | n |
| 111721 | IIEES | KRBR | N | 65.6 | 0.64 | 2016-12-22 04:27:38 | 2016-12-24 06:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2016-12-22 04:26:07 | 0 | y | 91.5 | 336 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-22 04:26:33 | 0.14 | y | 270 | 71 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-22 04:26:35 | 0.19 | y | 281 | 259 | |
| IIEES | KRBR | Z | Pn | E | 2016-12-22 04:26:41 | -0.23 | y | 331 | 193 | |
| IIEES | SHRO | Z | Pn | E | 2016-12-22 04:26:45 | -0.65 | y | 372 | 338 | |
| IIEES | NASN | Z | Pn | E | 2016-12-22 04:26:55 | 0.17 | y | 442 | 270 | |
| IIEES | MRVT | Z | Pn | E | 2016-12-22 04:27:07 | 0.5 | y | 544 | 346 |
