Magnitude |
3.7 |
| Date & Time (UTC) | 2016-12-28 06:20:52.4 |
| Date & Time (Local) | 1395/10/8 09:50:52.4 |

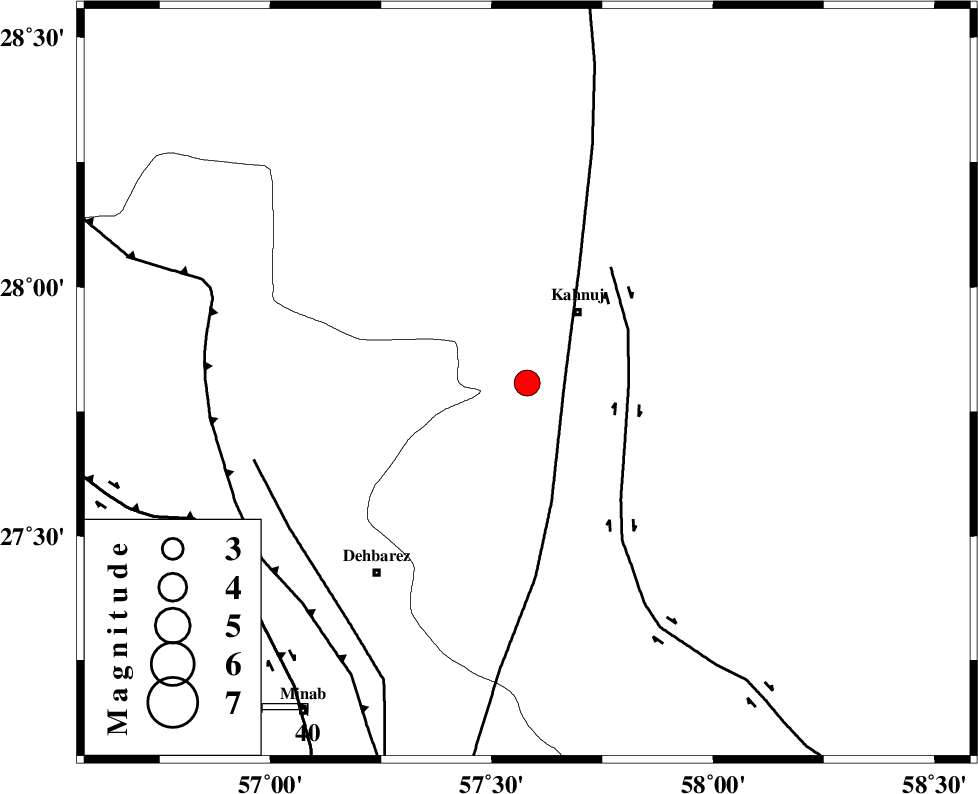

| Location | Lat:27.807 Lon: 57.58 |
| Region | Kerman Province, 19 km South-West of Kahnuj |
Nearest Cities |
|
| 19 km South West of Kahnuj, Kerman Province | |
| 21 km North of Bargah, Kerman Province | |
| 26 km North East of Bejogan, Kerman Province | |
| 30 km East of Fariab, Hormozgan Province | |
| 32 km North East of Nodezh, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 8 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 23 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 62 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111843 | IIEES | BNDS | E | 1206.3 | 0.64 | 2016-12-28 06:21:36 | 2016-12-28 06:54:00 | n |
| 111844 | IIEES | KRBR | N | 573.5 | 0.22 | 2016-12-28 06:22:09 | 2016-12-28 06:54:00 | n |
| 111845 | IIEES | KRBR | E | 424.6 | 0.43 | 2016-12-28 06:22:19 | 2016-12-28 06:54:00 | n |
| 111846 | IIEES | BSRN | E | 37.5 | 0.61 | 2016-12-28 06:23:21 | 2016-12-28 06:54:00 | n |
| 111847 | IIEES | YZKH | E | 16.5 | 0.46 | 2016-12-28 06:23:56 | 2016-12-28 06:54:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2016-12-28 06:21:16 | -0.09 | y | 146 | 252 | |
| IIEES | BNDS | N | Sg | E | 2016-12-28 06:21:34 | 0.05 | y | 146 | 252 | |
| IIEES | KRBR | Z | Pn | E | 2016-12-28 06:21:32 | 0.18 | y | 254 | 342 | |
| IIEES | KRBR | N | Sg | E | 2016-12-28 06:22:04 | -0.13 | y | 254 | 342 | |
| IIEES | ZHSF | Z | Pn | E | 2016-12-28 06:21:45 | -0.3 | y | 371 | 57 | |
| IIEES | BSRN | Z | Pn | E | 2016-12-28 06:22:00 | 0.4 | y | 484 | 18 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-28 06:22:12 | 0.02 | y | 584 | 331 | |
| IIEES | TABS | Z | Pn | E | 2016-12-28 06:22:20 | -0.23 | y | 649 | 356 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-28 06:22:26 | 0.21 | y | 697 | 21 | |
| IIEES | NASN | Z | Pn | E | 2016-12-28 06:22:29 | -0.28 | y | 719 | 321 | |
| IIEES | SHRO | Z | Pn | E | 2016-12-28 06:22:55 | 0.37 | y | 922 | 351 |
