Magnitude |
3.2 |
| Date & Time (UTC) | 2017-02-06 06:32:24.9 |
| Date & Time (Local) | 1395/11/18 10:02:24.9 |

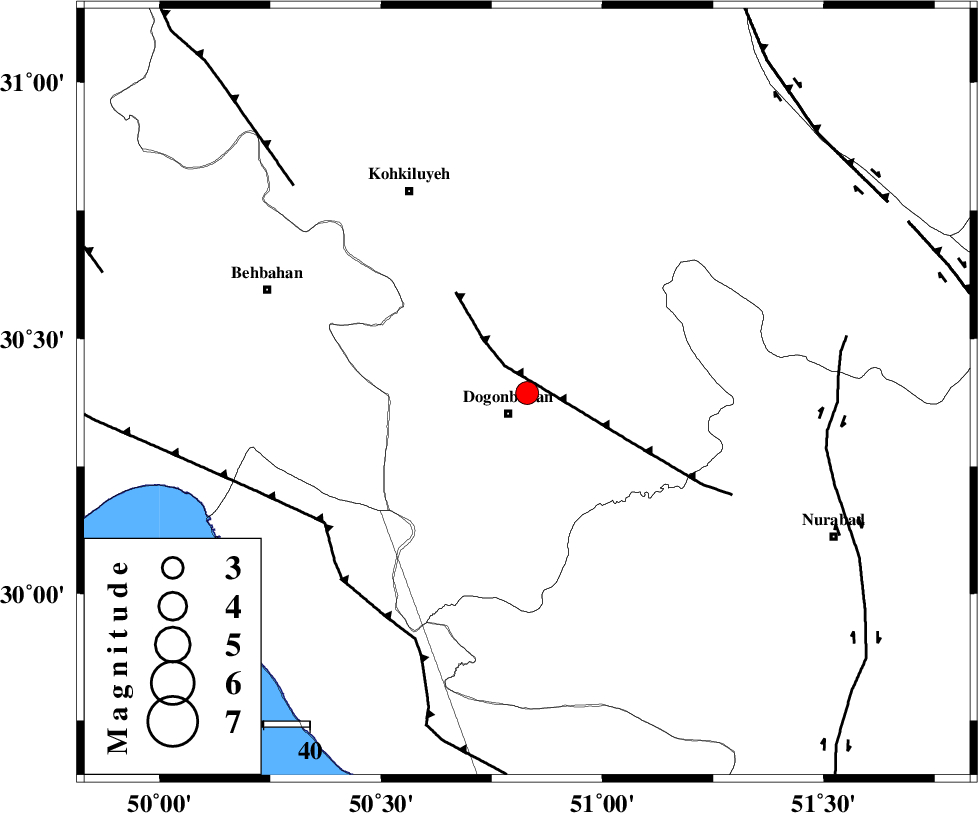

| Location | Lat:30.394 Lon: 50.83 |
| Region | Kohkiluieh va boyerahmad Province, 6 km of Dogonbadan |
Nearest Cities |
|
| 6 km North of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 22 km West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 32 km North West of Basht, Kohkiluieh va boyerahmad Province | |
| 45 km North West of Kopon olia, Fars Province | |
| 51 km South East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 3 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 52 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 52 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | 3.3 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 113052 | IIEES | GHIR | N | 43.7 | 0.33 | 2017-02-06 06:33:51 | 2017-02-06 07:44:00 | n |
| 113053 | IIEES | GHIR | E | 47.4 | 0.66 | 2017-02-06 06:34:11 | 2017-02-06 07:44:00 | n |
| 113054 | IIEES | GHVR | E | 29.3 | 0.62 | 2017-02-06 06:34:22 | 2017-02-06 07:44:00 | n |
| 113055 | IIEES | GHVR | N | 22 | 0.54 | 2017-02-06 06:34:24 | 2017-02-06 07:44:00 | n |
| 113056 | IIEES | ASAO | E | 23.4 | 0.55 | 2017-02-06 06:34:25 | 2017-02-06 07:44:00 | n |
| 113057 | IIEES | ASAO | N | 24.8 | 0.66 | 2017-02-06 06:34:27 | 2017-02-06 07:44:00 | n |
| 113058 | IIEES | KRBR | N | 10.5 | 0.3 | 2017-02-06 06:34:48 | 2017-02-06 07:44:00 | n |
| 113059 | IIEES | KRBR | E | 9.5 | 0.39 | 2017-02-06 06:35:18 | 2017-02-06 07:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2017-02-06 06:32:53 | 0.1 | y | 175 | 165 | |
| IIEES | AHRM | N | Sg | E | 2017-02-06 06:33:15 | 0.2 | y | 175 | 165 | |
| IIEES | GHIR | Z | Pn | E | 2017-02-06 06:33:10 | -1.08 | y | 314 | 138 | |
| IIEES | GHIR | N | S | E | 2017-02-06 06:33:46 | 0.45 | y | 314 | 138 | |
| IIEES | NASN | Z | Pn | E | 2017-02-06 06:33:13 | 0.17 | y | 326 | 35 | |
| IIEES | KHMZ | Z | Pn | E | 2017-02-06 06:33:19 | 0 | y | 380 | 348 | |
| IIEES | GHVR | Z | Pn | E | 2017-02-06 06:33:29 | 0.16 | y | 455 | 5 | |
| IIEES | ASAO | Z | Pn | E | 2017-02-06 06:33:30 | 0.1 | y | 467 | 351 | |
| IIEES | ILBA | Z | Pn | E | 2017-02-06 06:33:42 | 0.06 | y | 565 | 311 | |
| IIEES | KRBR | Z | Pn | E | 2017-02-06 06:33:43 | -0.14 | y | 573 | 93 | |
| IIEES | DAMV | Z | Pn | E | 2017-02-06 06:33:45 | -0.24 | y | 590 | 10 | |
| IIEES | SNGE | Z | Pn | E | 2017-02-06 06:33:49 | 0.03 | y | 615 | 329 | |
| IIEES | BNDS | Z | Pn | E | 2017-02-06 06:33:49 | -0.11 | y | 618 | 121 | |
| IIEES | TABS | Z | Pn | E | 2017-02-06 06:33:59 | 0.37 | y | 695 | 57 |
