Magnitude |
2.7 |
| Date & Time (UTC) | 2017-04-04 08:06:23.5 |
| Date & Time (Local) | 1396/1/15 12:36:23.5 |
| Location | Lat:32.83 Lon: 58.83 |
| Region | Khorasan(south) Province, 38 km -West of Birjand |
Nearest Cities |
|
| 7 km North of Khusef, Khorasan(south) Province | |
| 11 km North of Bisheh bala, Khorasan(south) Province | |
| 29 km North West of Mazhan, Khorasan(south) Province | |
| 38 km West of Birjand, Khorasan(south) Province | |
| 39 km South East of Hur, Khorasan(south) Province | |
| Depth | 16 km |
| Agency | |

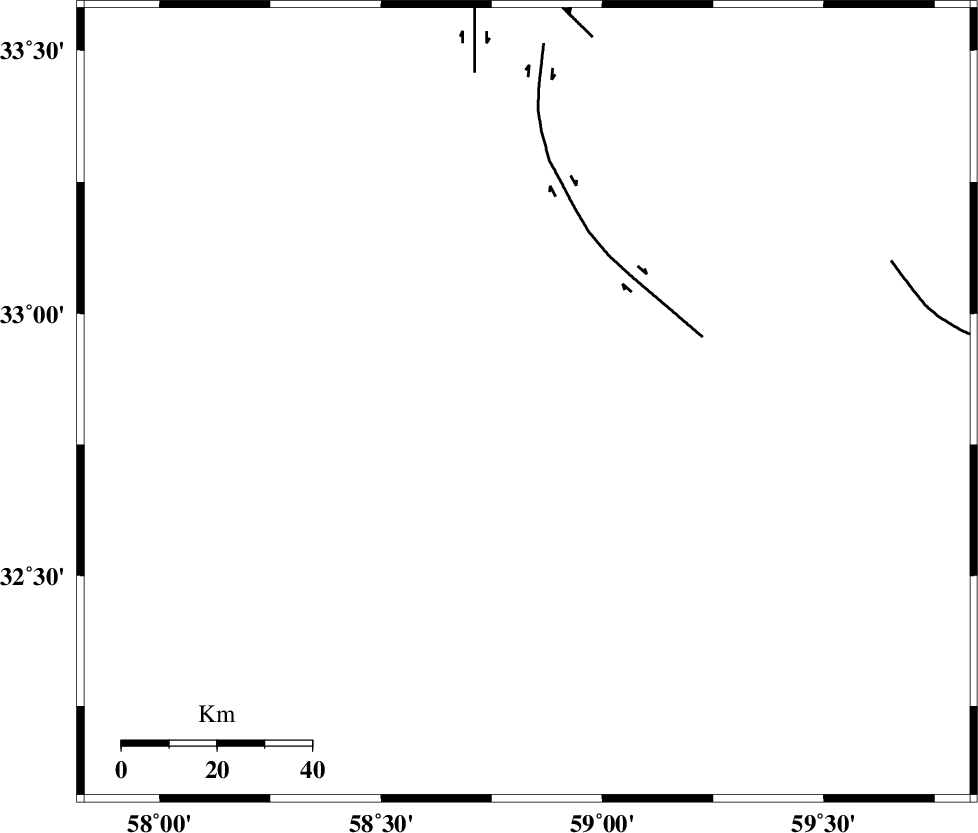

Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 35 km | |
| DUSTABAD_F (Length: 22 km) , Distance to epicenter: 71 km | |
| FERDOWS_F (Length: 101 km) , Distance to epicenter: 78 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | 3.7 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 114523 | IIEES | BSRN | N | 156.6 | 0.31 | 2017-04-04 08:07:00 | 2017-04-05 04:10:00 | n |
| 114524 | IIEES | BSRN | E | 199.2 | 0.63 | 2017-04-04 08:07:00 | 2017-04-05 04:10:00 | n |
| 114525 | IIEES | SHRT | N | 74.9 | 0.63 | 2017-04-04 08:07:12 | 2017-04-05 04:10:00 | n |
| 114526 | IIEES | SHRT | E | 66.7 | 0.44 | 2017-04-04 08:07:13 | 2017-04-05 04:10:00 | n |
| 114527 | IIEES | KRBR | E | 27.8 | 0.7 | 2017-04-04 08:08:23 | 2017-04-05 04:10:00 | n |
| 114528 | IIEES | KRBR | N | 19 | 0.7 | 2017-04-04 08:08:24 | 2017-04-05 04:10:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BSRN | Z | Pg | E | 2017-04-04 08:06:40 | -0.17 | y | 99.9 | 164 | |
| IIEES | SHRT | Z | Pg | E | 2017-04-04 08:06:50 | 0.29 | y | 163 | 56 | |
| IIEES | TABS | Z | Pg | E | 2017-04-04 08:06:53 | -0.56 | y | 184 | 300 | |
| IIEES | TABS | N | Sg | E | 2017-04-04 08:07:16 | 0.44 | y | 184 | 300 | |
| IIEES | KRBR | Z | Pn | E | 2017-04-04 08:07:17 | 0.38 | y | 372 | 212 | |
| IIEES | SHRO | Z | Pn | E | 2017-04-04 08:07:25 | -0.08 | y | 437 | 324 | |
| IIEES | MRVT | Z | Pn | E | 2017-04-04 08:07:43 | -0.46 | y | 591 | 336 |
