Magnitude |
3.3 |
| Date & Time (UTC) | 2017-04-06 19:51:26.9 |
| Date & Time (Local) | 1396/1/18 00:21:26.9 |
| Location | Lat:31.133 Lon: 59.573 |
| Region | Khorasan(south) Province, 63 km South-West of Nehbandan |
Nearest Cities |
|
| 63 km South West of Nehbandan, Khorasan(south) Province | |
| 99 km South West of Shusef, Khorasan(south) Province | |
| 149 km North West of Nosratabad, Sistan va Baloochestan Province | |
| 149 km South East of Mokhtaran, Khorasan(south) Province | |
| 156 km South of Kalateh soleyman, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |

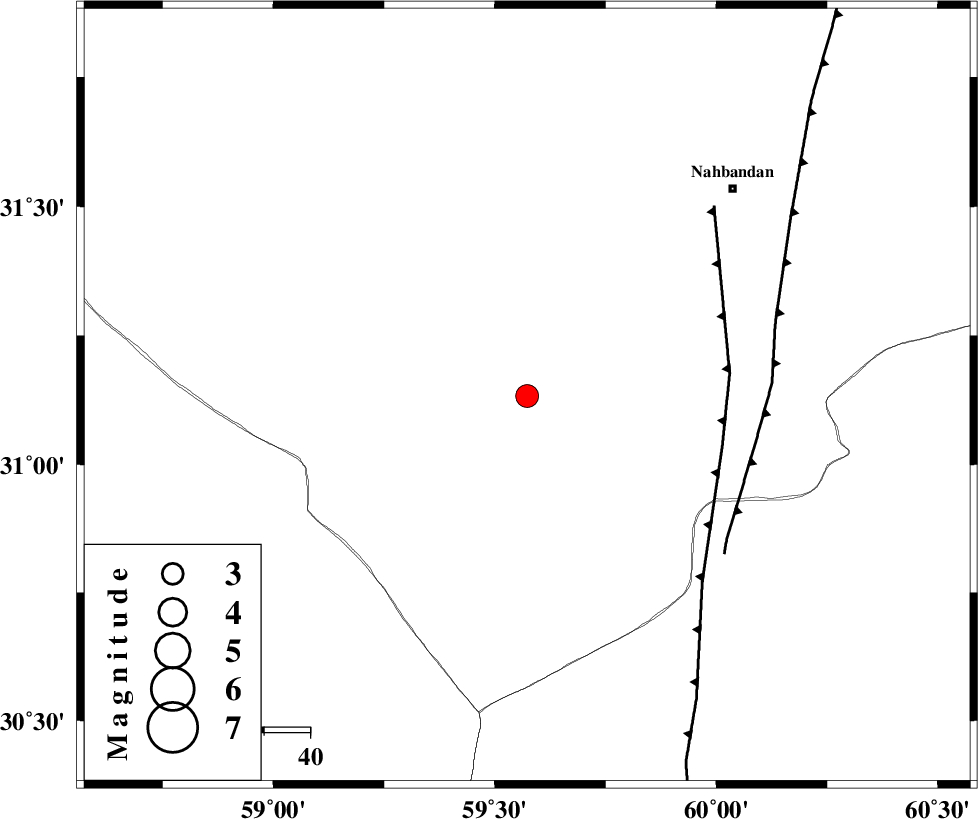

Faults within 150 km: |
|
| W_NEH_F (Length: 158 km) , Distance to epicenter: 43 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 50 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 98 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 3.5 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 114730 | IIEES | KRBR | N | 117.4 | 0.42 | 2017-04-06 19:52:51 | 2017-04-08 07:15:00 | n |
| 114731 | IIEES | KRBR | E | 103 | 0.42 | 2017-04-06 19:53:03 | 2017-04-08 07:15:00 | n |
| 114732 | IIEES | YZKH | N | 21.3 | 0.46 | 2017-04-06 19:53:55 | 2017-04-08 07:15:00 | n |
| 114733 | IIEES | YZKH | E | 19.4 | 0.74 | 2017-04-06 19:53:59 | 2017-04-08 07:15:00 | n |
| 114734 | IIEES | BNDS | N | 24.1 | 0.94 | 2017-04-06 19:54:04 | 2017-04-08 07:15:00 | n |
| 114735 | IIEES | BNDS | E | 10.6 | 0.47 | 2017-04-06 19:54:14 | 2017-04-08 07:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BSRN | Z | Pg | E | 2017-04-06 19:51:44 | -0.16 | y | 102 | 335 | |
| IIEES | BSRN | N | Sg | E | 2017-04-06 19:51:57 | 0.13 | y | 102 | 335 | |
| IIEES | SHRT | Z | Pn | E | 2017-04-06 19:52:10 | -0.01 | y | 287 | 13 | |
| IIEES | KRBR | Z | Pn | E | 2017-04-06 19:52:12 | 0.16 | y | 298 | 245 | |
| IIEES | KRBR | N | Sg | E | 2017-04-06 19:52:51 | -0.09 | y | 298 | 245 | |
| IIEES | TABS | Z | Pn | E | 2017-04-06 19:52:20 | 0.46 | y | 362 | 321 | |
| IIEES | YZKH | Z | Pn | E | 2017-04-06 19:52:36 | 0.08 | y | 492 | 288 | |
| IIEES | BNDS | Z | Pn | E | 2017-04-06 19:52:40 | -0.06 | y | 530 | 219 | |
| IIEES | SHRO | Z | Pn | E | 2017-04-06 19:52:52 | -0.81 | y | 634 | 330 |
