Magnitude |
3.3 |
| Date & Time (UTC) | 2017-04-13 09:41:21.9 |
| Date & Time (Local) | 1396/1/24 14:11:21.9 |

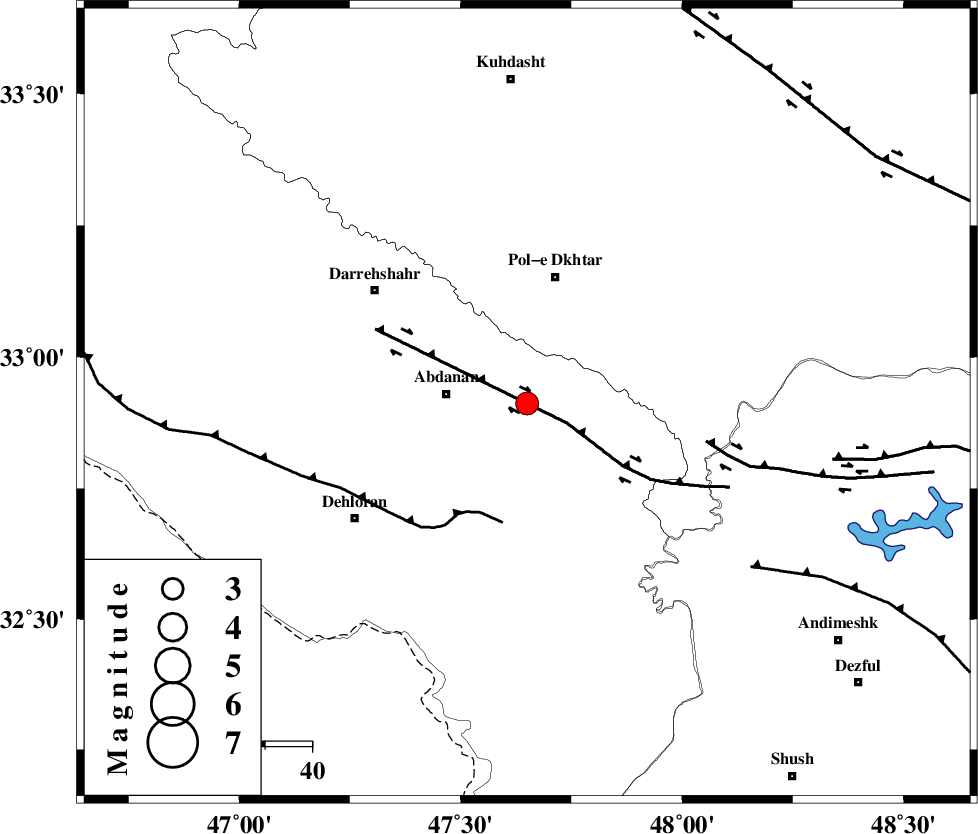

| Location | Lat:32.912 Lon: 47.65 |
| Region | Ilam Province, 17 km -East of Abdanan |
Nearest Cities |
|
| 8 km North of Sarabbagh, Ilam Province | |
| 17 km East of Abdanan, Ilam Province | |
| 21 km South of Sarab hammam, Lorestan Province | |
| 27 km South of Pol-e dokhtar, Lorestan Province | |
| 38 km South of Morani, Lorestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 9 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 39 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 114957 | IIEES | ILBA | E | 758.1 | 0.44 | 2017-04-13 09:42:14 | 2017-04-15 07:21:00 | n |
| 114958 | IIEES | ILBA | N | 385.5 | 0.37 | 2017-04-13 09:42:17 | 2017-04-15 07:21:00 | n |
| 114959 | IIEES | KHMZ | N | 121.1 | 0.43 | 2017-04-13 09:42:33 | 2017-04-15 07:21:00 | n |
| 114960 | IIEES | KHMZ | E | 95.4 | 0.43 | 2017-04-13 09:42:34 | 2017-04-15 07:21:00 | n |
| 114961 | IIEES | SNGE | N | 119.6 | 0.45 | 2017-04-13 09:42:38 | 2017-04-15 07:21:00 | n |
| 114962 | IIEES | SNGE | E | 119.2 | 0.65 | 2017-04-13 09:42:43 | 2017-04-15 07:21:00 | n |
| 114963 | IIEES | ASAO | N | 80.2 | 0.65 | 2017-04-13 09:42:50 | 2017-04-15 07:21:00 | n |
| 114964 | IIEES | GHVR | E | 68.1 | 0.32 | 2017-04-13 09:43:02 | 2017-04-15 07:21:00 | n |
| 114965 | IIEES | AHRM | N | 15.6 | 0.54 | 2017-04-13 09:43:38 | 2017-04-15 07:21:00 | n |
| 114966 | IIEES | AHRM | E | 15.9 | 0.15 | 2017-04-13 09:43:39 | 2017-04-15 07:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-04-13 09:41:47 | 0.01 | y | 156 | 301 | |
| IIEES | KHMZ | Z | Pn | E | 2017-04-13 09:41:58 | 0.12 | y | 234 | 66 | |
| IIEES | SNGE | Z | Pn | E | 2017-04-13 09:41:59 | 0.13 | y | 244 | 353 | |
| IIEES | SNGE | N | Sg | E | 2017-04-13 09:42:30 | -0.01 | y | 244 | 353 | |
| IIEES | ASAO | Z | Pn | E | 2017-04-13 09:42:05 | 0.31 | y | 285 | 50 | |
| IIEES | GHVR | Z | Pn | E | 2017-04-13 09:42:16 | 0.13 | y | 376 | 61 | |
| IIEES | ZNJK | Z | Pn | E | 2017-04-13 09:42:22 | -0.27 | y | 428 | 13 | |
| IIEES | CHTH | Z | Pn | E | 2017-04-13 09:42:26 | -0.41 | y | 461 | 43 | |
| IIEES | NASN | Z | Pn | E | 2017-04-13 09:42:29 | -0.2 | y | 483 | 90 | |
| IIEES | DAMV | Z | Pn | E | 2017-04-13 09:42:31 | 0.12 | y | 499 | 52 | |
| IIEES | AHRM | Z | Pn | E | 2017-04-13 09:42:39 | -0.01 | y | 568 | 141 | |
| IIEES | GHIR | Z | Pn | E | 2017-04-13 09:42:59 | 0.02 | y | 724 | 134 | |
| IIEES | SHRO | Z | Pn | E | 2017-04-13 09:43:13 | -0.32 | y | 841 | 64 |
