Magnitude |
3.6 |
| Date & Time (UTC) | 2017-04-20 15:49:46.0 |
| Date & Time (Local) | 1396/1/31 20:19:46.0 |

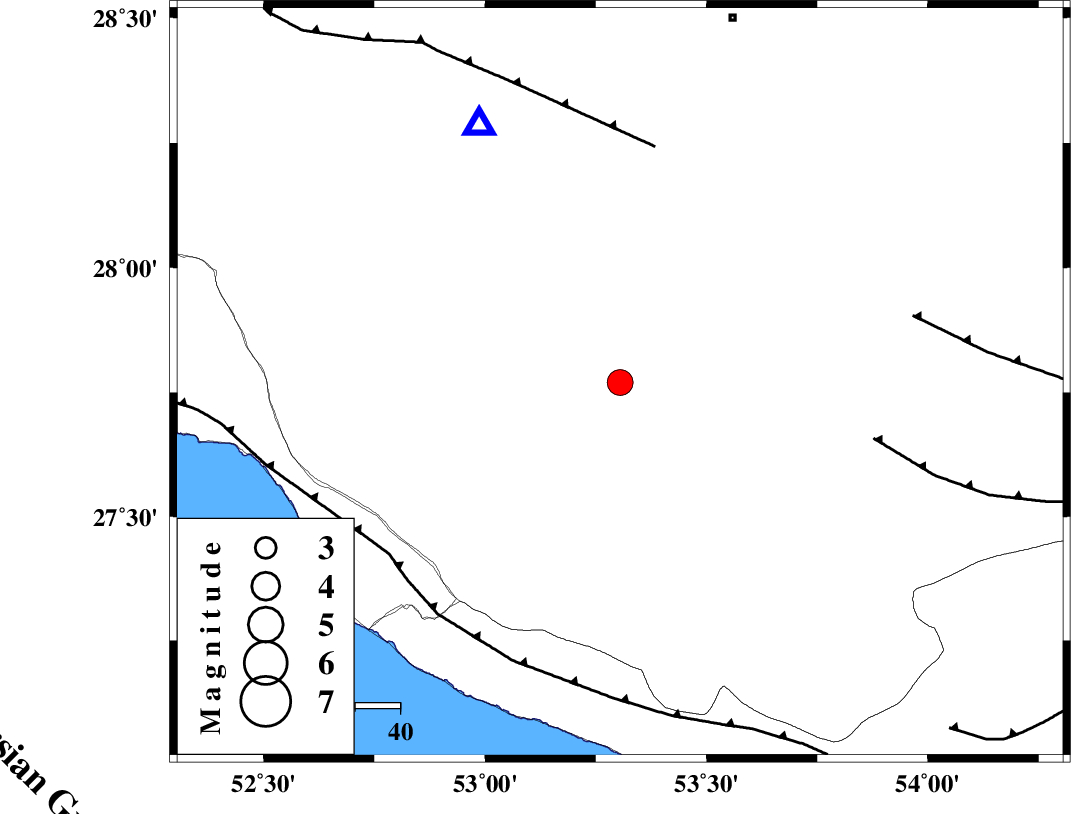

| Location | Lat:27.77 Lon: 53.305 |
| Region | Fars Province, 50 km North-East of Lamerd |
Nearest Cities |
|
| 16 km South West of Khonj, Fars Province | |
| 30 km North West of Fedagh, Fars Province | |
| 32 km North West of Ard, Fars Province | |
| 38 km West of Fishur, Fars Province | |
| 38 km North East of Alamarvdasht, Fars Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 53 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 58 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 64 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 7.4 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115254 | IIEES | GHIR | E | 2691.6 | 0.5 | 2017-04-20 15:50:14 | 2017-04-22 08:29:00 | n |
| 115255 | IIEES | AHRM | N | 339.8 | 0.33 | 2017-04-20 15:51:05 | 2017-04-22 08:29:00 | n |
| 115256 | IIEES | AHRM | E | 277.1 | 0.58 | 2017-04-20 15:51:07 | 2017-04-22 08:29:00 | n |
| 115257 | IIEES | BNDS | N | 219.8 | 0.31 | 2017-04-20 15:51:25 | 2017-04-22 08:29:00 | n |
| 115258 | IIEES | KRBR | N | 66.8 | 0.4 | 2017-04-20 15:51:52 | 2017-04-22 08:29:00 | n |
| 115259 | IIEES | KRBR | E | 97.8 | 0.6 | 2017-04-20 15:51:59 | 2017-04-22 08:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-04-20 15:49:57 | 0 | y | 65.1 | 331 | |
| IIEES | AHRM | Z | Pn | E | 2017-04-20 15:50:22 | -0.02 | y | 231 | 302 | |
| IIEES | BNDS | Z | Pn | E | 2017-04-20 15:50:29 | 0.02 | y | 286 | 98 | |
| IIEES | KRBR | Z | Pn | E | 2017-04-20 15:50:46 | 0.4 | y | 417 | 53 | |
| IIEES | YZKH | Z | Pn | E | 2017-04-20 15:51:00 | 0.36 | y | 527 | 13 | |
| IIEES | NASN | Z | Pn | E | 2017-04-20 15:51:03 | -0.05 | y | 560 | 355 | |
| IIEES | BSRN | Z | Pn | E | 2017-04-20 15:51:24 | -0.84 | y | 730 | 49 | |
| IIEES | TABS | Z | Pn | E | 2017-04-20 15:51:26 | -0.37 | y | 747 | 28 |
