Magnitude |
3.4 |
| Date & Time (UTC) | 2017-04-22 09:58:21.5 |
| Date & Time (Local) | 1396/2/2 14:28:21.5 |

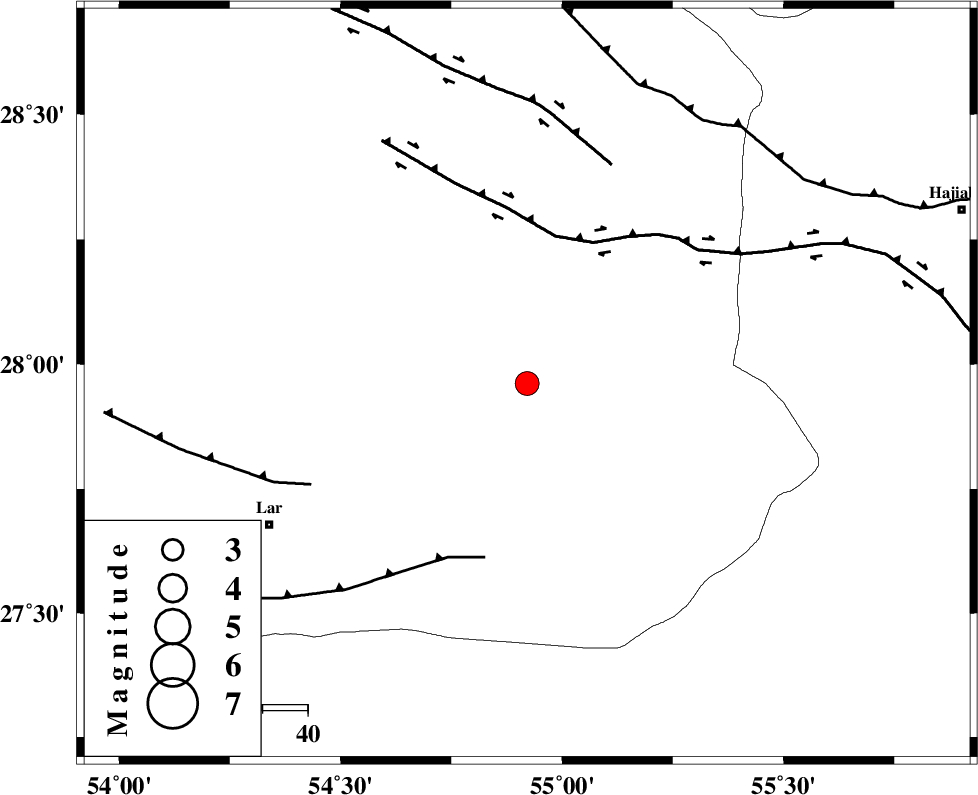

| Location | Lat:27.961 Lon: 54.921 |
| Region | Fars Province, 65 km North-East of Lar |
Nearest Cities |
|
| 38 km South West of Fadami, Fars Province | |
| 47 km South West of Doborji, Fars Province | |
| 50 km North East of Dehkuyeh, Fars Province | |
| 51 km North West of Darz, Fars Province | |
| 56 km South West of Rostaq, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 34 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 40 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 52 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | 7 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115300 | IIEES | GHIR | N | 629.5 | 0.52 | 2017-04-22 09:59:21 | 2017-04-22 10:44:00 | n |
| 115301 | IIEES | GHIR | E | 542.9 | 0.58 | 2017-04-22 09:59:27 | 2017-04-22 10:44:00 | n |
| 115302 | IIEES | KRBR | E | 74 | 0.29 | 2017-04-22 09:59:57 | 2017-04-22 10:44:00 | n |
| 115303 | IIEES | KRBR | N | 105.8 | 0.5 | 2017-04-22 09:59:58 | 2017-04-22 10:44:00 | n |
| 115304 | IIEES | AHRM | N | 75 | 0.59 | 2017-04-22 10:00:15 | 2017-04-22 10:44:00 | n |
| 115305 | IIEES | AHRM | E | 40.4 | 0.42 | 2017-04-22 10:00:16 | 2017-04-22 10:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-04-22 09:58:44 | 0 | y | 138 | 116 | |
| IIEES | GHIR | Z | Pn | E | 2017-04-22 09:58:53 | -0.23 | y | 193 | 281 | |
| IIEES | GHIR | N | Sg | E | 2017-04-22 09:59:17 | 0.35 | y | 193 | 281 | |
| IIEES | KRBR | Z | Pn | E | 2017-04-22 09:59:05 | 0.3 | y | 287 | 38 | |
| IIEES | AHRM | Z | Pn | E | 2017-04-22 09:59:14 | -0.13 | y | 369 | 287 | |
| IIEES | YZKH | Z | Pn | E | 2017-04-22 09:59:30 | 0.13 | y | 492 | 356 | |
| IIEES | NASN | Z | Pn | E | 2017-04-22 09:59:39 | -0.86 | y | 574 | 340 | |
| IIEES | TABS | Z | Pn | E | 2017-04-22 09:59:51 | -0.13 | y | 665 | 18 | |
| IIEES | SHRT | Z | Pn | E | 2017-04-22 10:00:10 | 0.55 | y | 813 | 38 |
