Magnitude |
3.5 |
| Date & Time (UTC) | 2017-04-24 15:18:16.8 |
| Date & Time (Local) | 1396/2/4 19:48:16.8 |

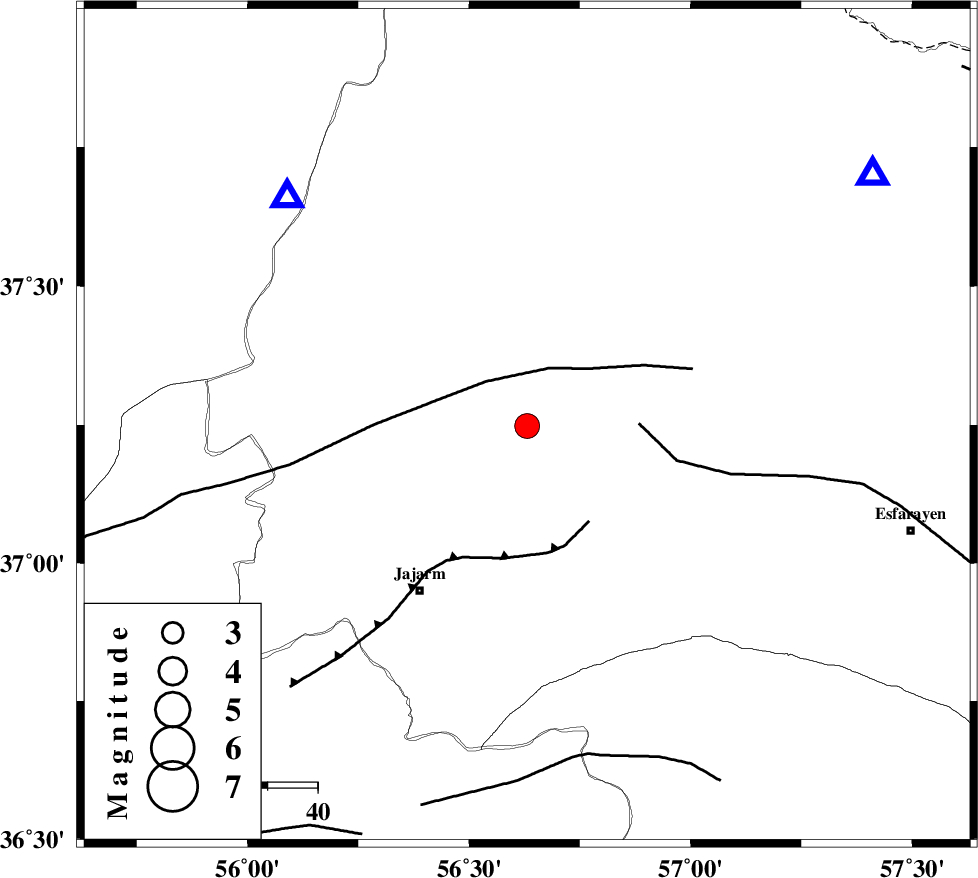

| Location | Lat:37.248 Lon: 56.631 |
| Region | Khorasan(north) Province, 39 km North-East of Jajarm |
Nearest Cities |
|
| 22 km West of Shogan, Khorasan(north) Province | |
| 39 km North East of Jajarm, Khorasan(north) Province | |
| 42 km North East of Garmeh, Khorasan(north) Province | |
| 43 km South West of Ashkhaneh, Khorasan(north) Province | |
| 52 km North West of Cheharborj, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 12 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 22 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 23 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115398 | IIEES | BJRD | E | 1894.4 | 0.39 | 2017-04-24 15:18:49 | 2017-04-26 05:50:00 | n |
| 115399 | IIEES | BJRD | N | 1265.7 | 0.39 | 2017-04-24 15:18:52 | 2017-04-26 05:50:00 | n |
| 115400 | IIEES | TABS | N | 73.8 | 0.56 | 2017-04-24 15:20:22 | 2017-04-26 05:50:00 | n |
| 115401 | IIEES | TABS | E | 44.3 | 0.56 | 2017-04-24 15:20:26 | 2017-04-26 05:50:00 | n |
| 115402 | IIEES | YZKH | N | 12.9 | 0.63 | 2017-04-24 15:21:02 | 2017-04-26 05:50:00 | n |
| 115403 | IIEES | YZKH | E | 20.5 | 0.73 | 2017-04-24 15:21:14 | 2017-04-26 05:50:00 | n |
| 115404 | IIEES | GHVR | E | 33 | 0.76 | 2017-04-24 15:21:19 | 2017-04-26 05:50:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pg | E | 2017-04-24 15:18:28 | 0.13 | y | 66.2 | 314 | |
| IIEES | BJRD | Z | Pg | E | 2017-04-24 15:18:31 | -0.15 | y | 85.1 | 54 | |
| IIEES | SHRO | Z | Pg | E | 2017-04-24 15:18:41 | -0.43 | y | 148 | 202 | |
| IIEES | TABS | Z | Pn | E | 2017-04-24 15:19:15 | 0.63 | y | 402 | 174 | |
| IIEES | CHTH | Z | Pn | E | 2017-04-24 15:19:28 | 0.05 | y | 515 | 255 | |
| IIEES | SHRT | Z | Pn | E | 2017-04-24 15:19:28 | -0.16 | y | 520 | 139 | |
| IIEES | YZKH | Z | Pn | E | 2017-04-24 15:19:35 | 0.09 | y | 570 | 200 | |
| IIEES | GHVR | Z | Pn | E | 2017-04-24 15:19:36 | 0.7 | y | 575 | 239 | |
| IIEES | NASN | Z | Pn | E | 2017-04-24 15:19:39 | 0.1 | y | 604 | 216 | |
| IIEES | BSRN | Z | Pn | E | 2017-04-24 15:19:42 | 0.15 | y | 629 | 158 | |
| IIEES | ZNJK | Z | Pn | E | 2017-04-24 15:19:52 | 0 | y | 710 | 267 | |
| IIEES | KHMZ | Z | Pn | E | 2017-04-24 15:19:52 | -1.31 | y | 719 | 239 |
