Magnitude |
3.3 |
| Date & Time (UTC) | 2017-04-29 17:31:14.6 |
| Date & Time (Local) | 1396/2/9 22:01:14.6 |

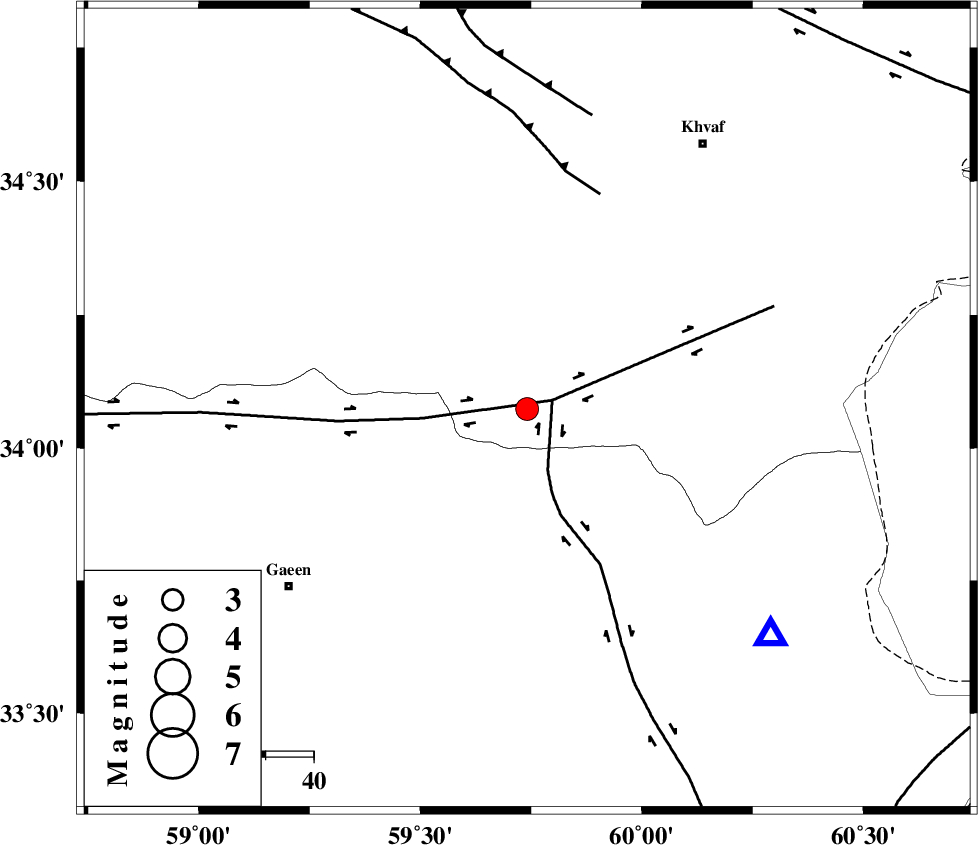

| Location | Lat:34.073 Lon: 59.741 |
| Region | Khorasan(center) Province, 62 km North-East of Qaen |
Nearest Cities |
|
| 25 km South West of Ebrahimi, Khorasan(center) Province | |
| 33 km South West of Zuzan, Khorasan(center) Province | |
| 35 km South West of Qasemabad, Khorasan(center) Province | |
| 36 km West of Pasgah-e chazul, Khorasan(center) Province | |
| 38 km South West of Biasabad, Khorasan(center) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 6 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 6 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 47 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 7 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115503 | IIEES | SHRT | E | 2935.6 | 0.04 | 2017-04-29 17:31:37 | 2017-04-30 05:38:00 | n |
| 115504 | IIEES | SHRT | N | 2584.4 | 0.13 | 2017-04-29 17:31:38 | 2017-04-30 05:38:00 | n |
| 115505 | IIEES | TABS | N | 129.3 | 0.43 | 2017-04-29 17:32:33 | 2017-04-30 05:38:00 | n |
| 115506 | IIEES | SHRO | N | 23.9 | 0.49 | 2017-04-29 17:33:11 | 2017-04-30 05:38:00 | n |
| 115507 | IIEES | SHRO | E | 37.5 | 0.42 | 2017-04-29 17:33:18 | 2017-04-30 05:38:00 | n |
| 115508 | IIEES | YZKH | N | 16.2 | 0.55 | 2017-04-29 17:33:45 | 2017-04-30 05:38:00 | n |
| 115509 | IIEES | YZKH | E | 19.7 | 0.43 | 2017-04-29 17:33:48 | 2017-04-30 05:38:00 | n |
| 115510 | IIEES | KRBR | N | 10.4 | 0.61 | 2017-04-29 17:34:05 | 2017-04-30 05:38:00 | n |
| 115511 | IIEES | KRBR | E | 12 | 0.71 | 2017-04-29 17:34:09 | 2017-04-30 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SHRT | Z | Pg | E | 2017-04-29 17:31:26 | 0 | y | 69.5 | 133 | |
| IIEES | BSRN | Z | Pn | E | 2017-04-29 17:31:52 | 0.03 | y | 241 | 194 | |
| IIEES | TABS | Z | Pn | E | 2017-04-29 17:31:53 | 0.03 | y | 247 | 260 | |
| IIEES | SHRO | Z | Pn | E | 2017-04-29 17:32:12 | -0.19 | y | 402 | 303 | |
| IIEES | YZKH | Z | Pn | E | 2017-04-29 17:32:26 | 0.13 | y | 515 | 250 | |
| IIEES | MRVT | Z | Pn | E | 2017-04-29 17:32:26 | 0.14 | y | 517 | 321 | |
| IIEES | KRBR | Z | P | E | 2017-04-29 17:32:28 | -0.15 | y | 534 | 213 |
