Magnitude |
3.4 |
| Date & Time (UTC) | 2017-04-29 21:56:01.3 |
| Date & Time (Local) | 1396/2/10 02:26:01.3 |

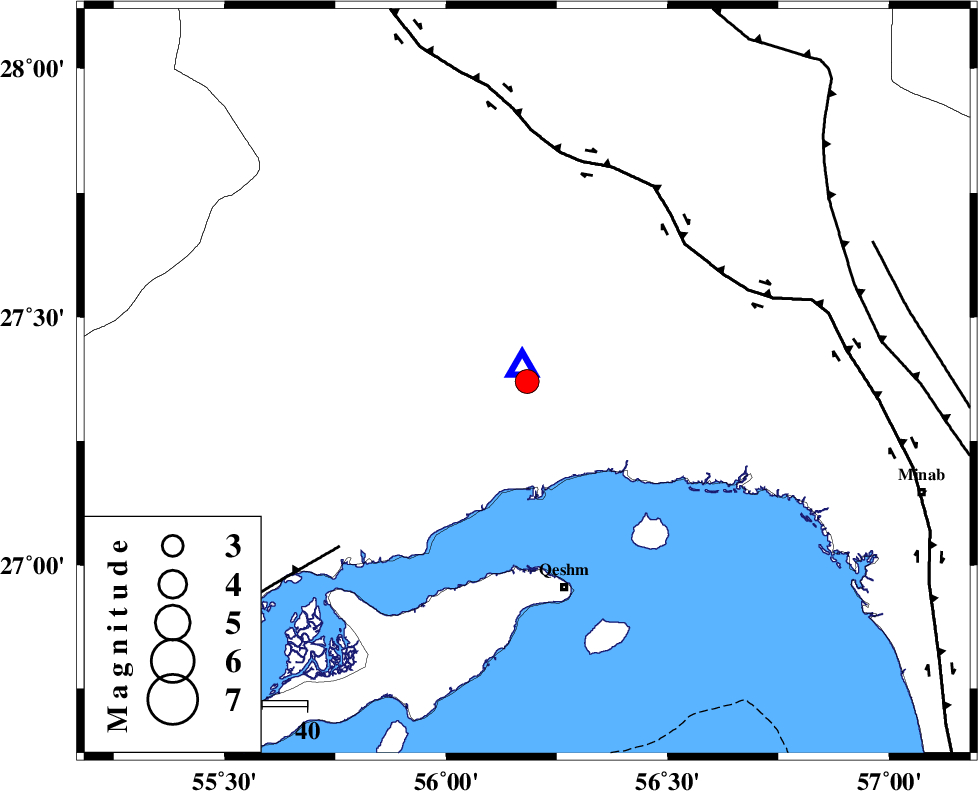

| Location | Lat:27.37 Lon: 56.183 |
| Region | Hormozgan Province, 23 km North of Bandar-e abbas |
Nearest Cities |
|
| 23 km North of Bandar-e abbas, Hormozgan Province | |
| 40 km South East of Fin, Hormozgan Province | |
| 47 km North of Qeshm, Hormozgan Province | |
| 67 km North East of Suza, Hormozgan Province | |
| 72 km South of Fareqan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 47 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 56 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 76 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 7.4 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 1.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115546 | IIEES | BNDS | E | 27743.9 | 0.1 | 2017-04-29 21:56:06 | 2017-04-30 07:13:00 | n |
| 115547 | IIEES | BNDS | N | 24454.6 | 0.15 | 2017-04-29 21:56:06 | 2017-04-30 07:13:00 | n |
| 115548 | IIEES | KRBR | E | 146 | 0.62 | 2017-04-29 21:57:29 | 2017-04-30 07:13:00 | n |
| 115549 | IIEES | KRBR | N | 155.6 | 0.49 | 2017-04-29 21:57:30 | 2017-04-30 07:13:00 | n |
| 115550 | IIEES | GHIR | N | 60.7 | 0.39 | 2017-04-29 21:57:49 | 2017-04-30 07:13:00 | n |
| 115551 | IIEES | GHIR | E | 69.1 | 0.39 | 2017-04-29 21:57:53 | 2017-04-30 07:13:00 | n |
| 115552 | IIEES | YZKH | E | 15.3 | 0.7 | 2017-04-29 21:58:22 | 2017-04-30 07:13:00 | n |
| 115553 | IIEES | YZKH | N | 9.4 | 0.47 | 2017-04-29 21:58:22 | 2017-04-30 07:13:00 | n |
| 115554 | IIEES | BSRN | E | 8.4 | 0.53 | 2017-04-29 21:58:51 | 2017-04-30 07:13:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-04-29 21:56:04 | -0.08 | y | 3.45 | 340 | |
| IIEES | BNDS | N | Sg | E | 2017-04-29 21:56:06 | 0.06 | y | 3.45 | 340 | |
| IIEES | KRBR | Z | Pn | E | 2017-04-29 21:56:45 | 0.04 | y | 295 | 11 | |
| IIEES | GHIR | Z | Pn | E | 2017-04-29 21:56:50 | 0.05 | y | 331 | 289 | |
| IIEES | ZHSF | Z | Pn | E | 2017-04-29 21:57:10 | -2.29 | n | 4 | 514 | 60 |
| IIEES | YZKH | Z | Pn | E | 2017-04-29 21:57:20 | -0.14 | y | 577 | 345 | |
| IIEES | BSRN | Z | Pn | E | 2017-04-29 21:57:21 | 0.05 | y | 584 | 29 |
